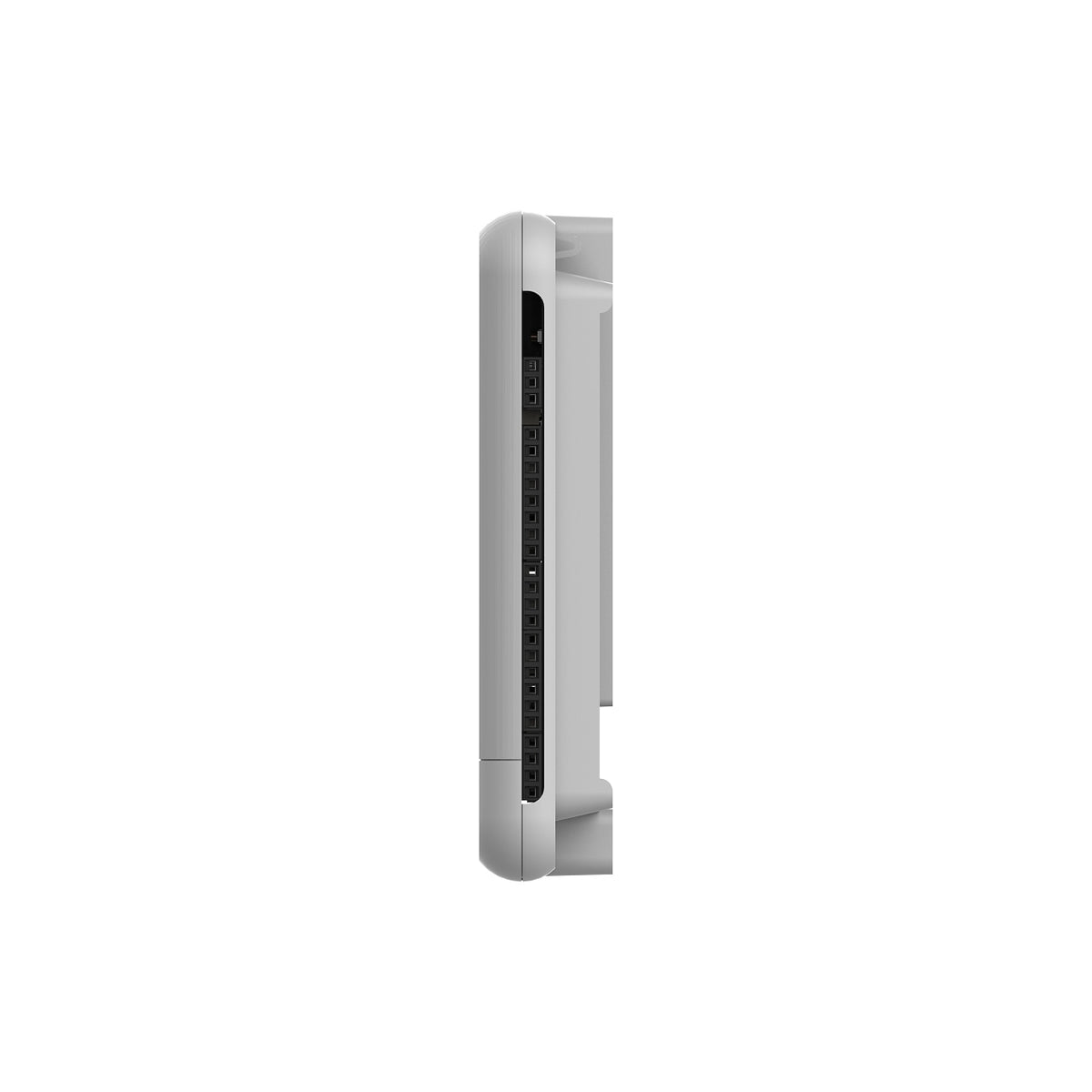

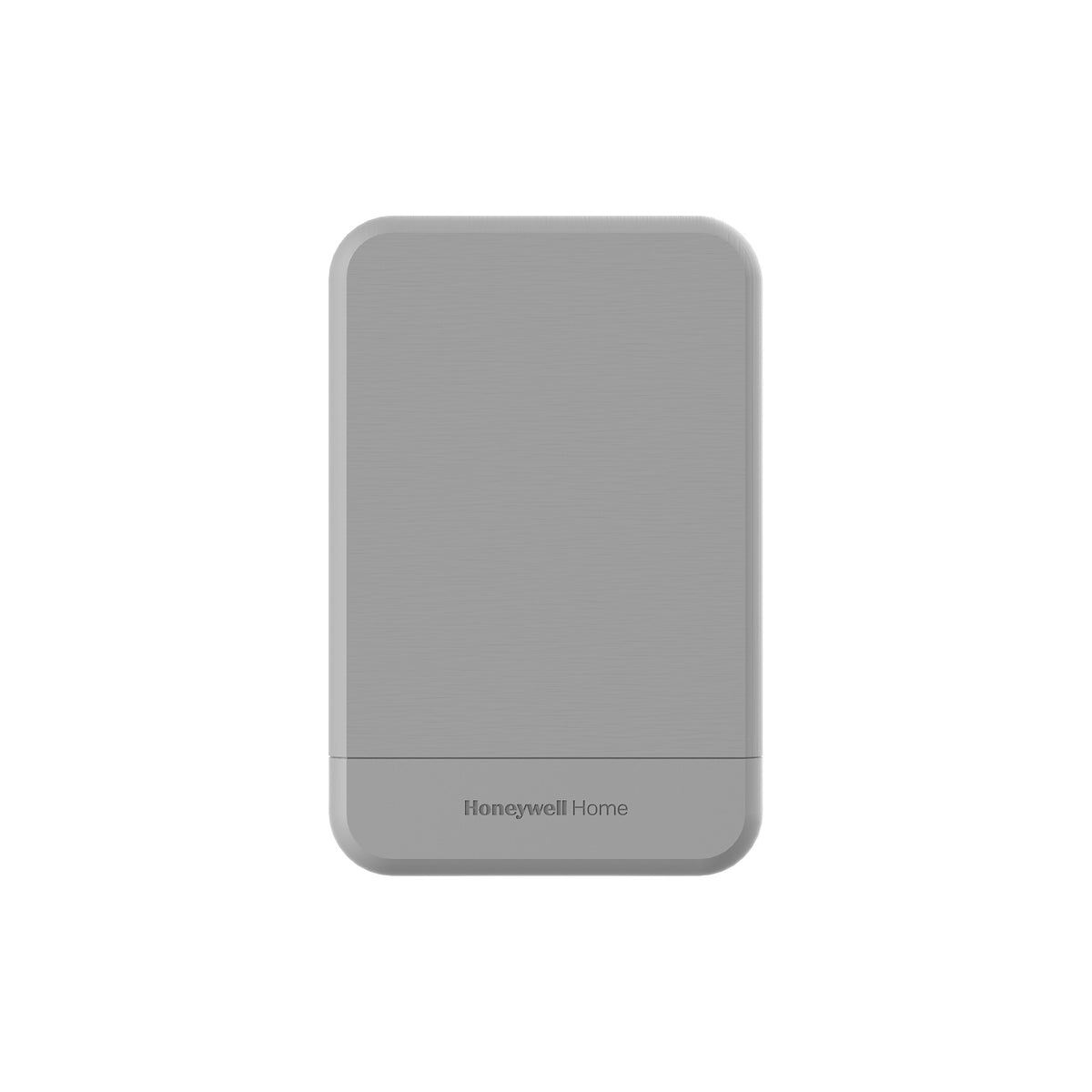

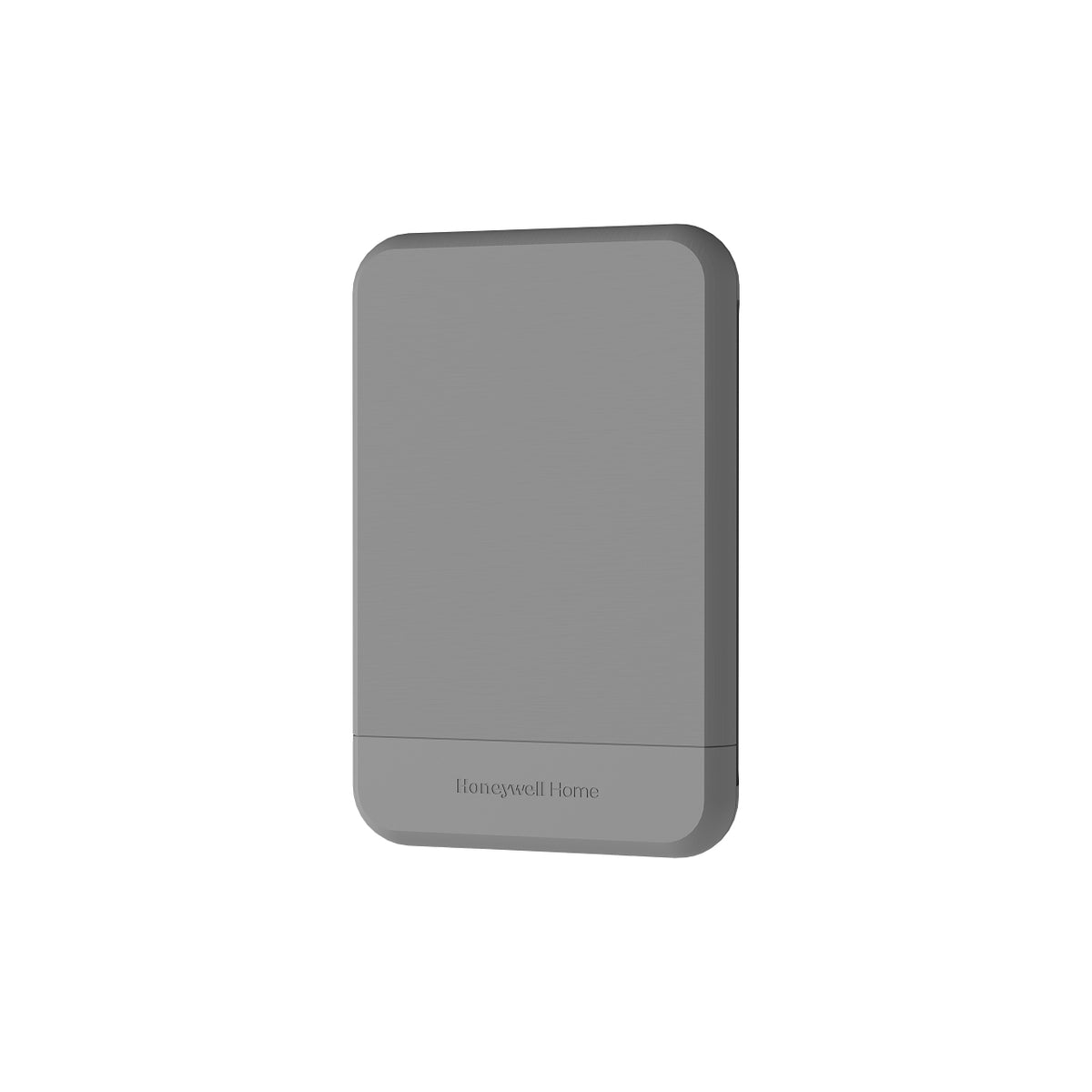

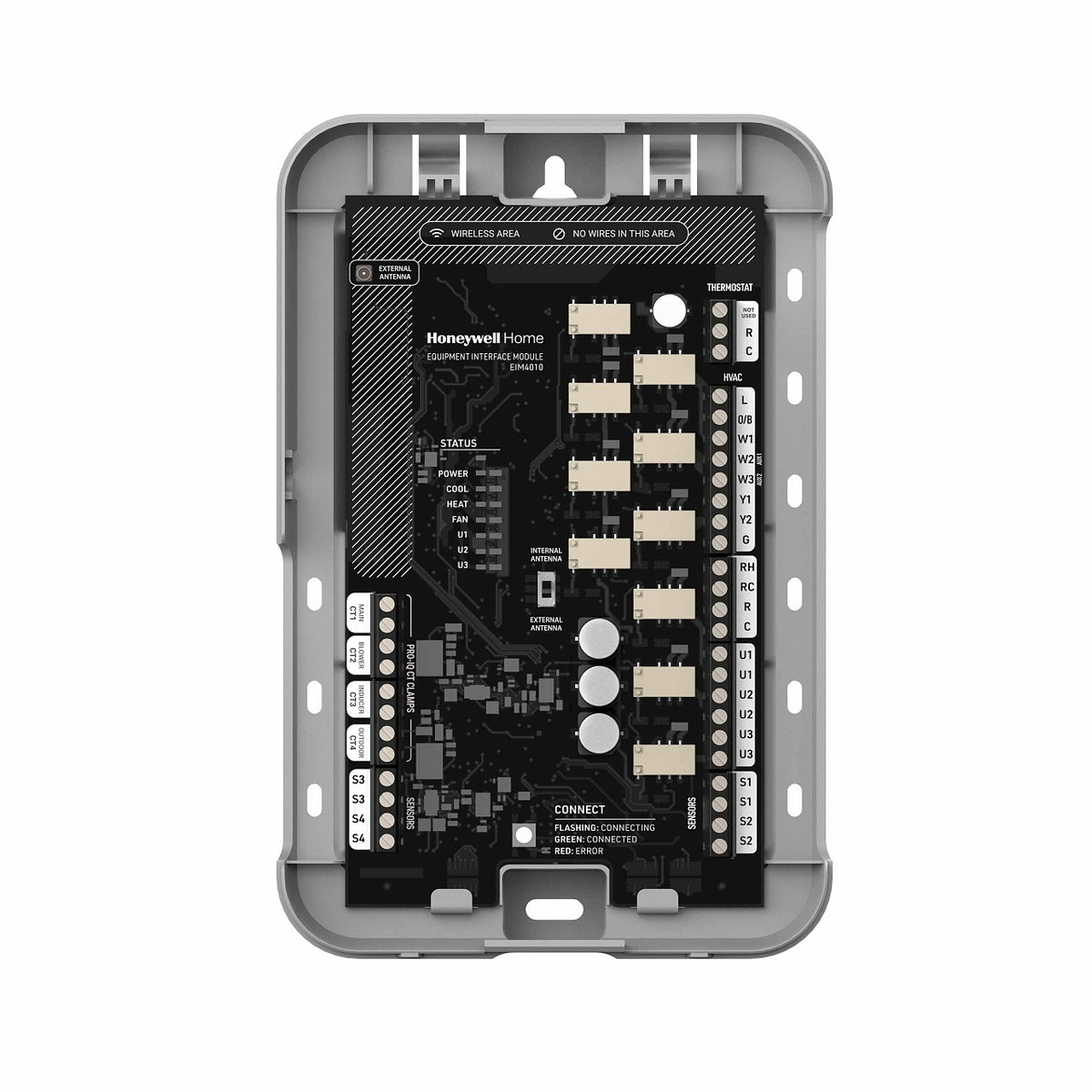

Honeywell Home EIM4010/U Enhanced Equipment Interface Module

Item #: HONE-EIM4010/U
Mfr. part #: EIM4010/U
UPC: 194159019317

Key specifications

ConnectionScrew Terminals
ColorGray
Number of LEDs8

View all specifications

$130.17

Free shipping on orders $99+
30-day returns on unused items. Details
Secure checkout

Need help with this part?

(404) 678-9908 Chat with a product specialist Request a quote

Brand	Honeywell Home
Manufacturer part #	EIM4010/U
Application	The EIM is installed in the equipment room and communicates wirelessly to the thermostat. Makes equipment upgrades easy by wiring extra heat/cool stages to EIM rather than running those wires to the thermostat location.
Includes	Equipment Interface Module (EIM), Installer Guide
Product Height	8.08 in, 205 mm
Product Length	1.59 in, 41 mm
Product Width	5.36 in, 136 mm
Color	Gray
Ambient Operating Temperature (Max)	165 °F, 74 °C
Ambient Operating Temperature (Min)	-40 °F, -40 °C
Connection Type	Screw Terminals
Electrical Ratings	20 to 30 V AC
For Use With	ElitePRO S1000, S1100, S1200 and T10+ Pro Smart Redlink 3.0 thermostats
Number of LEDs	8
UPC	194159019317

Enhanced equipment interface module.

Specifications

Brand: Resideo (Honeywell Home)
Manufacturer Part #: EIM4010/U
Application: The EIM is installed in the equipment room and communicates wirelessly to the thermostat. Makes equipment upgrades easy by wiring extra heat/cool stages to EIM rather than running those wires to the thermostat location.
Includes: Equipment Interface Module (EIM), Installer Guide
Product Height: 8.08 in, 205 mm
Product Length: 1.59 in, 41 mm
Product Width: 5.36 in, 136 mm
Color: Gray
Ambient Operating Temperature (Max): 165 °F, 74 °C
Ambient Operating Temperature (Min): -40 °F, -40 °C
Connection Type: Screw Terminals
Electrical Ratings: 20 to 30 V AC
For Use With: ElitePRO S1000, S1100, S1200 and T10+ Pro Smart Redlink 3.0 thermostats
Number of LEDs: 8
UPC: 194159019317
Country of Origin: MX
Category: Thermostat Accessories
