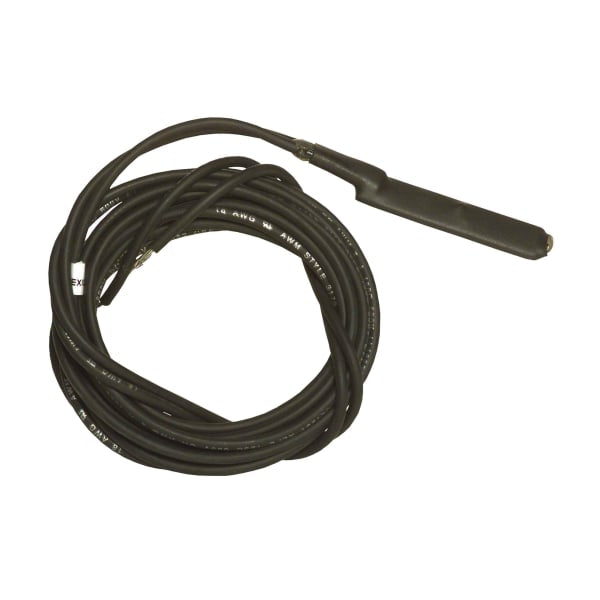

Resideo C7089U1006/U C7089U1006 Remote Outdoor Temperature Sensor

The C7089U1006 is a remote outdoor temperature sensor from Resideo (Honeywell Home), wired.

Outdoor temperature is what lets a control do anything smarter than react. It sets the balance point where a heat pump hands over to auxiliary heat, it drives outdoor reset on hydronic equipment, and it puts a real reading on the display instead of one pulled from the internet for the nearest airport.

Rated -40 F to +120 F — it is meant to live outside. Mount it on a north wall, out of the sun; a sensor in afternoon light reports a temperature the building never sees.

This is the wired version. It needs a run back to the thermostat or controller; the RedLINK equivalents do the same job over the air where pulling wire is the expensive part.

Compatible with: Honeywell thermostats including the TH8000 series RedLINK and Wi-Fi, TH7000 series, TH6220 and TH6320 (T6 Pro series), TH6220WF and TH6320WF (Lyric T6 Pro series); and controllers such as the HZ432 zone panel and the H6062 HumidiPRO controller.

Goes with: C7089R1013.

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: C7089U1006/U
• Type: Wired remote outdoor temperature sensor
• Operating temperature: -40 F to +120 F
• Operating humidity: 5 to 95% RH, non-condensing
• Used with: Honeywell thermostats including the TH8000 series RedLINK and Wi-Fi, TH7000 series, TH6220 and TH6320 (T6 Pro series), TH6220WF and TH6320WF (Lyric T6 Pro series); and controllers such as the HZ432 zone panel and the H6062 HumidiPRO controller
• Mounting: Mounting Clip provided and screws provided.
• UPC: 085267256834
• Category: Thermostat Accessories
