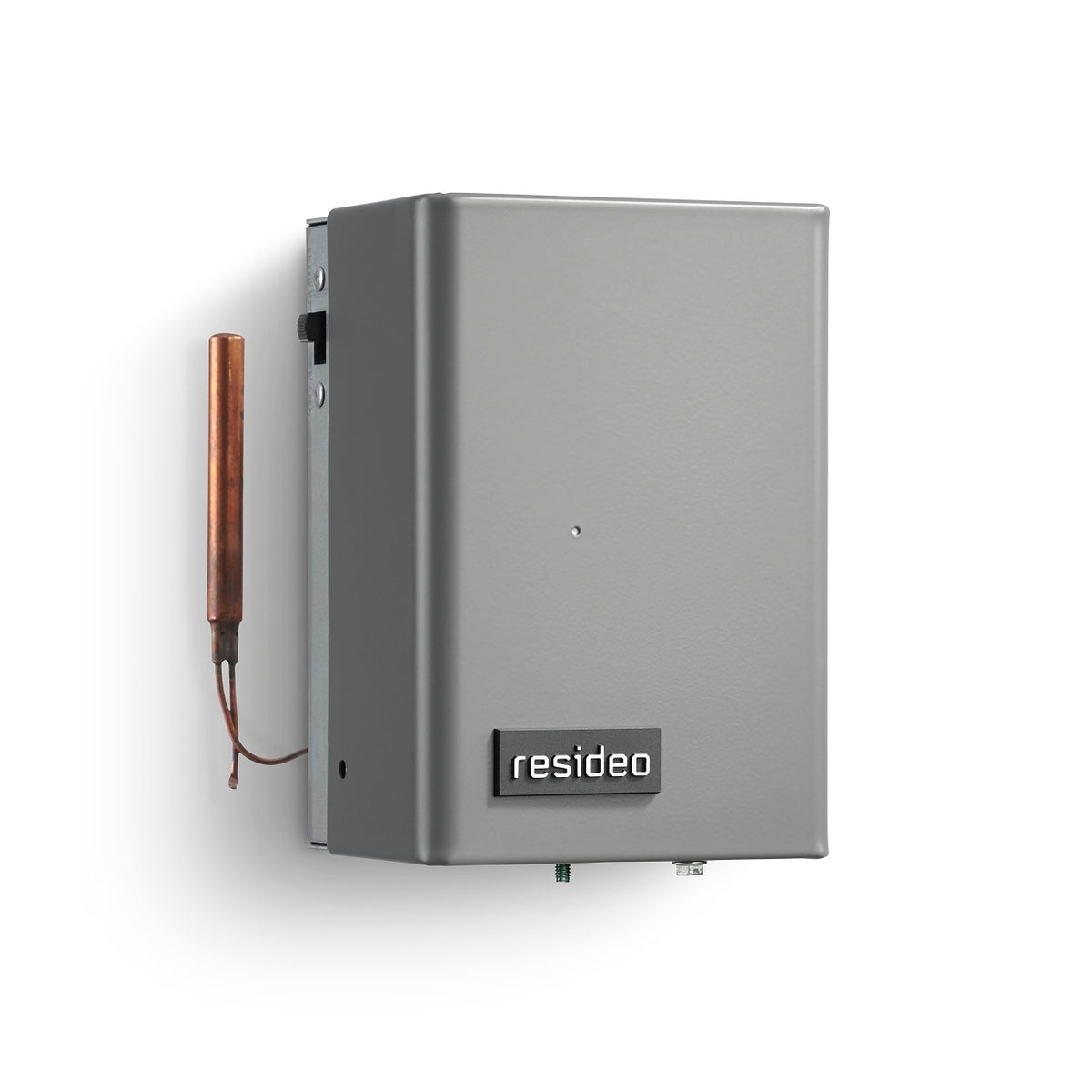

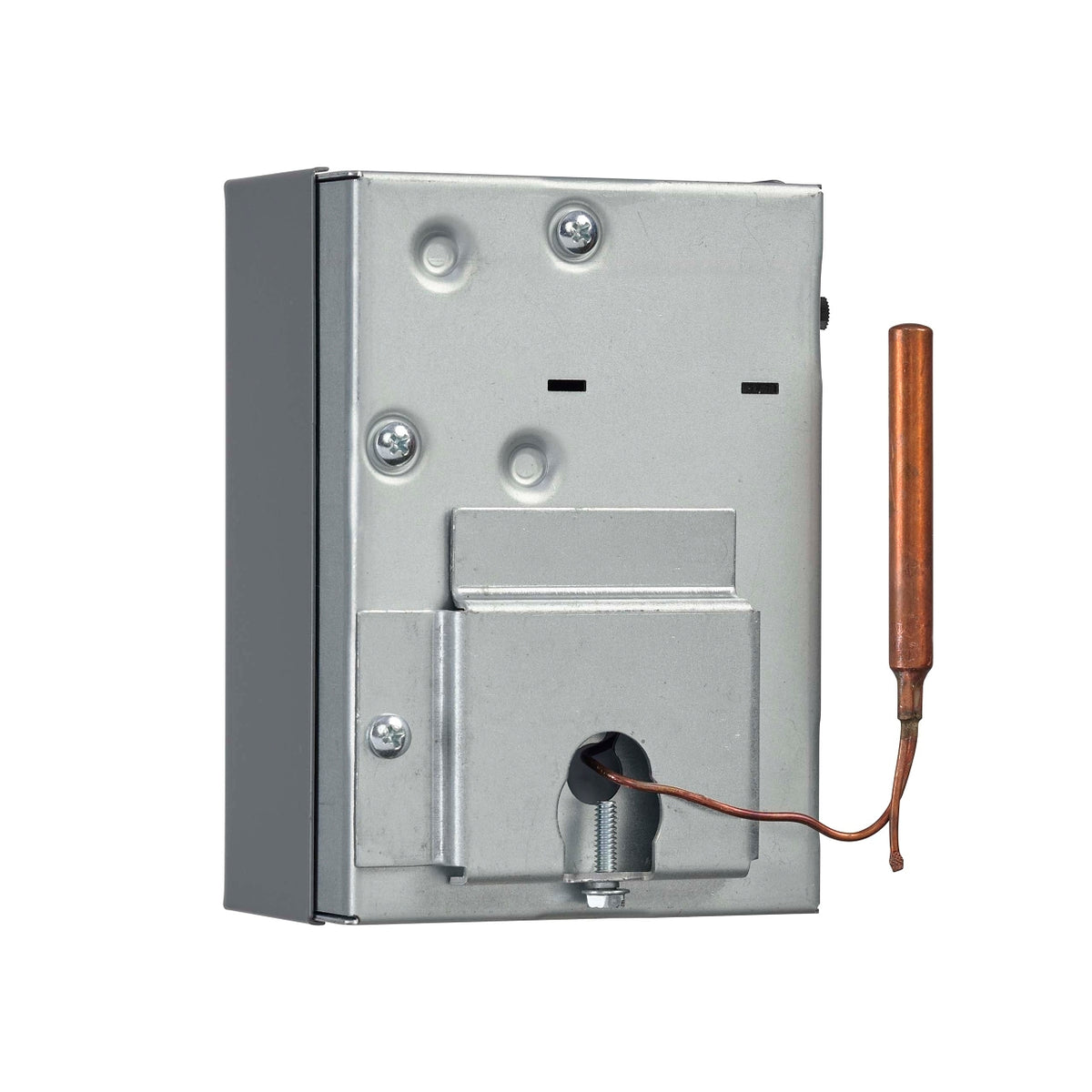

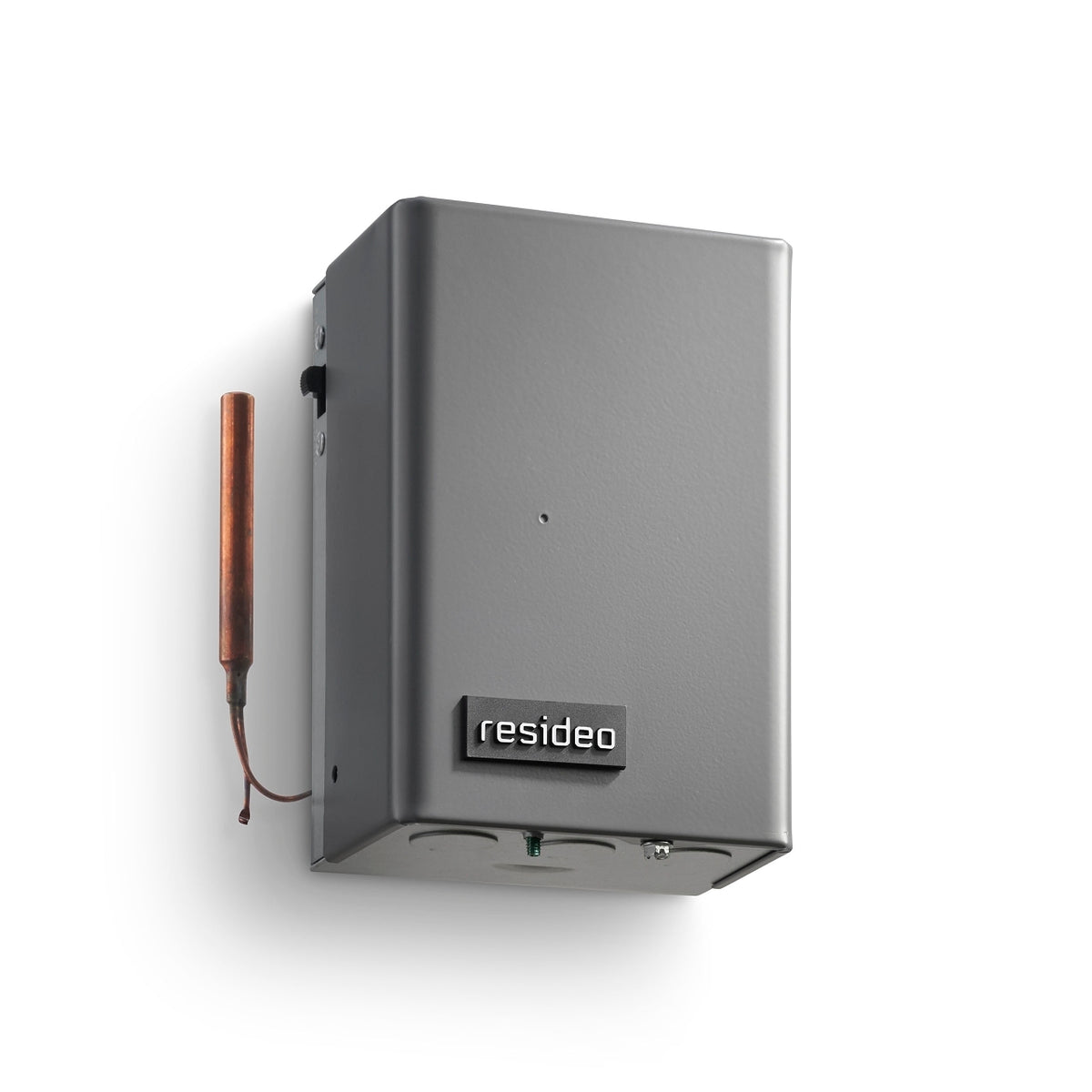

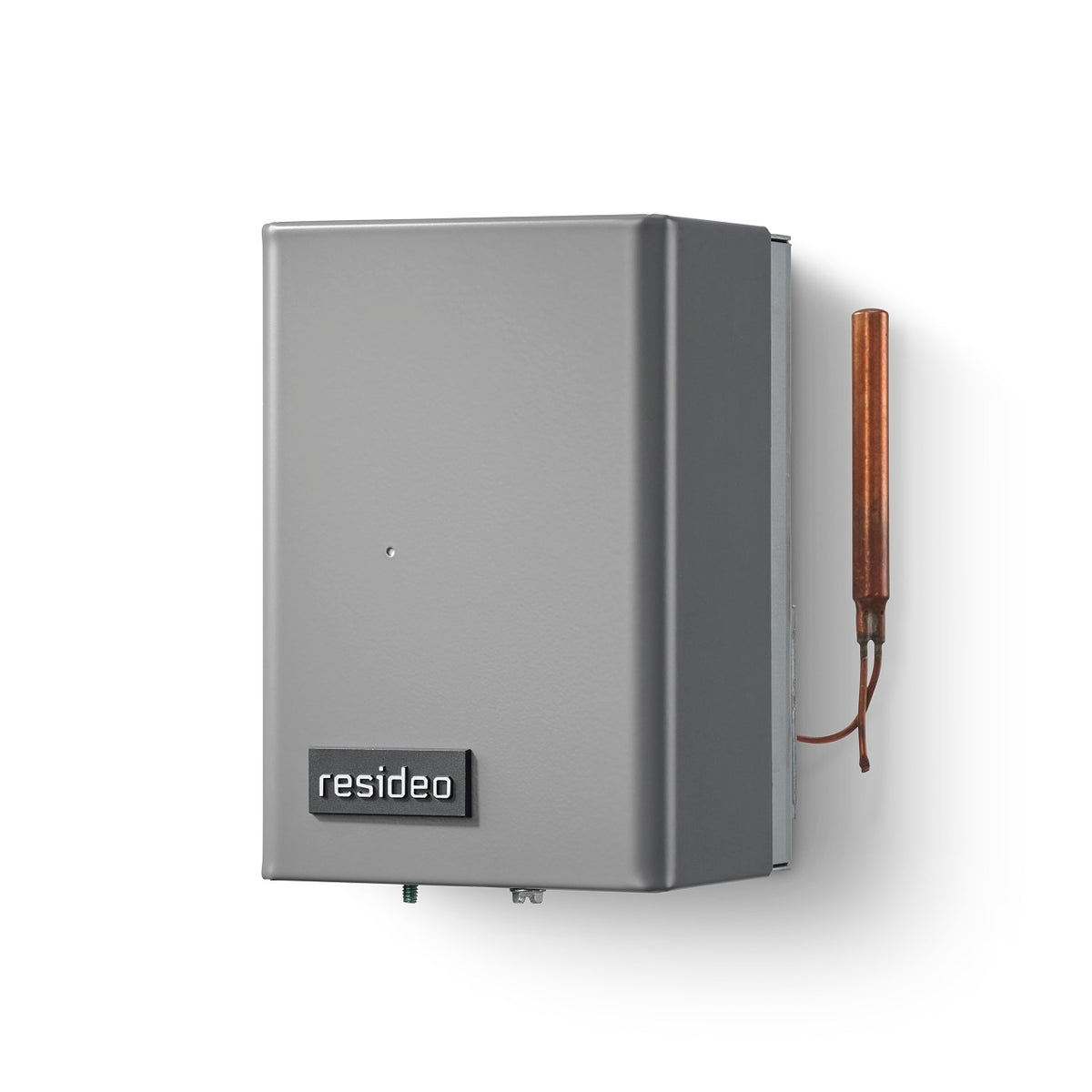

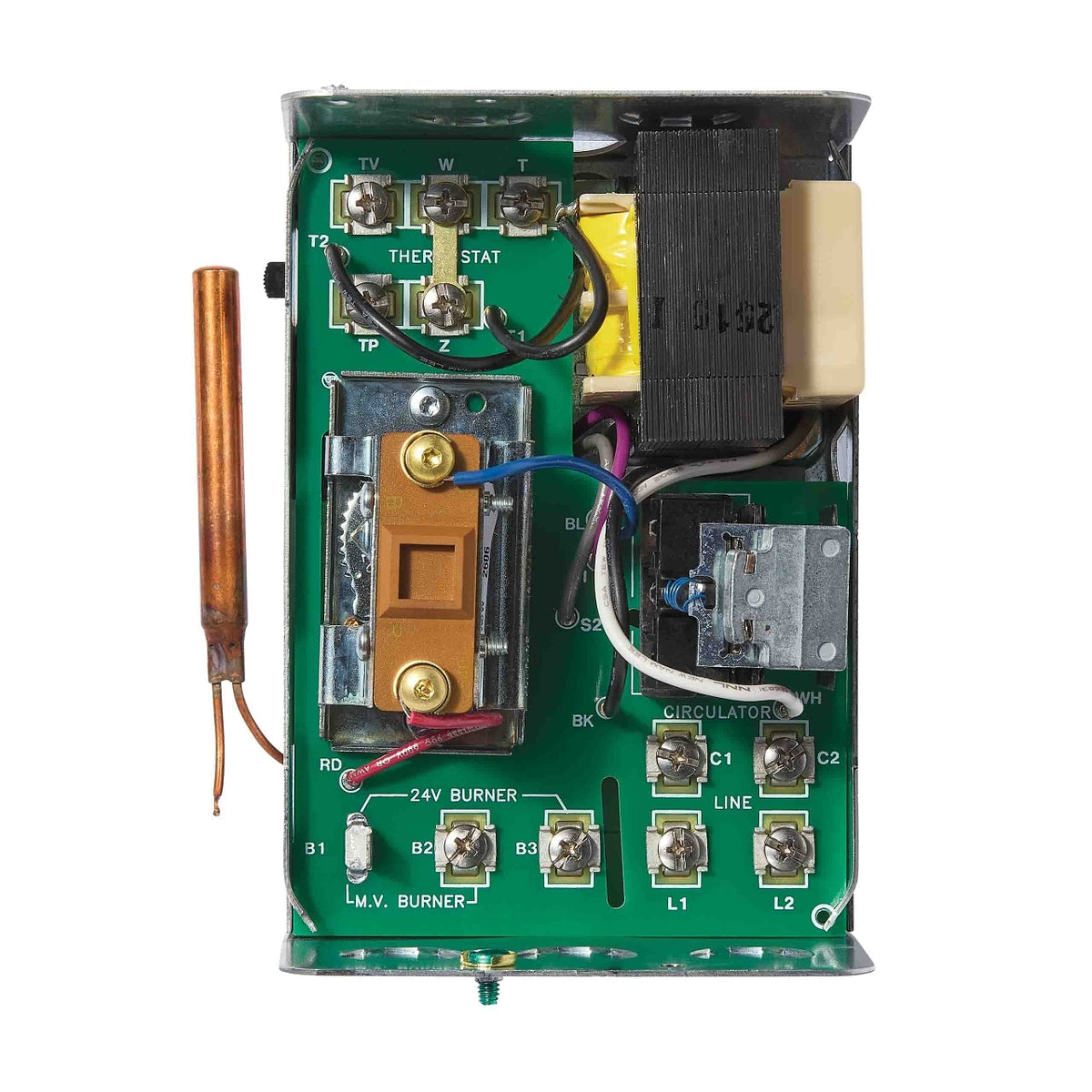

Resideo L8148J1009/U Aquastat Control, 140–240°F, 120 VAC, Universal Mount, Less Well

Aquastat control, 120 V 60 Hz, 140–240°F range with factory-set stop and universal mount, supplied less well with heat conductive compound.

Features

• High limit opens burner circuit only
• Select models include transformer and accessory terminals for adding a remote low limit controller
• Case available for horizontal or vertical mounting
• Requires a 24 Vac thermostat with heat anticipator set at 0.2A
• TRADELINE models include well adapter, tube of heat conductive compound and range stops

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: L8148J1009/U
• Application: Combination Aquastat Relay for use with either Low Voltage or Power Pile Gas Valves
• Approvals and Standards: UL Listed (models with well): File No. MP466, Guide No. MBPR, CSA Certified: File No. LR1620, Guide No. 400-E-O
• Color: Gray
• Compatible With: Hot Water, Hydronic Heating Systems
• Includes: 50 VA transformer, Heat Conductive Compound
• Mounting Type: Horizontal Mount, Vertical Mount
• Differential Temperature: 8 °F Fixed
• High Limit Set point Temperature (Min): 120 °F, 54 °C
• High Limit Set point Temperature (Max): 240 °F, 116 °C
• Electrical Connection Type: Quick-Connect / Screw
• Electrical Ratings at Full Load: 7.4 A at 120 V AC, 3.7 A at 240 V AC
• Electrical Ratings at Locked Rotor: 44.4 A at 120 V AC, 22.2 A at 240 V AC
• Electrical Ratings Millivolt: At Locked Rotor-- 0.25 A at 1/4 to 12 V DC
• Operating Frequency: 60 Hz
• Operating Pressure (Max): 255 psi Immersion Well, 1757 kPa Immersion Well
• Operating Voltage: 120 V AC
• Switch Type: SPST: High Limit and Circulator
• Insulation Depth: 1.5 in to 3 in, 38 mm to 76 mm
• Capillary Length: 4 1/2 in
• Product Height: 6.13 in, 156 mm
• Product Length: 4.31 in, 110 mm
• Product Width: 3.13 in, 79 mm
• Hazmat Information: Dangerous Goods in Excepted Quantities
• UPC: 085267055239
• Country of Origin: US
• Category: Aquastats & Wells
