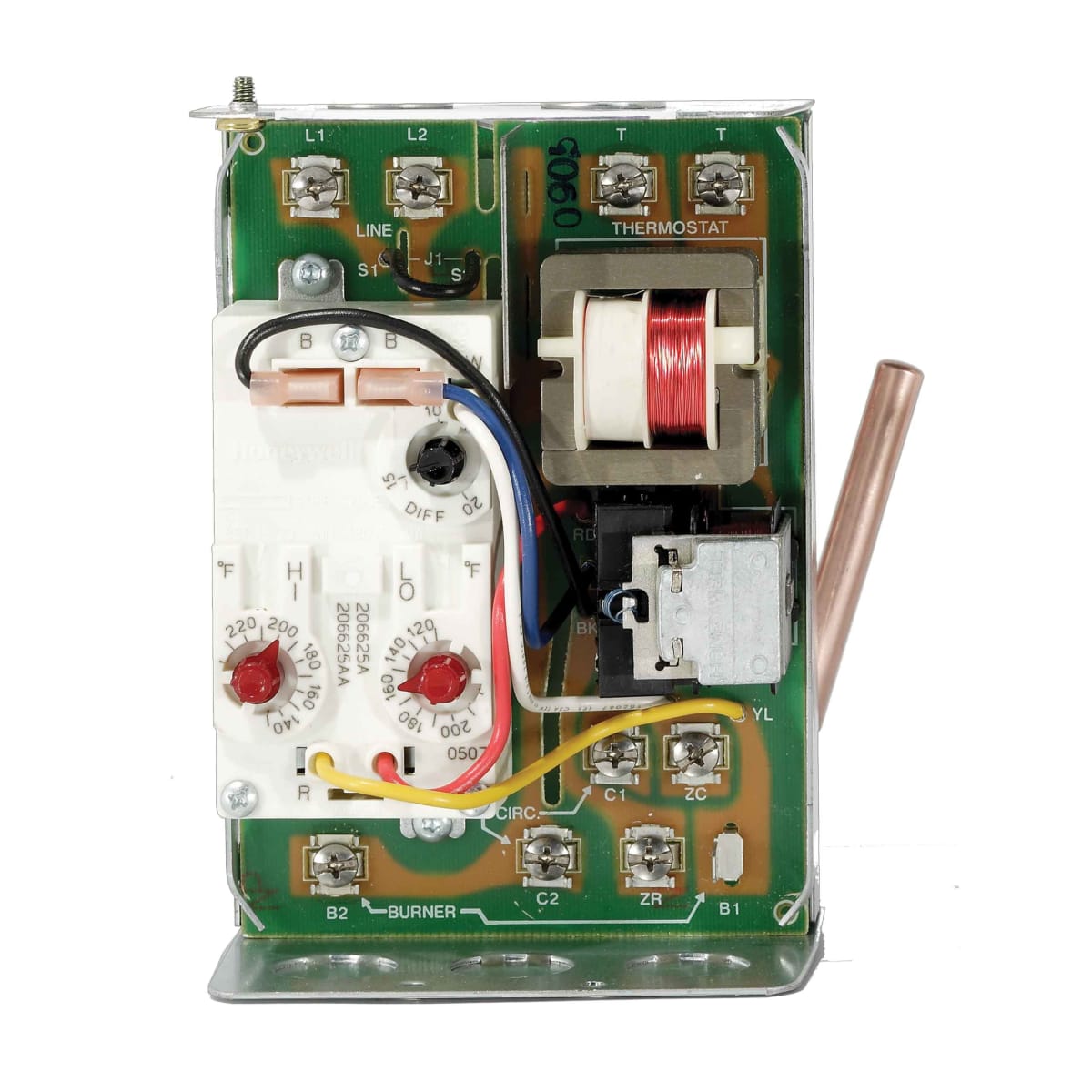

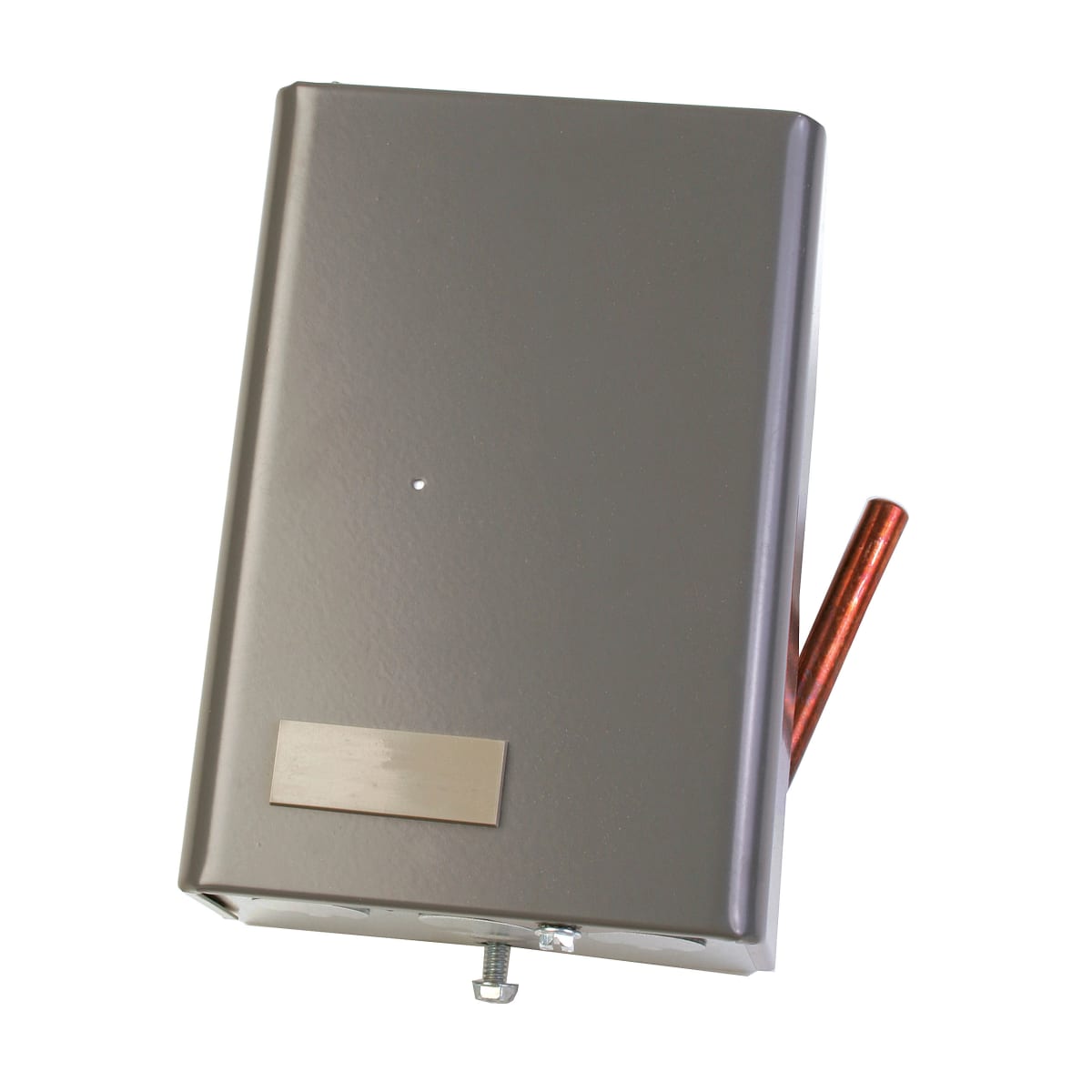

Resideo L8124A1049/U Triple Aquastat Relay, High Limit, Low Limit and Circulator, 120 V

Control You Can Count On These immersion-type controllers from Resideo combine high limit protection with low limit and circulator control in forced hydronic heating systems, including domestic hot water service. The controllers provide multizone control by using a separate circulator and relay for each zone. Mount it directly to boiler. Immersion-type controllers that combine high limit protection with low limit and circulator control in forced hydronic heating systems Provide multizone control by using a separate circulator and R845 Relay for each zone Include diaphragm powerhead and Micro Switch™ assembly that respond to temperature changes in boiler water Mount directly to boiler Select models include large transformers and extra terminals for supplying power to low voltage zone valves Require 24 Vac thermostat with heat anticipator set at 0.2 A (plus current draw of gas valve on L8124E) TRADELINE models include tube of heat conductive compound and range stops.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: L8124A1049/U
• Application: Aquastat Relay with High Limit Protection, Low Limit and Circulation Control
• Approvals and Standards: UL Listed (models with well): File No. MP466, Guide No. MBPR; UL Component Recognized (models without well): File No. MP466, Guide No. MBPR2; CSA Certified: File No. LR1620, Guide No. 400-E-O
• Color: Gray
• Compatible With: Hot Water; Hydronic Heating Systems
• UPC: 085267054874
• Category: Aquastats & Wells
