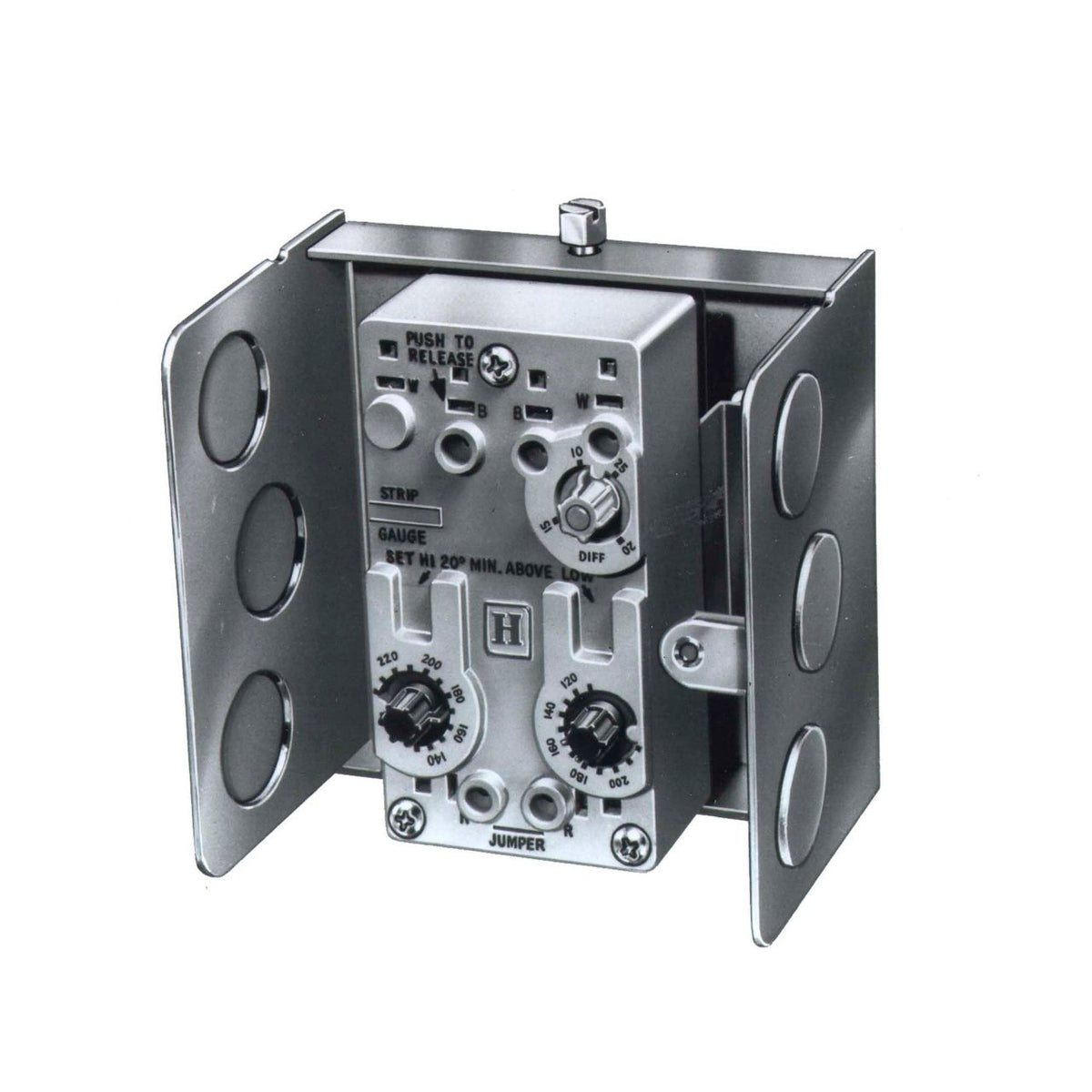

Resideo L4081A1023/U Dual Aquastat, High Limit 130–240°F, Low Limit 110–220°F, 10–25°F Adjustable Differential

Dual aquastat with 130–240°F high limit, 110–220°F low limit and 10–25°F adjustable differential.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: L4081A1023/U
• Application: High and Low limit
• Approvals and Standards: UL Listed: File No. MP466, Vol. 12, Sec. 4, Guide No. MBPR2, CSA Certified: File No. LR95329-1
• Compatible With: Gas Hydronic Heating System, Oil-Fired Hydronic Heating System
• Mounting Type: Horizontal Mount
• Low Limit Differential Temperature: 10 °F to 25 °F Adjustable
• Low Limit Set point Temperature (Min): 110 °F, 43 °C
• Low Limit Set point Temperature (Max): 220 °F, 104 °C
• High Limit Differential Temperature: 10 °F Fixed
• High Limit Set point Temperature (Min): 130 °F, 54 °C
• High Limit Set point Temperature (Max): 240 °F, 116 °C
• Electrical Ratings at Full Load: 8 A @ 120 V AC, 5.1 A @ 240 V AC
• Electrical Ratings at Locked Rotor: 48 A @ 120 V AC, 30.6 A @ 240 V AC
• Electrical Ratings Millivolt: 0.25 A @ 0.25 to 12 V DC
• Switch Action: High Limit Switch breaks on temperature rise, Low Limit Switch breaks on temperature rise
• Switch Type: SPST: High Limit
• Well Spud Size: 3/4 in 14 NPT, 19 mm 14 NPT
• Insulation Depth: 1.5 in, 38 mm
• Product Height: 3.88 in, 98 mm
• Product Width: 4.13 in, 108 mm
• Ambient Temperature (Max): 150 °F at Switches, 66 °C at Switches, 265 ° F at Sensing Element, 129 °C at Sensing Element
• Operating Relative Humidity (Min): 0% RH, Non-condensing
• Operating Relative Humidity (Max): 95% RH, Non-condensing
• Hazmat Information: Dangerous Goods in Excepted Quantities
• UPC: 085267053365
• Country of Origin: MX
• Category: Aquastats & Wells
