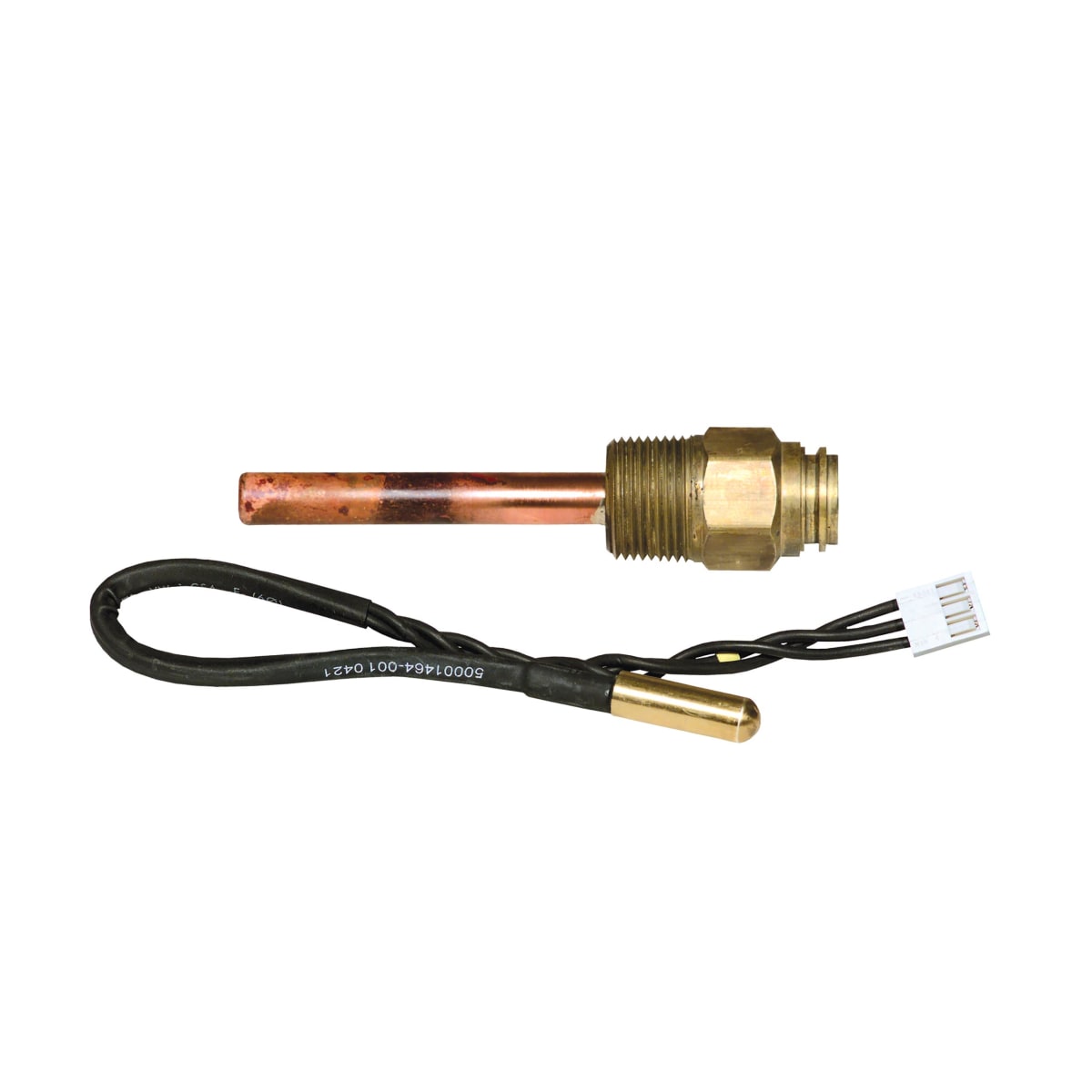

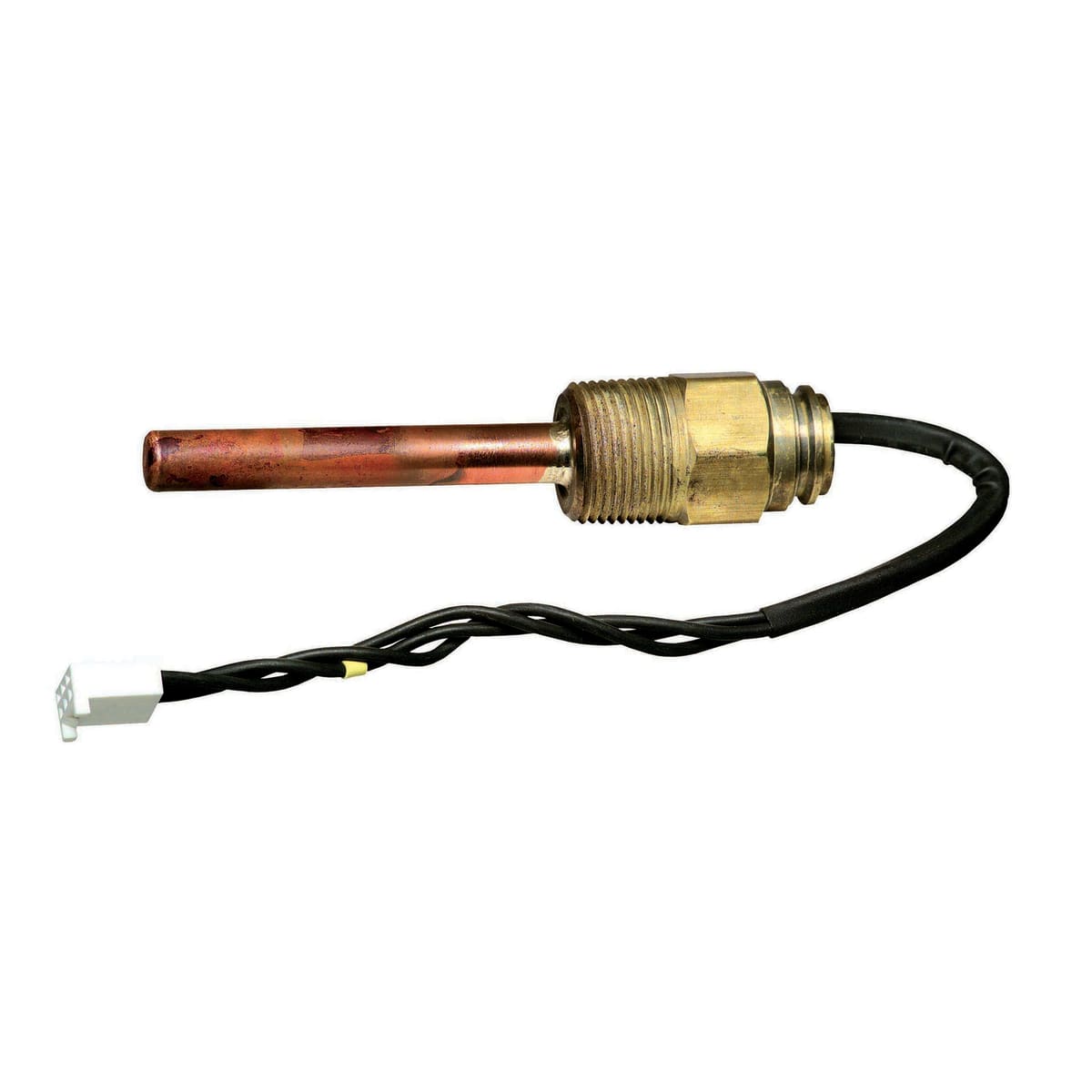

Resideo 123870A/U Copper Immersion Well, 3/4 in NPT, 3 in Insertion
Resideo

Resideo 123870A/U Copper Immersion Well, 3/4 in NPT, 3 in Insertion

Item #
HONE-123870A/U
Mfr. part #
123870A/U
UPC
085267005913
Key specifications
  • Connection size3/4 in - 14
  • ConnectionNPT
  • MaterialCopper (Cu)
  • For Use WithAquastat Controllers
  • Bulb Diameter3/8 in
View all specifications
$54.73
Each
Backorder – ships from manufacturer
Estimated delivery: –

Special order: typically ships in 3–4 weeks. Contact us for an exact lead time.

5% off at checkout with code SAVE5

Buying for a business? Tax-exempt purchasing and Net 30 terms available. Open a trade account

  • Ships from Seattle, WA
  • 30-day returns on unused items. Details
  • Secure checkout
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandResideo
Manufacturer part #123870A/U
ApplicationImmersion wells used with Aquastat® to hold the temperature sensing bulb in the controlled medium and prevents leakage
Compatible WithL4006 Aquastats, L4081 Aquastats
For Use WithAquastat Controllers
MaterialCopper (Cu)
Operating Pressure (Max)255 psi @ 300 °F, 1758 kPa @ 149 °C
Bulb Diameter3/8 in
Connection Size3/4 in - 14
Connection TypeNPT
Well Spud Size3/4 in, 19 mm
Element Insertion Length3 in
Insulation Depth1-1/2 in
UPC085267005913

123870A has been discontinued by the manufacturer (Resideo). No direct replacement has been published by the manufacturer. Contact us for help choosing an alternative.

Copper Well Assembly with 3 in bulb Functional replacement for 121371B without clamp.

Specifications

  • Brand: Resideo (Honeywell Home)
  • Manufacturer Part #: 123870A/U
  • Application: Immersion wells used with Aquastat® to hold the temperature sensing bulb in the controlled medium and prevents leakage
  • Compatible With: L4006 Aquastats; L4081 Aquastats
  • For Use With: Aquastat Controllers
  • Category: Aquastats & Wells

Questions about fit or compatibility? Ask our team. We usually reply within one business day.

$54.73
Backorder
