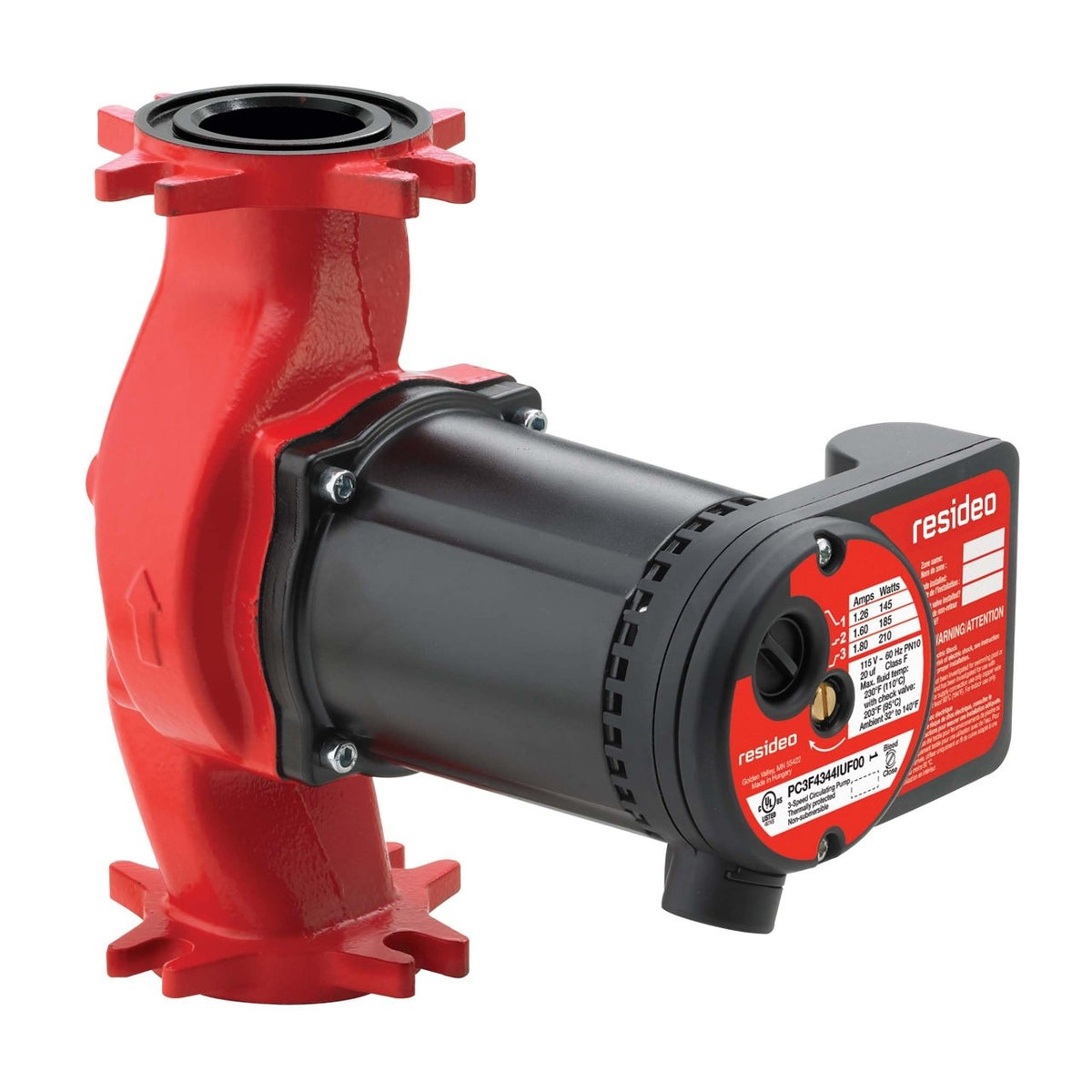

Resideo PC3F4344IUF00/U AquaPump Hydronic Circulating Pump, 3-Speed, 59 GPM Max

AquaPump hydronic circulating pump with 3 speeds and 59 GPM maximum flow.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: PC3F4344IUF00/U
• Application: Closed Loop Hydronic Heating Systems, Closed Loop Hydronic Cooling Systems, Solar Powered Systems
• Approvals and Standards: Insulation Class F, Temperature Class: TF 95, UL Listed 4MX8
• Controlled Media: Non Potable Water
• Flow Rate (Max): 59 gpm, 170 lpm
• Warranty: 5 Years
• Power Source: Hardwired
• Number of Speeds: 3
• Wattage Per Speed: 145 W for Speed 1, 185 W for Speed 2, 210 W for Speed 3
• Amp Drop Per Speed: 1.26 A for Speed 1, 1.61 A for Speed 2, 1.83 A for Speed 3
• Operating Frequency: 60 Hz
• Operating Voltage: 115 VAC
• Driving Noise Rating: Less than 43 dB(A) at 3.3 feet, Less than 43 dB(A) at 1 meter
• Connection Size: 3 2/5 in, 87 mm
• Connection Type: Flanged
• Flange Connection Size: 3.4 in, 87 mm
• Submersible: Non Submersible
• Inlet Pressure (Min): 4.1 psi at 194 °F, 4.1 psi at 90 °C, 0.73 psi at 167 °F, 0.73 psi at 75 °C
• Media Pressure (Max): 50 psi at 200 °F, 50 psi at 93 °C, 145 psi at room temperature
• Pressure Head (Max): 17 ft, 5.2 m
• Media Temperature (Max): 230 °F, 110 °C
• Check Valve Media Temperature (Max): 200 °F, 93 °C
• Ambient Operating Temperature (Max): 104 °F, 40 °C
• Ambient Operating Temperature (Min): 32 °F, 0 °C
• Color: Black, Red
• Compatible With: Hydronic Heating Systems, Hydronic Cooling Systems, Solar Powered Systems
• For Use With: PCG150/U, PCV150/U
• A to B Port Dimensions: 8.5 in, 216 mm
• Product Height: 8.5 in, 216 mm
• Product Length: 6.1 in, 155 mm
• Product Weight: 11 lb, 5 kg
• Body Material: Cast Iron GG25
• Bearing Material: Ceramic
• Seal Material: EPDM Rubber
• Shaft Material: Ceramic
• Impeller Material: Polyamide
• UPC: 085267964579
• Country of Origin: HU
• Category: Fixed Speed Circulators
