Description

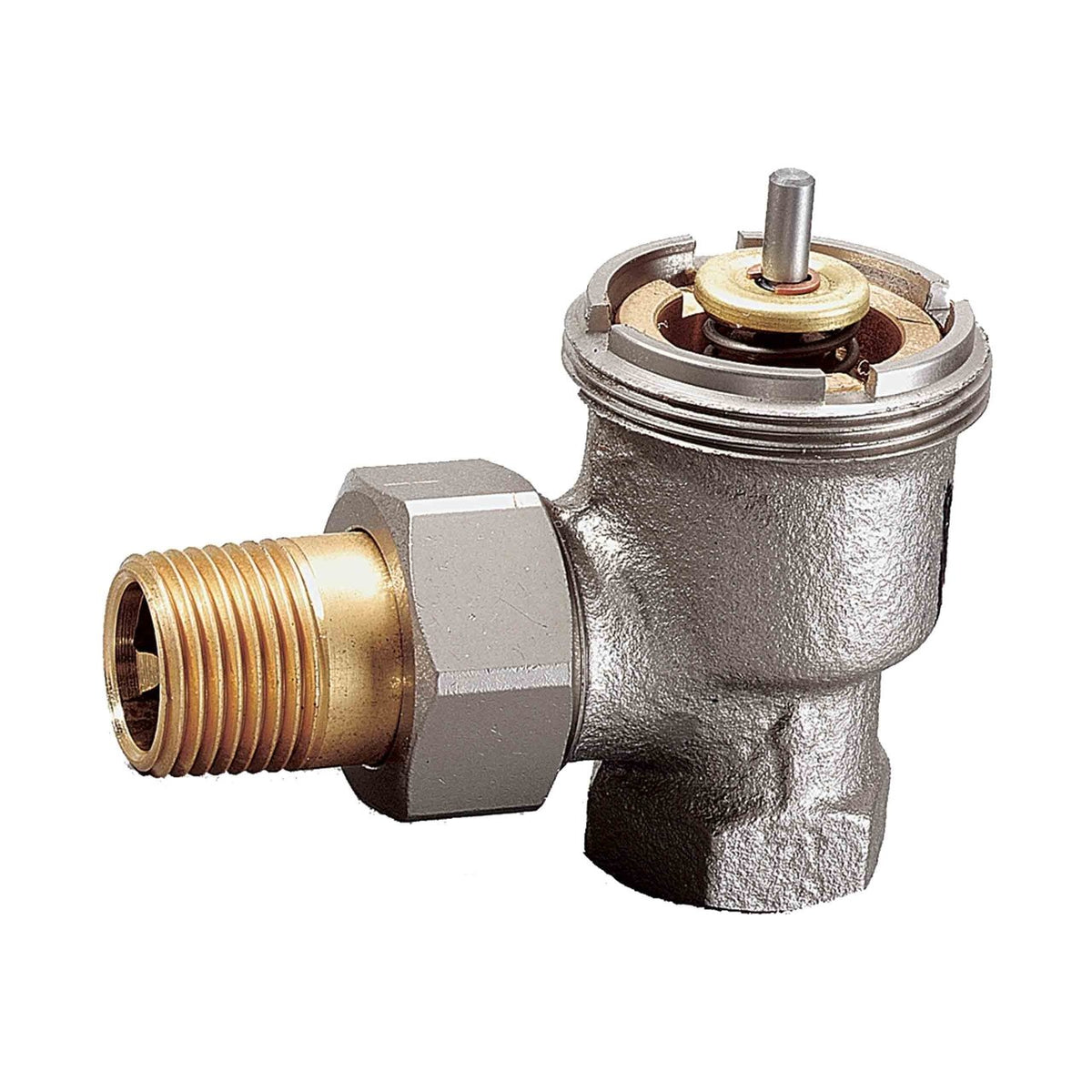

V110 valve body, 1-1/4 in, in vertical angle pattern with an MNPT tailpiece outlet.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: V110E1028/U
- Valve Type: Thermostatic Radiator Valve
- Application: Precise and automatic control of room temperature in two-pipe systems by modulating the flow of hot water or steam through high capacity heating units when used with T104 Thermostatic Actuators
- DN Size: DN32
- Connection Size: 1 1/4 in
- Connection Type: Threaded
- Steam Capacity: Yes
- Color: Nickel, Bronze
- Flow Coefficient: 8 Cv
- Valve Body Material: Bronze
- Valve Body Pattern: Angle
- Valve Capacity: High - 193,000 Btu/hr
- Differential Pressure (Max): 17 psi
- Compatible With: Hot Water, Steam
- For Use With: T104 Thermostatic Actuator
- Product Height: 6.69 in, 170 mm
- UPC: 085267103244
- Country of Origin: MX
- Category: Thermostatic Radiator Controls & Valves
