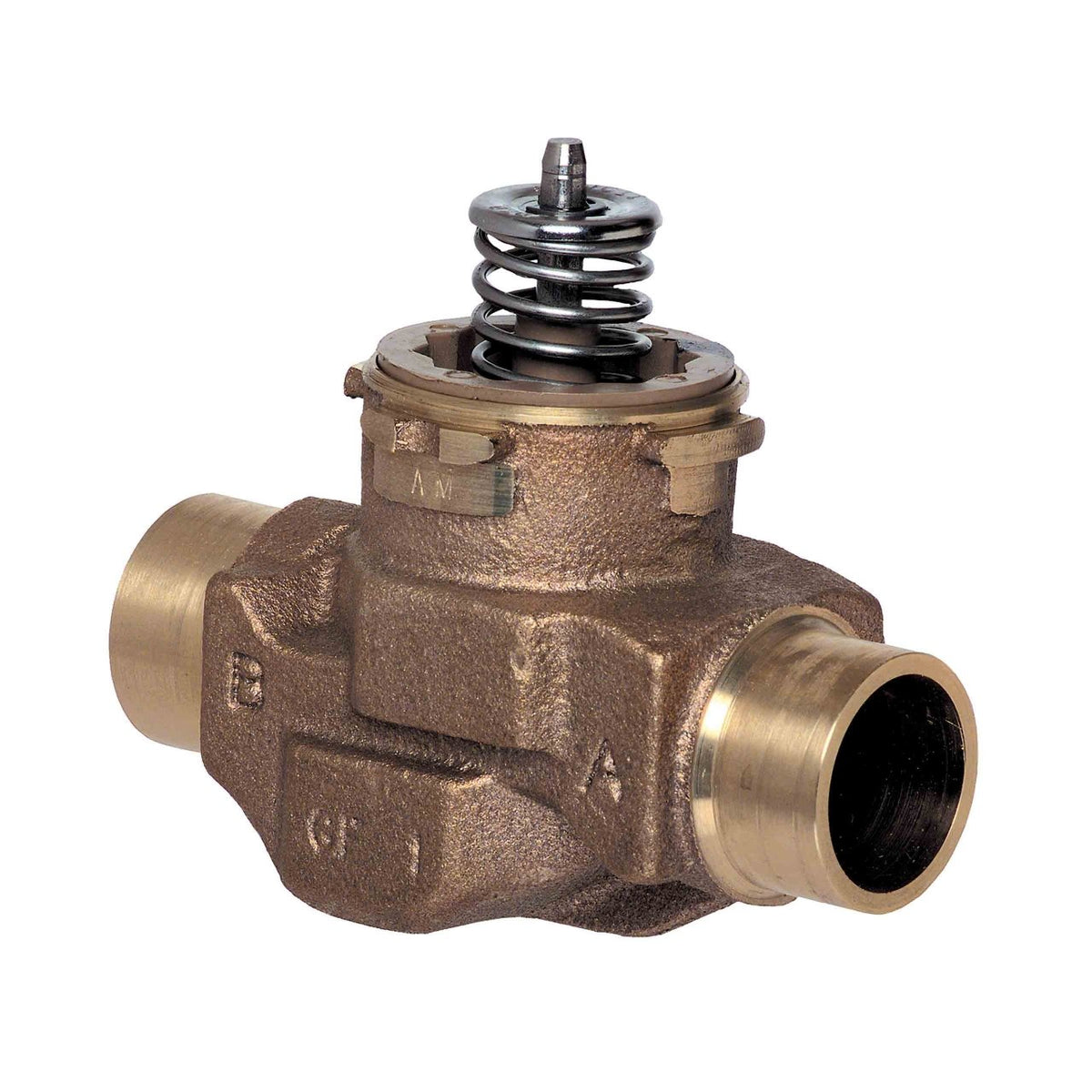

Honeywell Home VCZAM1000/U VC 2-Way Valve Assembly, 3/4 in Sweat

Which version do I need? We also carry a similar model with a different specification. Compare size, connection, length and the other details before ordering, and contact us if you need help choosing. See also: Honeywell Home VCZAM1000/E VC 2-Way Valve, 3/4 in Sweat, 5.8 Cv, Egg Crate Pack.

2-way VC valve assembly with 3/4 in sweat connection.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: VCZAM1000/U
• Cartridge Material: Ryton and Noryl Plastic
• Controlled Media: Water with max. 50 % glycol according to VDI 2035
• Approvals and Standards: CSA Certified
• Color: Bronze
• Includes: Valve, Cartridge Installation Wrench
• Product Height: 5.19 in, 132 mm
• Product Length: 3.69 in, 94 mm
• Product Weight: 0.54 lb
• Warranty: 5 years
• Ambient Operating Temperature (Min): 32 °F, 0 °C
• Ambient Operating Temperature (Max): 150 °F, 65 °C
• Connection Type: Sweat
• Differential pressure for close-off (Max): 60 psi, 414 kPa (4 bar)
• Flow Coefficient: 5.8 Cv; 5.2 Kvs
• Media Temperature (Min): 34 °F, 1 °C
• Media Temperature (Max): 203 °F, 95 °C
• Operating Pressure (Max): 300 psi, 2068 kPa (20 Bar)
• Seal Material: EPDM Rubber
• Shipping and Storage Temperature (Min): -40 °F, -40 °C
• Static Pressure Rating: 300 psi, 2068 kPa (20 Bar)
• Valve Body Material: Bronze
• Valve Body Pattern: Two-way, Straight Through
• Valve Cartridge: Yes
• Valve Flow Characteristic: Quick Open
• Valve Seat Material: EPDM O-ring seals on Noryl piston
• Valve Stem Material: Stainless Steel
• Valve Stem Travel: 0.4 in, 10 mm
• UPC: 085267133425
• Country of Origin: HU
• Category: 2-Way Zone Valve
