Description

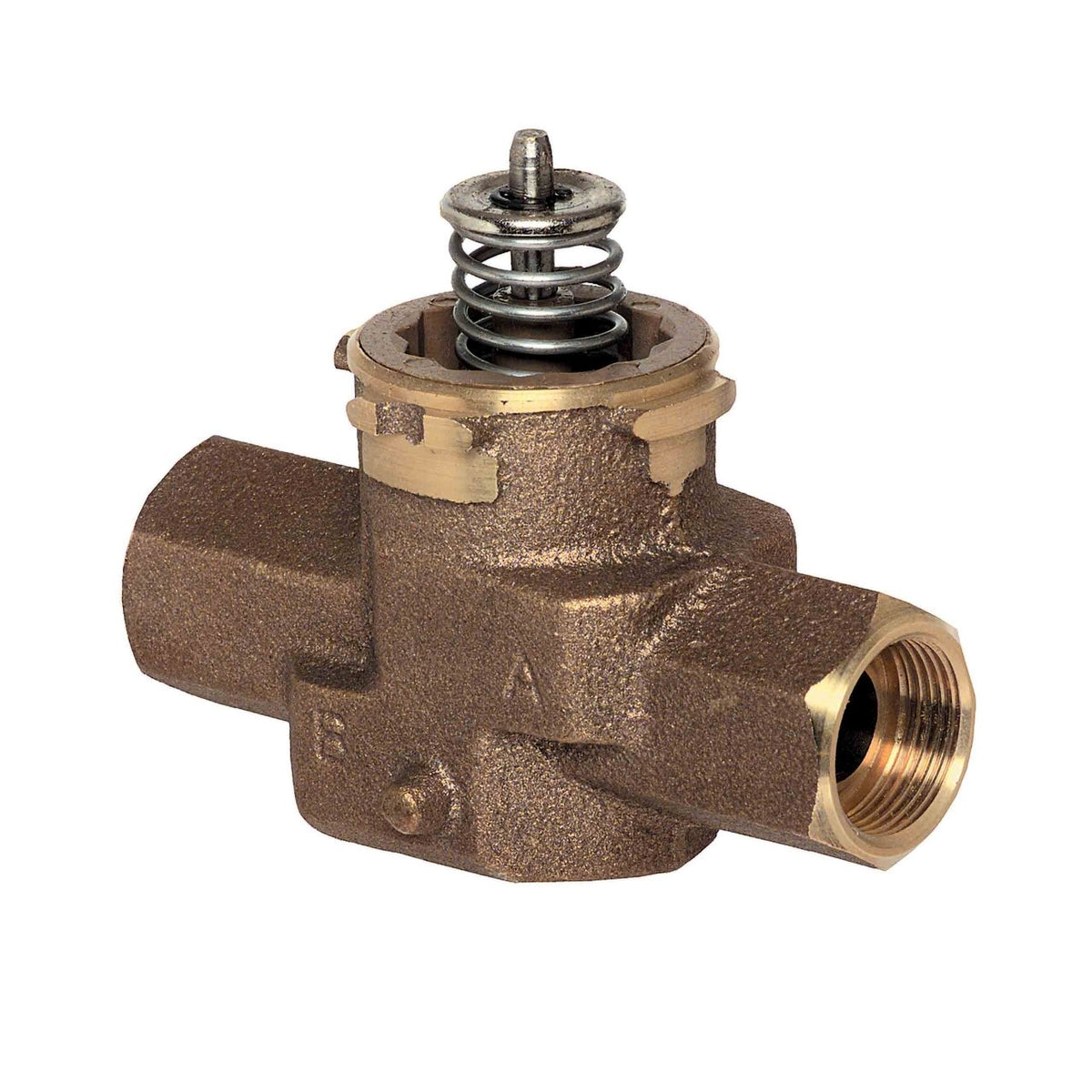

2-way VC valve assembly for hydronic systems with 1/2 in inverted flare connection, 3.6 Cv, and quick open flow.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: VCZAE1000/E
- Controlled Media: 50% (maximum) Glycol Mixture
- Approvals and Standards: CSA Certified
- Color: Bronze
- Includes: Valves (10), Cartridge Installation Wrench
- Product Weight: 0.54 lb
- Warranty: 5 years
- Ambient Operating Temperature (Min): 32 °F, 0 °C
- Ambient Operating Temperature (Max): 150 °F, 65 °C
- Connection Type: Inverted Flare
- Flow Coefficient: 3.7 Cv; 3.2 Kvs
- Operating Pressure (Max): 300 psi, 2068 kPa (20 Bar)
- Shipping and Storage Temperature (Min): -40 °F, -40 °C
- Valve Body Material: Bronze
- Valve Body Pattern: Two-way, Straight Through
- Valve Flow Characteristic: Quick Opening
- Valve Seat Material: EPDM
- Valve Stem Material: Stainless Steel
- UPC: 085267817592
- Country of Origin: HU
- Category: 2-Way Zone Valve
