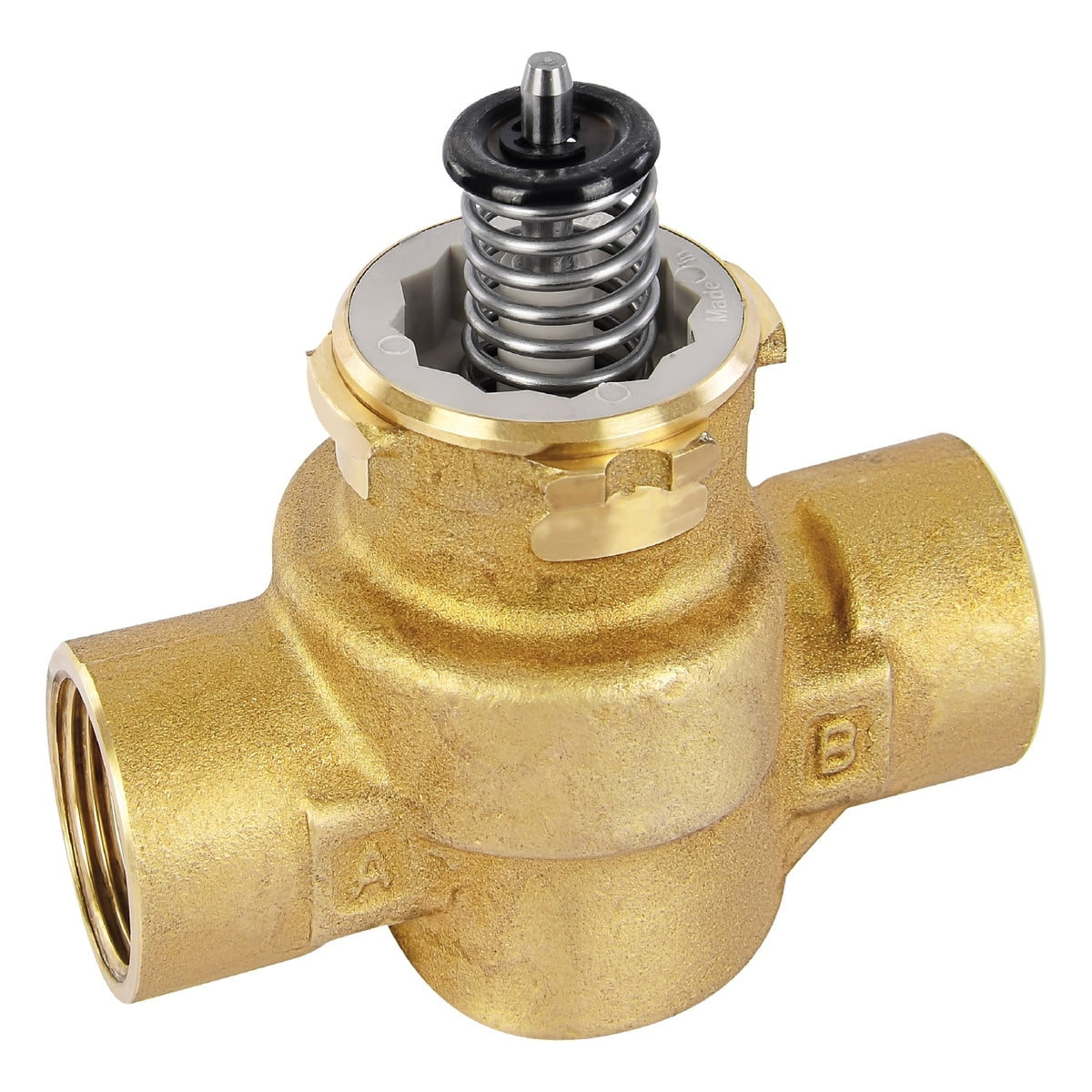

Honeywell Home VCZAJ1000/U VC 2-Way Valve

Item #: HONE-VCZAJ1000/U
Mfr. part #: VCZAJ1000/U

Planning a zoning system? Our free Zone Planner picks the panel, dampers or zone valves and thermostats for every floor, with one-click cart.

Key specifications

ConnectionBSPP-INT
Cartridge MaterialRyton and Noryl Plastic
Flow Coefficient5
Media Temperature1 °C
Operating Pressure20 Bar

View all specifications

$56.27

Free shipping on orders $99+
30-day returns on unused items. Details
Secure checkout

Need help with this part?

(404) 678-9908 Chat with a product specialist Request a quote

Brand	Honeywell Home
Manufacturer part #	VCZAJ1000/U
Cartridge Material	Ryton and Noryl Plastic
Controlled Media	Water with max. 50 % glycol according to VDI 2035
Product Weight	0.66
Warranty	5 years
Ambient Operating Temperature (Min)	0 °C
Connection Type	BSPP-INT
Differential pressure for close-off (Max)	400 Kpa
Flow Coefficient	5
Media Temperature (Min)	1 °C
Media Temperature (Max)	95 °C
Operating Pressure (Max)	20 Bar
Seal Material	EPDM Rubber
Shipping and Storage Temperature (Min)	-40 °C
Shipping and Storage Temperature (Max)	65 °C
Valve Body Pattern	Two-way, Straight Through
Valve Cartridge	Yes
Valve Flow Characteristic	Quick Open
Valve Stem Material	Stainless Steel

Which version do I need? We also carry a similar model with a different specification. Compare size, connection, length and the other details before ordering, and contact us if you need help choosing. See also: Honeywell Home VCZAJ1000/E VC Valve.

VC series 2-way valve.
