| Inlet/Outlet Size | 1/2 in. x 1/2 in. |
| Body Pattern | Straight-through |
| Capacity (kBtuh) | At 1 in. wc p.d.-- 150,000 BTUh: 15,000 BTUh minimum: 200,000 BTUh maximum Natural Gas |
| Opening Characteristics | Standard Opening |
| Voltage | 24 Vac |
| Frequency | 50, 60 Hz |
| Electrical Connections | 1/4 in. quick-connect male terminals |
| Pressure Rating | 1/2 psi |
| Regulator Setpoint | 3.5 in. wc |
| Pressure Tapping | 1/8 in. NPT with plug |
| Operating Temperature | -40 F to +175 F |
| Type of Fuel | Natural (LP with included conversion kit) |
| Ignition Type | Direct Ignition |
| Mounting | Multipoise - Mounts in any direction |
| Application | Single Stage |
| Includes | Natural to LP Conversion Kit |
| Dimensions | 3.38 inches high x 4.44 inches widex 2.70 inches deep |
| CSA | CSA International: 112395 |
| Pilot Gas Outlet | None |
| Approvals, Australian Gas Association | 7960 |
| Pressure Regulator | Standard |
Description

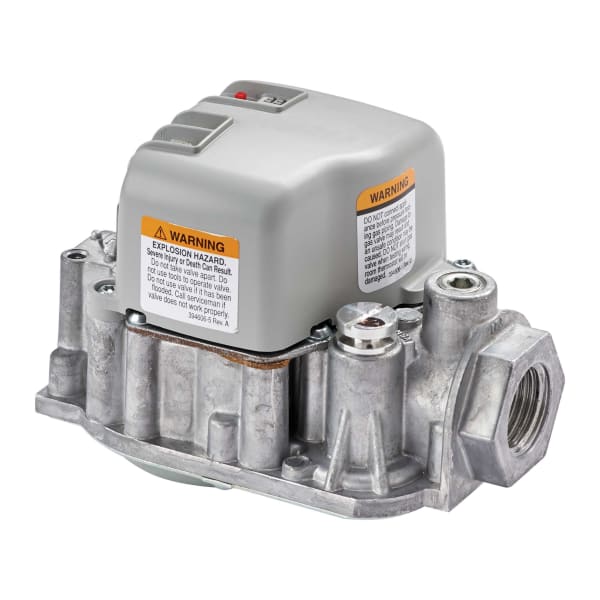

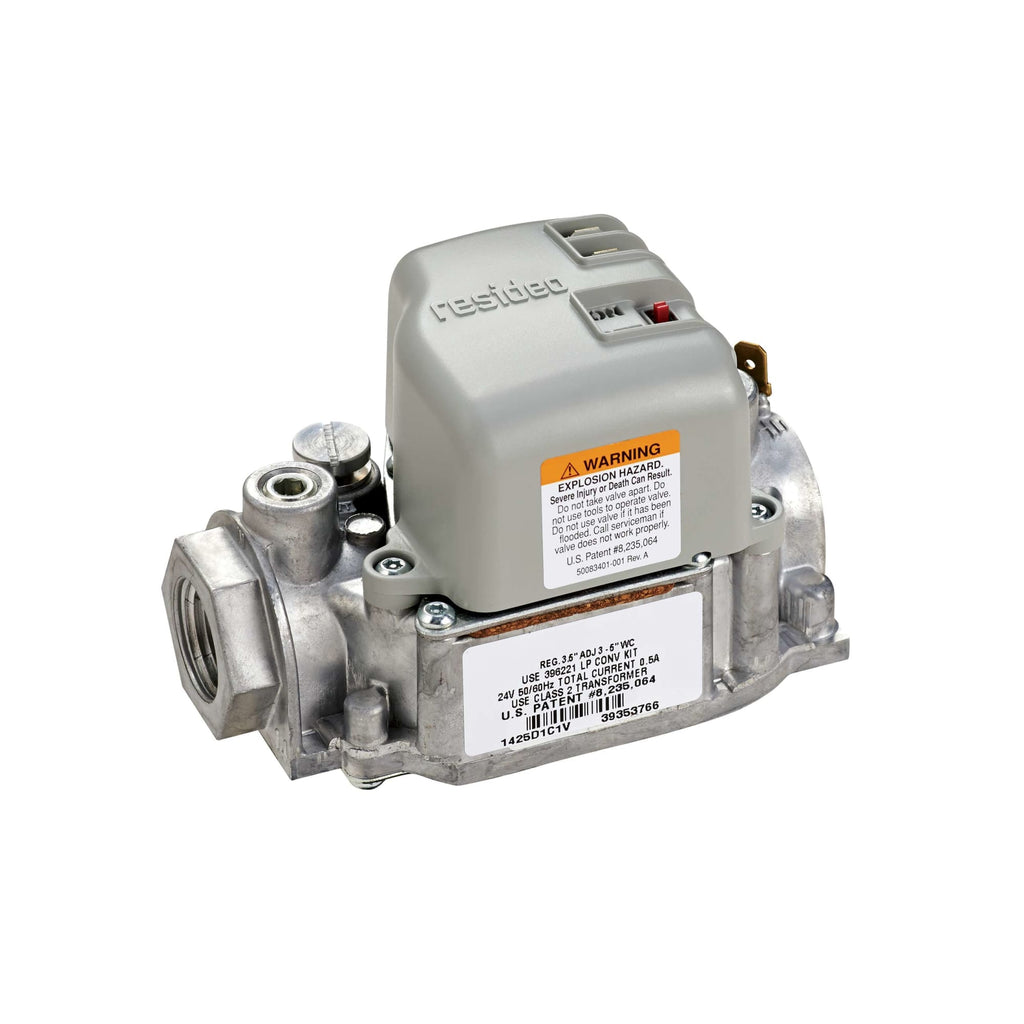

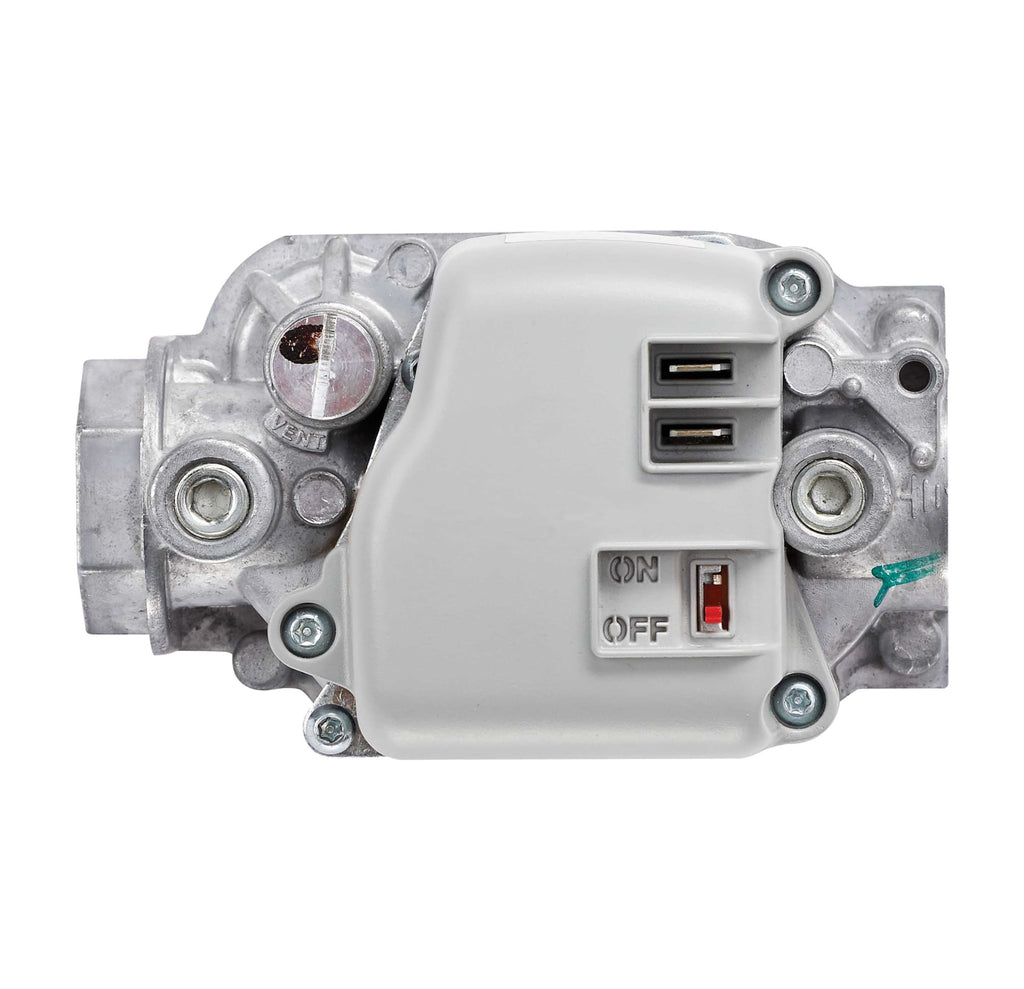

The VR8215S1503 is a single-stage gas control valve from Resideo (Honeywell Home) for direct ignition appliances, 24 Vac coil.
The gas valve is the component that admits fuel to the burner and shuts it off. It carries the main shutoff, the pressure regulator that holds manifold pressure steady as supply pressure varies, and the safety interlock that keeps gas off until the control system has proved it is safe to light.
Direct ignition skips the pilot entirely: the main burner is lit directly by a spark or a hot surface igniter and proved by flame rectification. Fewer parts in the gas path, and nothing burning between cycles.
The valve is standard opening. A slow-opening valve ramps the burner up over a couple of seconds to soften the light-off; a standard-opening valve goes to full rate at once. Match the opening rate of the valve coming out — this is one of the differences that does not show on the outside of the body.
Gas appliance safety. A gas valve must match the appliance it is fitted to — ignition system, capacity, inlet pressure and gas type. Replacement is work for a licensed gas technician, and the appliance manufacturer's parts list is what decides the correct valve, not the physical fit of the threads. If the replacement does not match, the appliance can fail to light, fail to prove flame, or overfire.
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: VR8215S1503/U
- Type: Gas control valve
- Ignition system: Direct ignition
- Staging: Single-stage
- Coil voltage: 24 Vac
- Opening rate: Standard opening
- UPC: 085267693868
- Category: Gas Valves
