Description

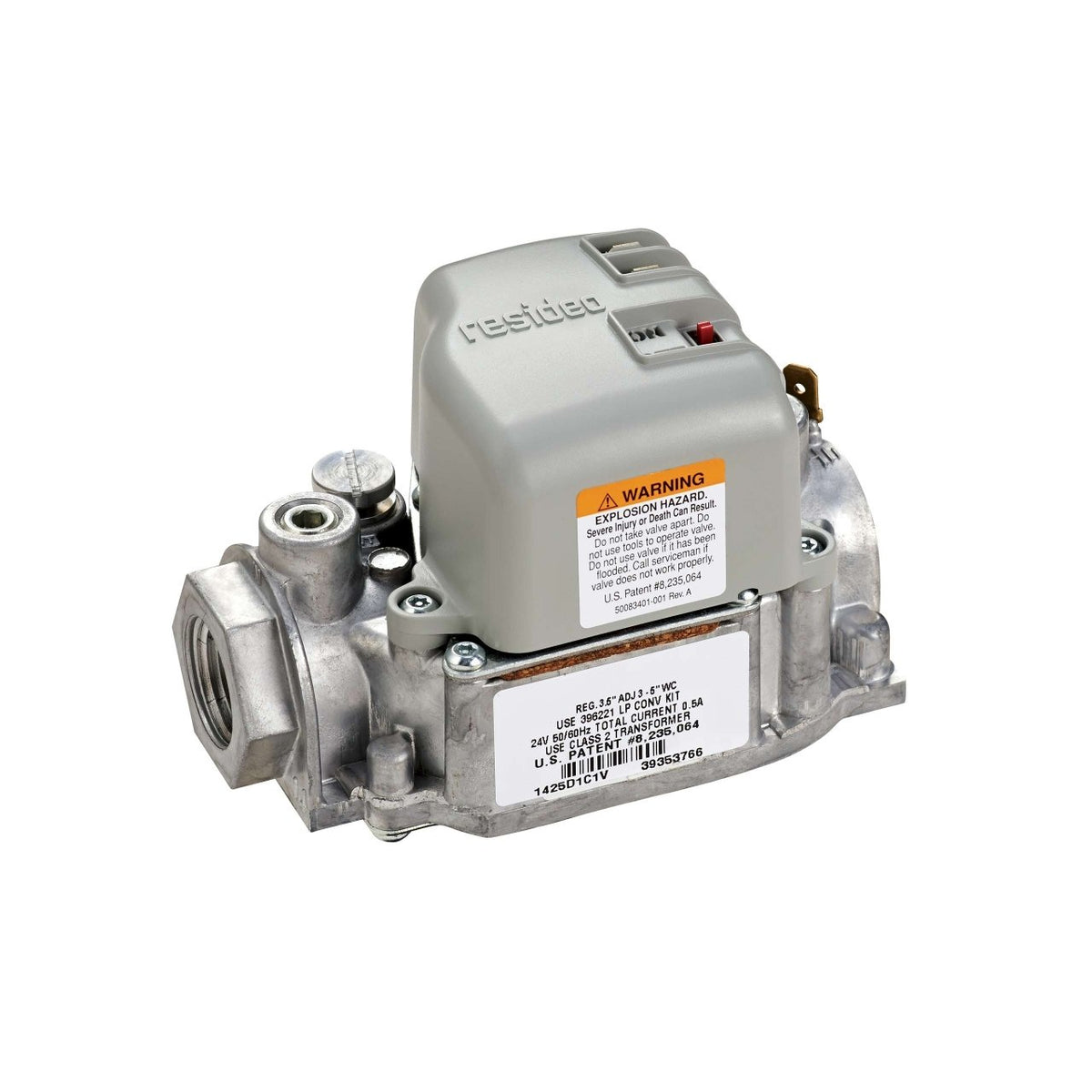

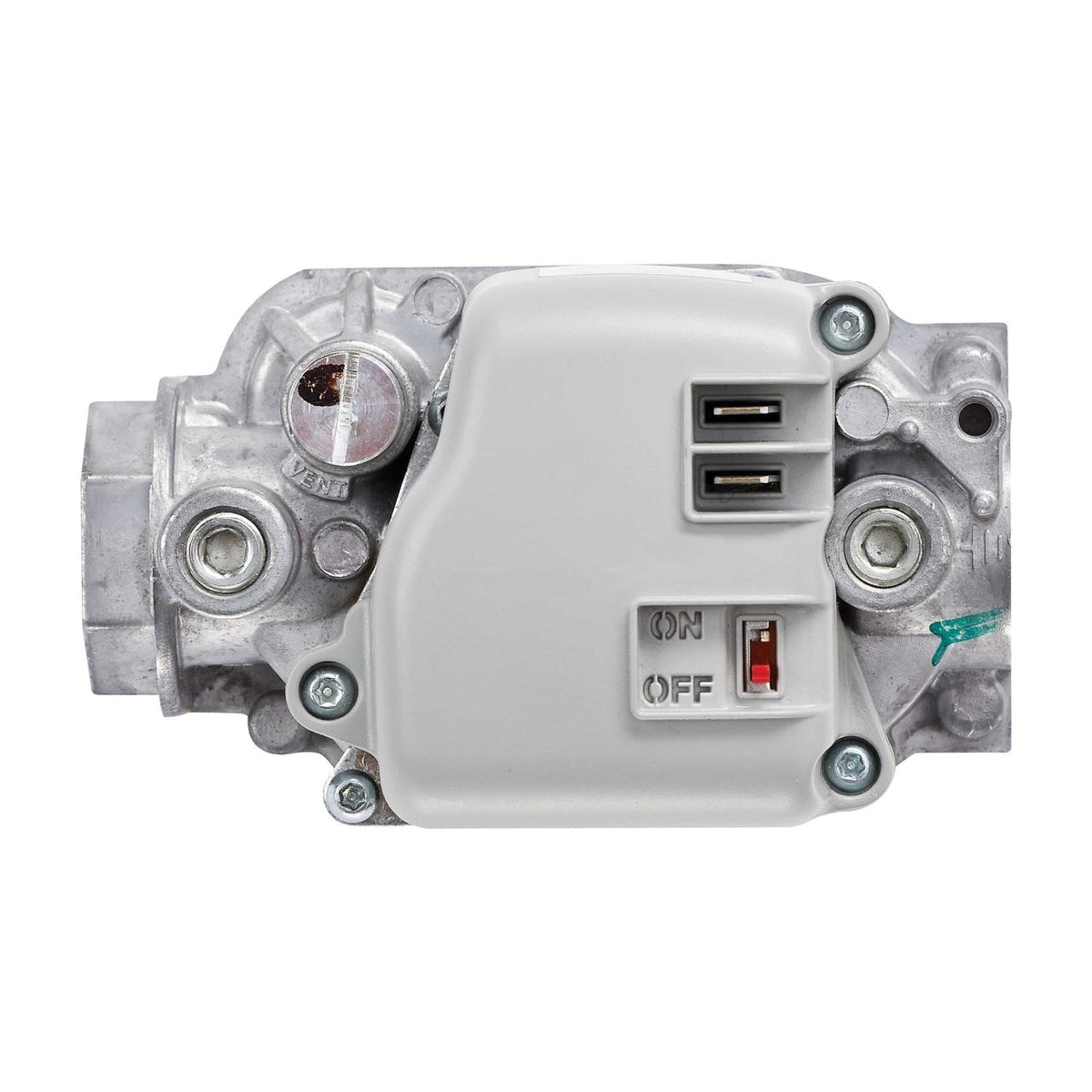

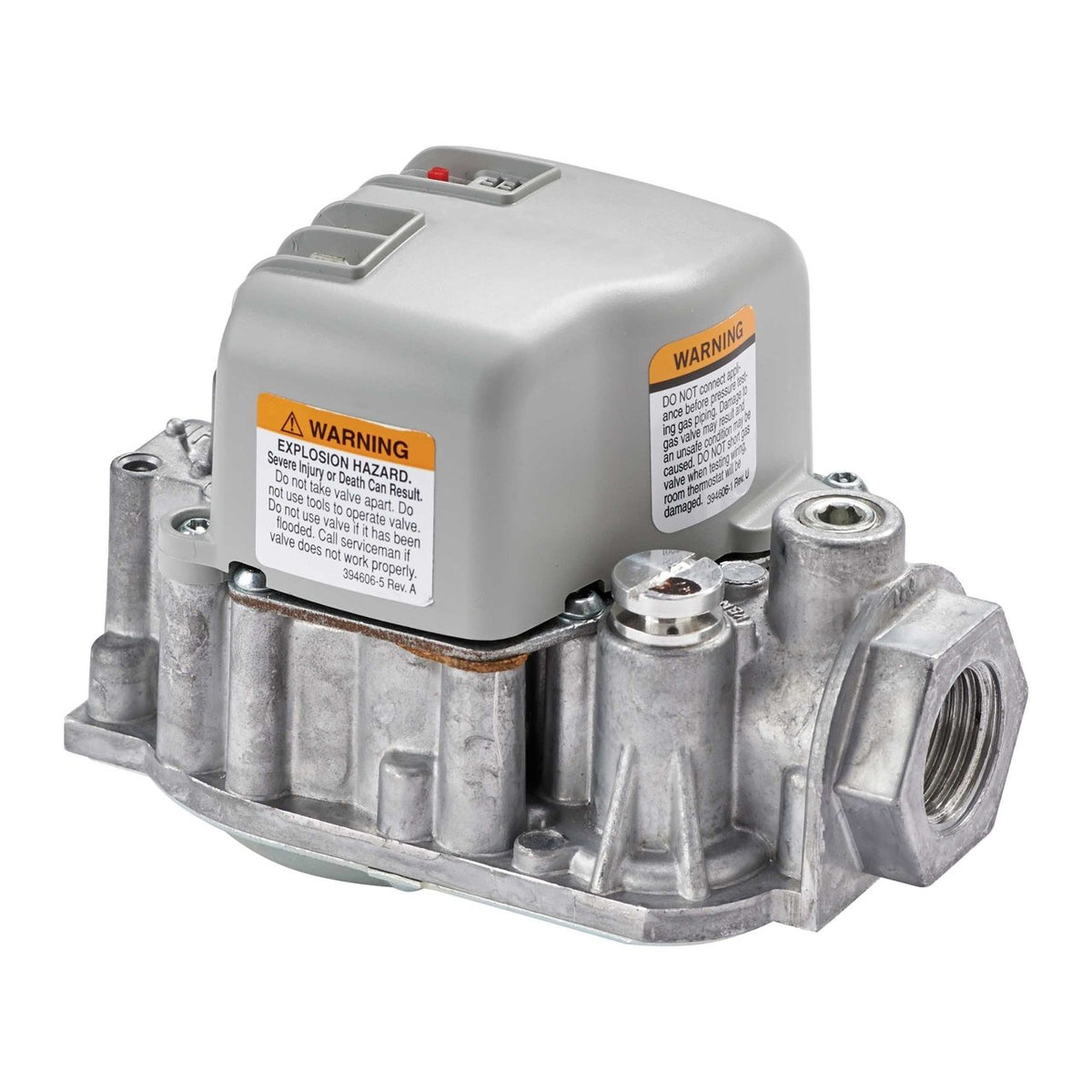

Multipoise direct ignition gas valve with slow opening, 1/2 in x 1/2 in connections and 3.5 in WC regulator setting, supplied with a conversion kit.
Features
- ON-OFF Lighting Sequence
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: VR8215T1502/U
- Application: Single-Stage Slow Opening Valve for Direct Burner Ignition
- Ignition Type: Direct Burner Ignition
- Type of Fuel: Natural Gas, LP with included conversion kit
- Regulator: Slow
- Capacity (Max): 200,000 BTU/h
- Capacity (Min): 15,000 BTU/h
- Operating Voltage: 24 V AC
- Inlet Connection Size: 1/2 in
- Outlet Connection Size: 1/2 in
- Regulation Type: Slow Opening
- Pressure Rating: 1/2 psi, 3.5 kPa
- Operating Pressure (Max): 1/2 psi
- Valve Body Pattern: Straight Through
- Ambient Operating Temperature (Max): 175 °F, 79 °C
- Ambient Operating Temperature (Min): -40 °F, -40 °C
- Approvals and Standards: CSA International: 112395, Australian Gas Association: 7960
- Color: Gray
- Mounting Type: Any
- Operating Frequency: 50 Hz, 60 Hz
- Product Height: 3.38 in, 86 mm
- Product Length: 4.44 in, 113 mm
- Product Width: 2.7 in, 69 mm
- UPC: 085267919159
- Country of Origin: MX
- Category: Gas Valves
