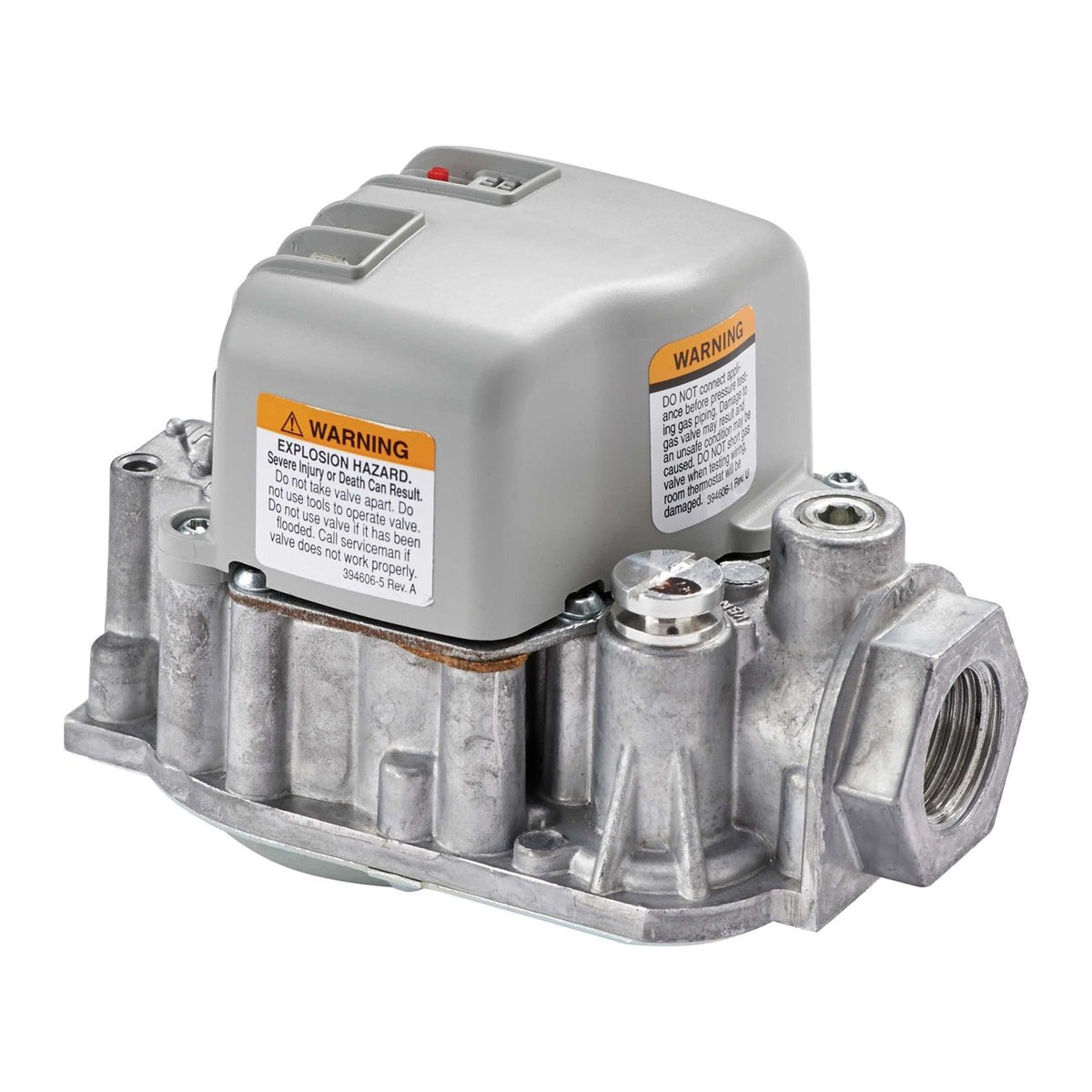

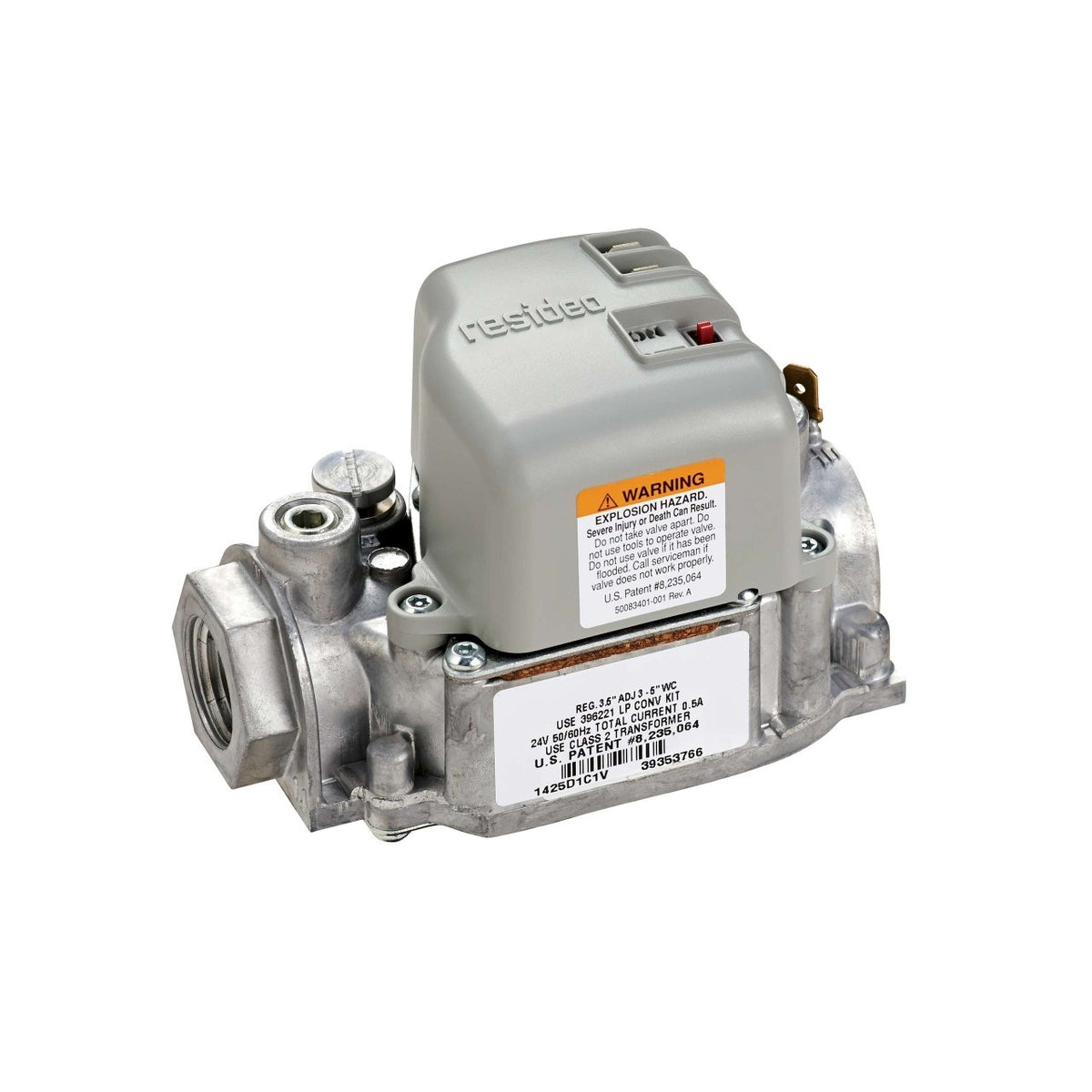

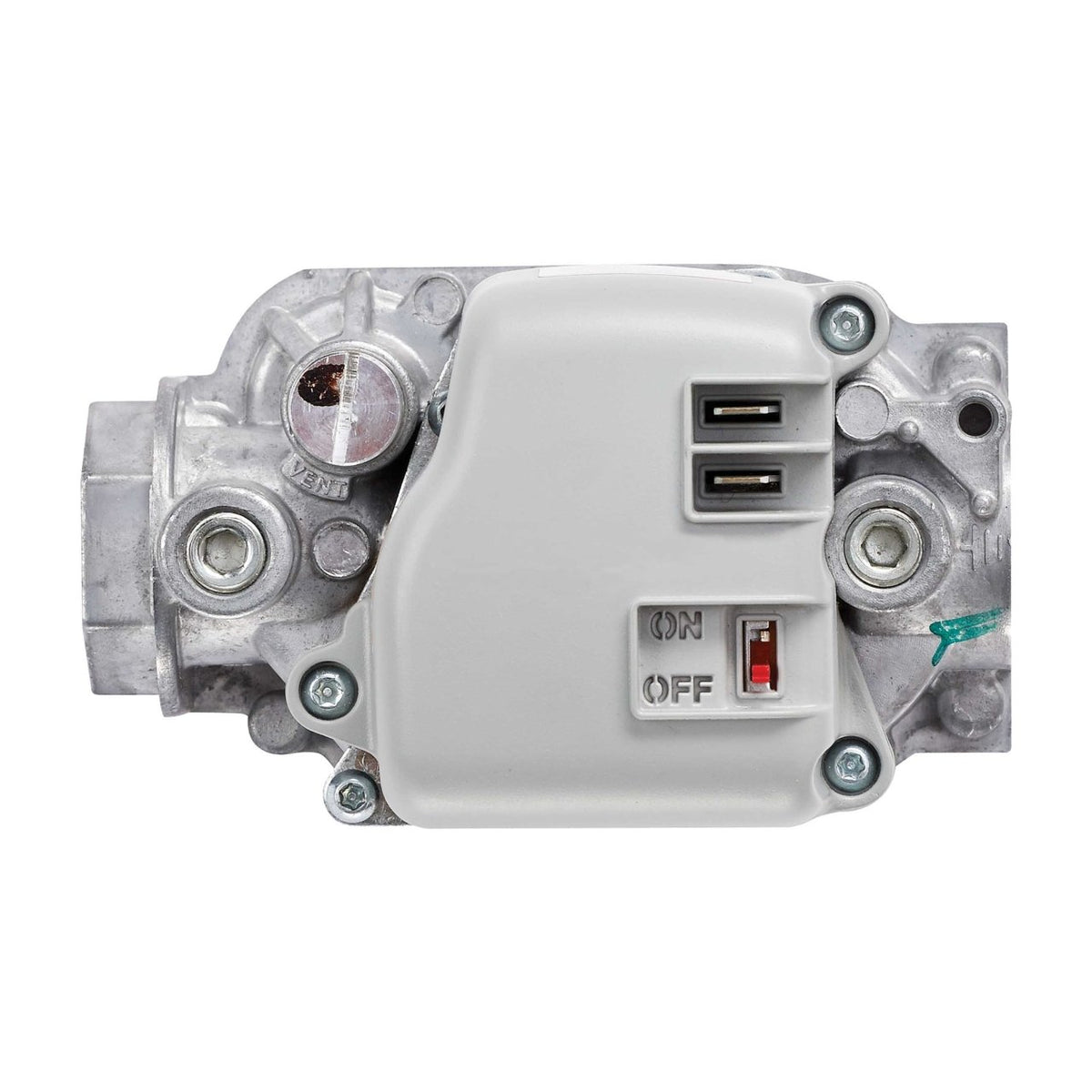

Resideo VR8215S1230T/U Direct Ignition Single Stage Gas Valve, Standard Opening, 1/2 in x 1/2 in, 3.5 in WC

Single stage direct ignition gas valve with standard opening, 1/2 in x 1/2 in connections, 3.5 in WC setting and vent fitting.

Features

• ON-OFF Lighting Sequence

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: VR8215S1230T/U
• Application: Single-Stage Standard Opening Valve for Direct Burner Ignition
• Ignition Type: Direct Burner Ignition
• Type of Fuel: Natural Gas
• Capacity (Max): 200,000 BTU/h
• Capacity (Min): 15,000 BTU/h
• Operating Voltage: 24 V AC
• Inlet Connection Size: 1/2 in
• Outlet Connection Size: 1/2 in
• Regulation Type: Standard Opening
• Regulation Range (Max): 3.5 in WC
• Regulation Range (Min): 2.5 in WC
• Pressure Rating: 1/2 psi, 3.5 kPa
• Operating Pressure (Max): 1/2 psi
• Valve Body Pattern: Straight Through
• Ambient Operating Temperature (Max): 175 °F, 79 °C
• Ambient Operating Temperature (Min): -40 °F, -40 °C
• Approvals and Standards: CSA International: 112395
• Color: Gray
• Mounting Type: Any
• Operating Frequency: 50 Hz, 60 Hz
• Pilot Gas Outlet: Pilot outlet are accessible from top of control
• Product Height: 3.38 in, 86 mm
• Product Length: 4.44 in, 113 mm
• Product Width: 2.7 in, 69 mm
• UPC: 085267196413
• Country of Origin: MX
• Category: Gas Valves
