Single Stage, 24 Vac, Standard Opening, Intermittent Pilot Gas Valve. 3/4 x 3/4 in Set 3.5 in WC

Resideo Single Stage, 24 Vac, Standard Opening, Intermittent Pilot Gas Valve. 3/4 x 3/4 in Set 3.5 in WC

Roll over image to zoom in Click on image to zoom

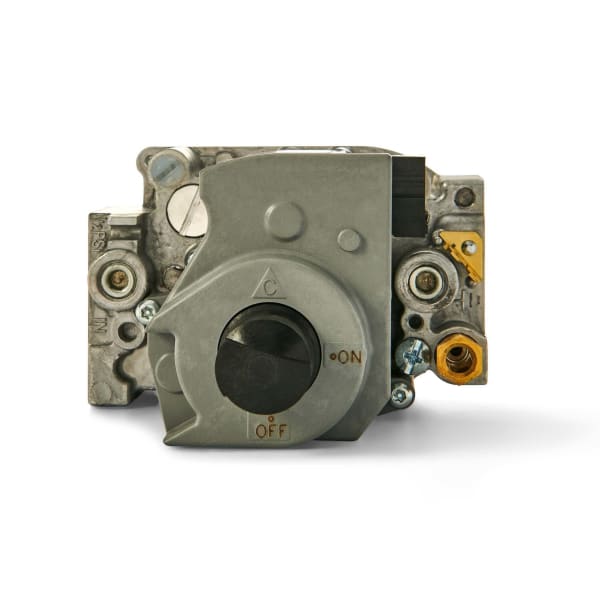

Resideo VR8304M4507/U Single Stage, 24 Vac, Standard Opening, Intermittent Pilot Gas Valve. 3/4 x 3/4 in Set 3.5 in WC

Name: Resideo VR8304M4507/U Single Stage, 24 Vac, Standard Opening, Intermittent Pilot Gas Valve. 3/4 x 3/4 in Set 3.5 in WC
Brand: Resideo
SKU: HONE-VR8304M4507/U
Price: 226.89 USD
Availability: InStock

ResideoSKU: HONE-VR8304M4507/U

Price:

$226.89

Stock:

In stock (14 units), ready to be shipped

Quantity:

Usually ships in 1–2 business days.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Free shipping on orders $99+ · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 1.9 lb
Box size: 7.9 × 6 × 3.4 in

Inlet/Outlet Size	3/4 in. x 3/4 in.
Body Pattern	Straight-through
Capacity (kBtuh)	At 1 in. wc p.d.-- 300,000 BTUh: 30,000 BTUh minimum: 415,000 BTUh maximum Natural Gas
Opening Characteristics	Standard Opening
Voltage	24 Vac
Frequency	60 Hz
Electrical Connections	1/4 in. quick-connect male terminals
Pressure Rating	1/2 psi
Regulator Setpoint	3.5 in. wc
Pressure Tapping	1/8 in. NPT with plug
Operating Temperature	-40 F to +175 F
Type of Fuel	Natural (LP with included conversion kit)
Ignition Type	Intermittent Pilot
Mounting	0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically.
Application	Single Stage
Includes	Two 3/4 in. x 1/2 in. reducer bushing; Natural to LP gas conversion kit.
Dimensions	5 3/8 in. high x 4 1/16 in. wide x 2 11/16 in. deep
UL	UL Component Recognized MCCZ2.MH5323
CSA	CSA International: 112395
Pilot Gas Outlet	Compression fitting for 1/4 in. OD tubing
Pressure Regulator	Standard

The VR8304M4507 is a single-stage gas control valve from Resideo (Honeywell Home) for intermittent pilot appliances, 24 Vac coil.

The gas valve is the component that admits fuel to the burner and shuts it off. It carries the main shutoff, the pressure regulator that holds manifold pressure steady as supply pressure varies, and the safety interlock that keeps gas off until the control system has proved it is safe to light.

Intermittent pilot lights the pilot only when heat is called for, proves it, and then opens the main valve. Nothing burns between cycles, which is the fuel saving over a standing pilot, and the ignition module watches the flame rod the whole time the burner runs.

The valve is standard opening. A slow-opening valve ramps the burner up over a couple of seconds to soften the light-off; a standard-opening valve goes to full rate at once. Match the opening rate of the valve coming out — this is one of the differences that does not show on the outside of the body.

Gas appliance safety. A gas valve must match the appliance it is fitted to — ignition system, capacity, inlet pressure and gas type. Replacement is work for a licensed gas technician, and the appliance manufacturer's parts list is what decides the correct valve, not the physical fit of the threads. If the replacement does not match, the appliance can fail to light, fail to prove flame, or overfire.

Brand: Resideo (Honeywell Home)
Manufacturer Part #: VR8304M4507/U
Type: Gas control valve
Ignition system: Intermittent pilot
Staging: Single-stage
Coil voltage: 24 Vac
Opening rate: Standard opening
UPC: 085267114677
Shipping weight: 2.0 lb
Category: Gas Valves

Full Specifications

Application	Single-Stage Standard Opening Valve for Intermittent Pilot
Ignition Type	Intermittent Pilot
Type of Fuel	Natural Gas, LP with included conversion kit
Regulator	Standard
Capacity (Max)	415,000 BTU/h Natural Gas
Capacity (Min)	30,000 BTU/h Natural Gas
Operating Voltage	24 V AC
Inlet Connection Size	3/4 in
Outlet Connection Size	3/4 in
Regulation Type	Standard Opening
Pressure Rating	1/2 psi, 3.5 kPa
For Use With	S86F, S86H, S860D, S8600F, S8600H, S8610, S90A, and S90B Control Modules
Includes	Two 3/4 in x 1/2 in Reducer Brushings, Natural to LP Gas Conversion Kit
Valve Body Pattern	Straight Through
Ambient Operating Temperature (Max)	175 °F, 79 °C
Ambient Operating Temperature (Min)	-40 °F, -40 °C
Approvals and Standards	UL Component Recognized MH5323, CSA International: 112395, Australian Gas Association design certificate: 4214, Approved for Delta C Applications
Mounting Type	0° to 90° in any direction from the upright position of the gas control knob, including vertically
Operating Frequency	60 Hz
Pilot Gas Outlet	Compression fitting for 1/4 in. OD tubing
Product Height	5.38 in
Product Length	2.69 in
Product Width	4.06 in
