Honeywell Home V110D1000/U Straight Pattern 1/2 in High Capacity Valve

Item #: HONE-V110D1000/U
Mfr. part #: V110D1000/U
UPC: 085267103145

Key specifications

Pipe Size1/2 in.
ConnectionThreaded
Body materialNickel Plated Bronze
Body PatternStraight
Capacity4.6 Cv

View all specifications

$73.27

Free shipping on orders $99+
30-day returns on unused items. Details
Secure checkout

Shipping details

Shipping weight: 0.74 lb
Box size: 3.75 × 2.5 × 1.55 in

Need help with this part?

(404) 678-9908 Chat with a product specialist Request a quote

Brand	Honeywell Home
Manufacturer part #	V110D1000/U
Pipe Size	1/2 in.
Connection Type	Threaded
Body Pattern	Straight
Capacity (Cv)	4.6 Cv
Close-off Pressure	17 psi maximum
Pressure Rating	Hot Water--150 psi maximum; Steam--15 psi maximum
Materials (Body)	Nickel Plated Bronze
Application	Precise and automatic control of room temperature in two-pipe systems by modulating the flow of hot water or steam through high capacity heating units.
Used With	T104
Temperature Range (F)	248 F Maximum
Capacity	high
Capacity (Btu/hr-steam)	127,000 Btu/hr
Cartridge Change Tool	Yes - Use MT110C1011
UPC	085267103145

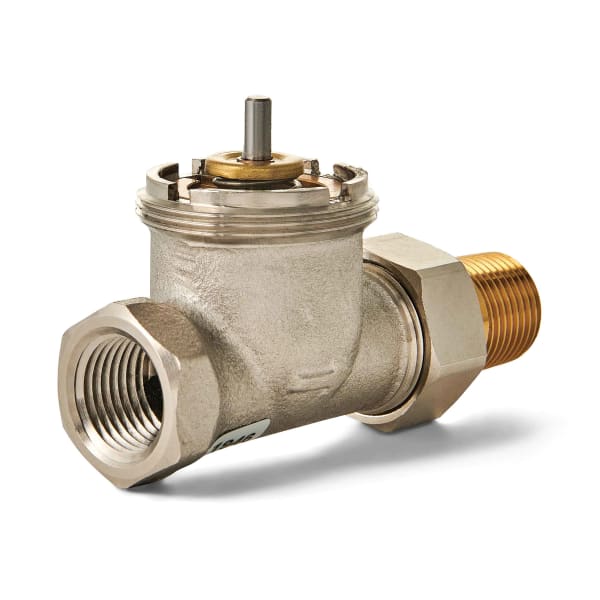

The V110D1000 is a straight-pattern thermostatic radiator valve body from Honeywell Home, 1/2 inch, rated 4.6 Cv and built to the high-capacity design.

A thermostatic radiator valve gives one radiator its own temperature control without any wiring. The head senses room air and opens or closes the valve underneath it, so a south-facing room that runs hot stops taking heat while the rest of the loop keeps running.

Pattern matters more than it sounds. A straight body is chosen to suit how the pipe arrives at the radiator: straight where the supply runs in line with the valve, angle where it turns up out of the floor, horizontal angle where it comes through the wall and has to turn in plan rather than in elevation. Fitting the wrong pattern means re-piping, not re-orienting.

The 4.6 Cv rating is what sizes the valve to the radiator. Too small and the radiator starves at design temperature; too large and the head loses authority, hunting between too hot and too cold instead of holding a setting.

What a working TRV takes: a valve body and a thermostatic head, ordered separately. This listing is the body.
