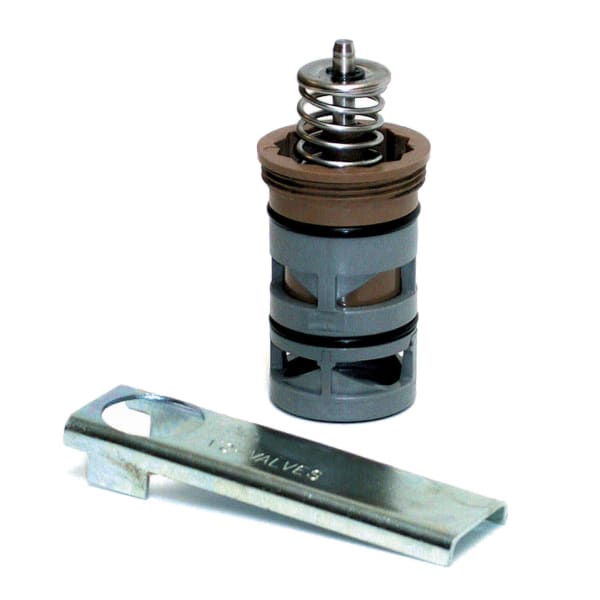

Honeywell Home VCZZ6532/U VC Series Replacement Cartridge for VC Valve - 3-Way with Equal Percentage Extra Low Flow

Item #: HONE-VCZZ6532/U
Mfr. part #: VCZZ6532/U
UPC: 085267833677

Planning a zoning system? Our free Zone Planner picks the panel, dampers or zone valves and thermostats for every floor, with one-click cart.

Key specifications

Valve TypeCartridge Valve
Controlled Fluid60% Glycol Mixture
Valve Stem Travel0.4 in, 10 mm
Valve Stem MateriaStainless Steel

View all specifications

$39.59

Ships from Seattle, WA
30-day returns on unused items. Details
Secure checkout

Need help with this part?

(404) 678-9908 Chat with a product specialist Request a quote

Brand	Honeywell Home
Manufacturer part #	VCZZ6532/U
Valve Type	Cartridge Valve
Controlled Fluid	60% Glycol Mixture
Application	Valve Cartridge
Used With	Three-way VC Cartridge Valves with 14 lbf
Compatible With	Use in cold, warm, and hot water applications.
Valve Flow Characteristic	Equal Percentage Extra Low Flow
Valve Stem Travel	0.4 in, 10 mm
Valve Stem Material	Stainless Steel
UPC	085267833677

Replacement cartridge for Honeywell Home VC series 3-way zone valves, with an equal percentage flow characteristic in the extra low flow range.

The VC design puts the seat, plug and seal inside a removable cartridge. A valve that no longer shuts off tight is rebuilt from the top, with the body left soldered or threaded in the line and the actuator reused.

An equal percentage characteristic gives progressively larger flow changes as the valve opens. It is the right choice when the valve is working against a system curve that is already steep, because it keeps the installed characteristic closer to linear where the loop actually operates.

What a complete VC zone valve takes: a valve body, a cartridge, and an actuator, ordered separately. This listing is the cartridge.

VC valve bodies and actuators this cartridge fits
