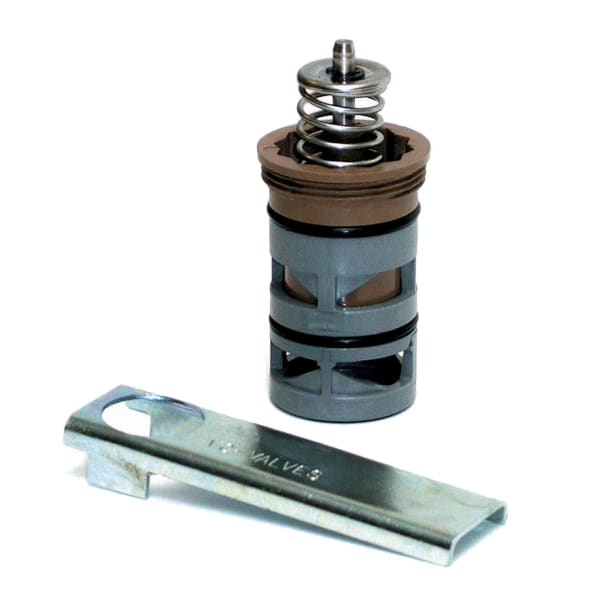

VC Series Replacement Cartridge for 2-Way Valve with Linear Flow
Honeywell Home

Honeywell Home VCZZ7100/U VC Series Replacement Cartridge for 2-Way Valve with Linear Flow

Item #
HONE-VCZZ7100/U
Mfr. part #
VCZZ7100/U
UPC
085267314077
Planning a zoning system? Our free Zone Planner picks the panel, dampers or zone valves and thermostats for every floor, with one-click cart.
Key specifications
  • Flow CharacteristiLinear
  • Body materialStainless Steel
  • Stem Travel0.4 in.
View all specifications
$41.40
Each
In stock
Estimated delivery: –

Usually ships in 1–2 business days.

  • Ships from Seattle, WA
  • 30-day returns on unused items. Details
  • Secure checkout

Shipping details

  • Shipping weight: 0.24 lb
  • Box size: 4.75 × 4.5 × 1.55 in
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandHoneywell Home
Manufacturer part #VCZZ7100/U
Valve TypeReplacement cartridge for VC series
Flow CharacteristicLinear
Controlled FluidWater w/max of 60% Glycol. Not for use with Steam
Materials (Stem)Stainless Steel
Used WithThree-way VC Cartridge Valves with 20 lbf
Dimensions1 1/2 in. diameter x 3 1/8 in. high
CSACSA Certified
Materials (Cartridge)EPDM, Ryton & Noryl plastic
Stem Travel (in.)0.4 in.
UPC085267314077

Replacement cartridge for Honeywell Home VC series 2-way zone valves, with an linear flow characteristic.

The VC design puts the seat, plug and seal inside a removable cartridge. A valve that no longer shuts off tight is rebuilt from the top, with the body left soldered or threaded in the line and the actuator reused.

A linear characteristic moves flow in step with stem position, which keeps a modulating loop predictable across the stroke.

What a complete VC zone valve takes: a valve body, a cartridge, and an actuator, ordered separately. This listing is the cartridge.

VC valve bodies and actuators this cartridge fits

  • Brand: Honeywell Home
  • Manufacturer Part #: VCZZ7100/U
  • Series: VC
  • Configuration: 2-way
  • Flow characteristic: Linear
  • Category: Zone Valve Parts

Questions about fit or compatibility? Ask our team. We usually reply within one business day.
