| Valve Type | Replacement cartridge for VC series |
| Flow Characteristic | Equal Percentage |
| Controlled Fluid | Water w/max of 60% Glycol. Not for use with Steam |
| Materials (Stem) | Stainless Steel |
| Used With | Two-way VC Cartridge Valves with 14 lbf |
| Dimensions | 1 1/2 in. diameter x 2 9/16 in. high |
| CSA | CSA Certified |
| Materials (Cartridge) | EPDM, Ryton & Noryl plastic |
| Stem Travel (in.) | 0.4 in. |
Description

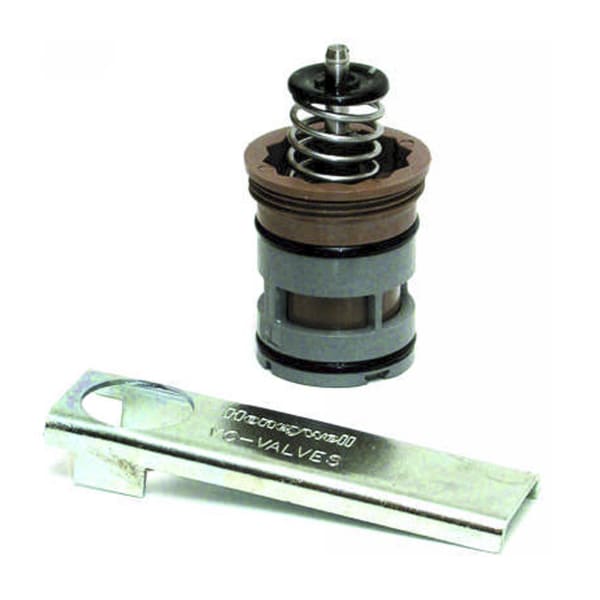

Replacement cartridge for Resideo (Honeywell Home) VC series 2-way zone valves, with an equal percentage flow characteristic.
The VC design puts the seat, plug and seal inside a removable cartridge. A valve that no longer shuts off tight is rebuilt from the top, with the body left soldered or threaded in the line and the actuator reused.
An equal percentage characteristic gives progressively larger flow changes as the valve opens. It is the right choice when the valve is working against a system curve that is already steep, because it keeps the installed characteristic closer to linear where the loop actually operates.
What a complete VC zone valve takes: a valve body, a cartridge, and an actuator, ordered separately. This listing is the cartridge.
VC valve bodies and actuators this cartridge fits
- Resideo VCZAA1100/E 2-way 1/2 in Sweat VC Valve Assembly 3.5 Cv and linear flow
- Resideo 2-way 3/4 in fNPT VC Valve Assy 4.7 Cv and linear flow VCZAL1100/E
- Resideo 2-way 3/4 in fNPT VC Valve Assy 4.7 Cv and linear flow VCZAL3100/U
- Resideo VCZAR1100/U 2-way 1 in fNPT VC Valve Assy 6.6 Cv and linear flow
- Resideo VCZBB1100/U 2-way 1/2 in fNPT VC Valve Assembly 3.5 Cv and linear flow
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: VCZZ1400/U
- Series: VC
- Configuration: 2-way
- Flow characteristic: Equal percentage
- Category: Zone Valve Parts
