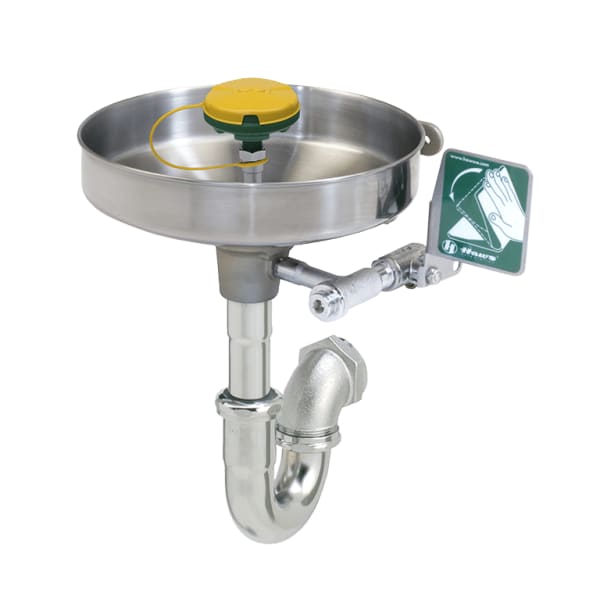

Haws 7360BT-7460BT Wall-Mount Stainless Bowl Eye/Face Wash With Bracket And Trap

The Haws 7360BT-7460BT is an AXION MSR wall-mount emergency eye/face wash with an 11" stainless steel bowl, wall bracket, tailpiece and trap. Haws now builds the 7360BT and 7460BT as the same unit.

Key features

• AXION MSR eye/face wash head with inverted laminar flow that directs contaminants away from the nasal cavity
• Integral 3.7 gpm flow control
• Chrome-plated brass stay-open ball valve with stainless steel ball and stem
• In-line chrome-plated brass strainer (50 x 50 mesh)
• CSA certified to ANSI/ISEA Z358.1

Specifications

• Brand: Haws
• Manufacturer part number: 7360BT-7460BT
• Mounting: Wall
• Bowl: 11" (27.9 cm) round stainless steel
• Flow control: 3.7 gpm
• Supply: 1/2" NPT female inlet
• Waste: 1-1/2" NPT
• Recommended supply: 1/2" IPS minimum, 30-90 psi flowing pressure
• Bracket, tailpiece and trap: Cast aluminum, chromate protected
• Standard: ANSI/ISEA Z358.1 (CSA certified)

What's included

• Wall bracket
• Drain tailpiece and trap
• Yellow plastic pop-off dust covers
• Universal eyewash sign

Install close to the hazard area where the unit is clearly identified and easy to reach, following Haws' installation instructions and local code.
