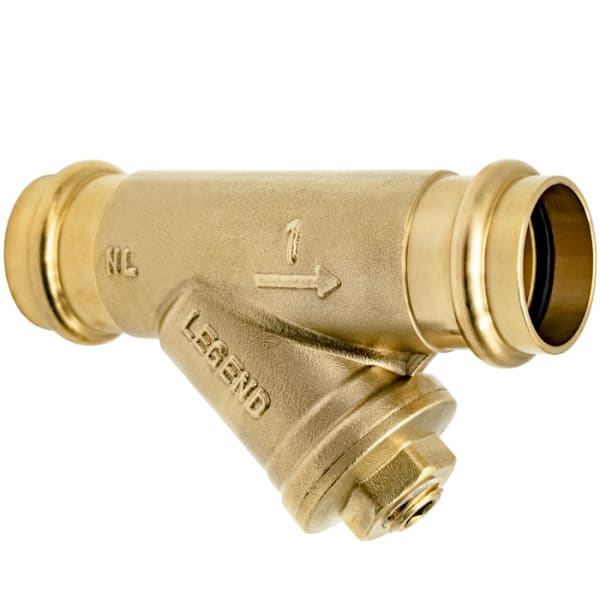

Legend Valve 105-707PNL 1-1/2" - Press x Press, LegendPress No Lead Forged Brass Y-Strainer

Legend Valve 105-707PNL is a 1-1/2" y-strainer, Press x Press.

A Y-strainer traps scale and debris ahead of pumps, valves and meters; the screen is cleaned by removing the cap.

The press ends go onto copper tube with a copper press tool and jaw, with no flame or solder.

Specifications

• Brand: Legend Valve
• Manufacturer Part #: 105-707PNL
• Size: 1-1/2"
• Type: No Lead Forged Brass Y-Strainer
• Connections: Press x Press
• Material: Forged Brass
• Lead content: No Lead (0.25% max weighted lead, NSF/ANSI 372)
• UPC: 662545138442
• Category: Y-Strainers

Features

• Legend P-16NL Y-strainer, 1-1/2" press x press connections
• Body, end cap and plug: lead-free forged brass, UNS alloy C46500; EPDM press and cap O-rings
• 304 stainless steel 20-mesh screen traps and holds debris to protect downstream components
• Pressure/temperature: 200 psi cold working pressure (CWP), 15 psi saturated steam (WSP), 0–250°F service temperature
• For ASTM B88 Type K, L and M hard-drawn copper tube; coiled (annealed) soft copper is not recommended
• Leak-Before-Press O-rings help identify an un-pressed joint during the pressure test; compatible with commercially available VUS profile press jaws
• Third-party certified to NSF/ANSI 372 (lead content); built to ANSI/ASME B16.51 press-fitting standard
• Dimensions: A = 5.85 in, B = 2.88 in, tube insertion depth 1-7/16 in
• Install with the screen cap facing down when horizontal; in vertical runs, flow must be downward
