| Connection Size |
1/2" MNPT |
| Finish/Color |
Gray |
| Height |
5" |
| Length |
20" |
| Material |
Carbon Steel |
| Maximum Working Water Pressure |
51 psi |
| Maximum Working Water Temperature |
194F Degrees |
| Tank Capacity |
0 - 5 Gallons |
| Type |
Hydronic Expansion Tank |
| Warranty |
5 Years |
| Weight |
11 lb |
| Unit Width |
11" |
-
Brand: Zilmet
-
Manufacturer Part #: ZFT8R-15
-
Shipping Weight: 5 lb
Features
- Flat rectangular wall-mounted hydronic expansion tank, 2.1 gallon total volume
- Acceptance volume 1.1 gallon
- Factory precharge 12 psi; maximum working pressure 43.5 psi
- Maximum design temperature 194°F
- 1/2" NPT connection
- Dimensions: 17.2" L x 9.8" W x 3.7" H
- Carbon steel shell and connection with SBR synthetic rubber diaphragm
- For closed-loop, non-potable hydronic heating systems only; suits wall-hung condensing boilers
- Welded mounting bracket; 5-year warranty
What's in the Box
- Expansion tank with welded mounting bracket
- 1/2" union with two-way check valve

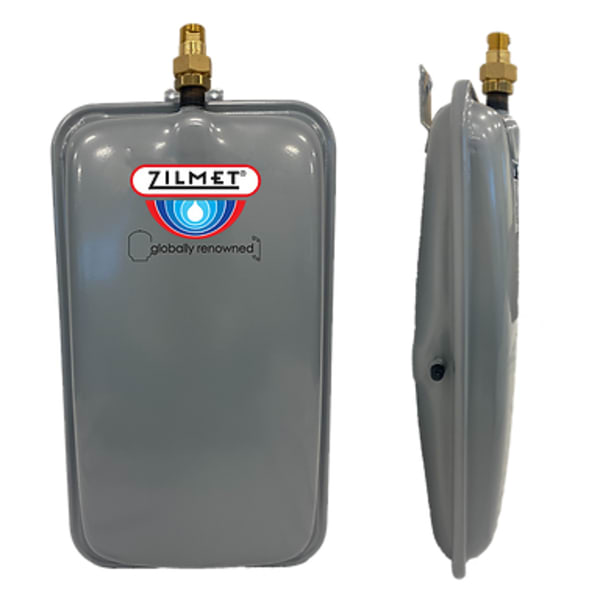

Zilmet ZFT8R-15 2.1 Gallon Expansion Tank Rectangular
$182.27
