Watts T063235 2" Lead Free Double Check Valve Backflow Preventer Assembly, Quarter Turn Shutoff, Single Top Entry with Freeze Stop

Item #: WATT-T063235
Mfr. part #: T063235

Key specifications

TypeDouble Check Valve Assembly
Connection size2"
ConnectionFemale Threaded
MaterialLead Free Bronze
BypassNo

View all specifications

$1,155.09

Free shipping on orders $99+
30-day returns on unused items. Details
Secure checkout

Shipping details

Shipping weight: 24.0 lb

Need help with this part?

(404) 678-9908 Chat with a product specialist Request a quote

Brand	Watts
Manufacturer part #	T063235
Bypass	No
Connection Size	2"
Connection Type	Female Threaded
Material	Lead Free Bronze
Test Status	Testable
Type	Double Check Valve Assembly

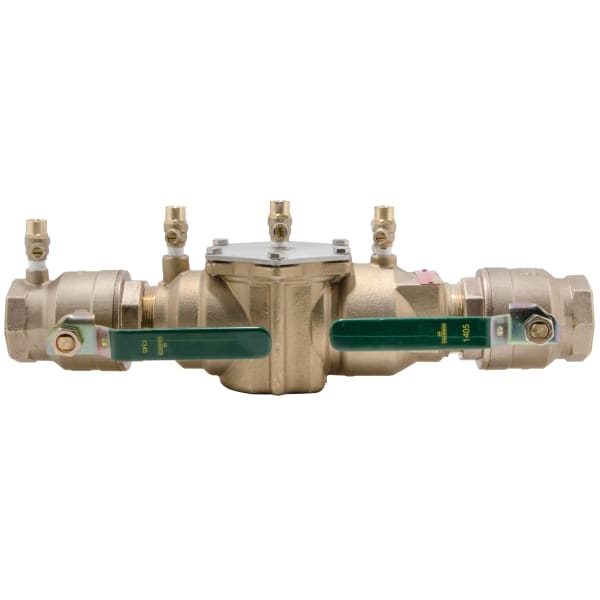

The Watts T063235 (model LF007M1-QT-FZ 2) is a 2 in. lead free double check valve assembly with quarter-turn shutoffs and a freeze sensor. It protects the potable water supply against backsiphonage and backpressure at cross-connections classified as non-health hazards, and it can also protect the service line entrance.

Key features

Two independent, positive-seating check modules
Top entry with a single access cover for in-line repair
Quarter-turn ball valve shutoffs and top-mounted test cocks
Replaceable seats and seat discs
Freeze sensor for Watts SentryPlus Alert; alerts need an add-on connection kit (Wi-Fi, BMS or IMS), sold separately
