1-1/2" 975XL3 Reduced Pressure Principle Backflow Preventer

Roll over image to zoom in Click on image to zoom

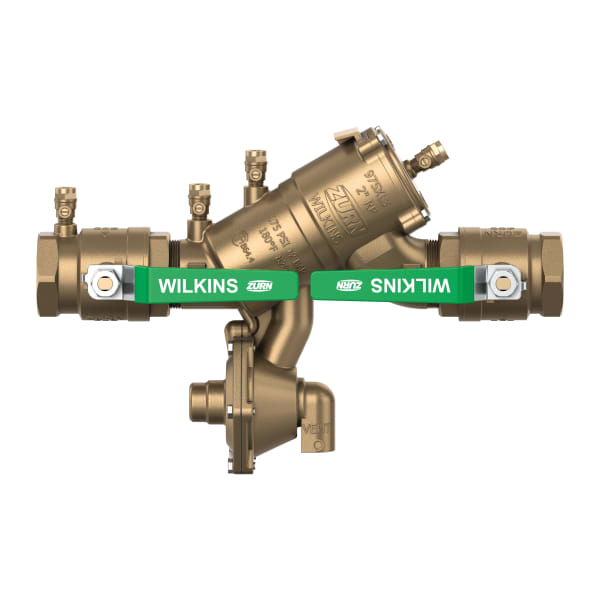

Zurn Wilkins 1-1/2" 975XL3 Reduced Pressure Principle Backflow Preventer

Name: Zurn Wilkins 1-1/2" 975XL3 Reduced Pressure Principle Backflow Preventer
Brand: Zurn Wilkins
SKU: WILK-112-975XL3
Price: 1414.29 USD
Availability: InStock

Zurn WilkinsSKU: WILK-112-975XL3

Price:

$1,414.29

Stock:

Only 10 units left

Quantity:

Usually ships in 1–2 business days.

Pricing a job? Get a written quote →Open a trade account

Questions? Call (404) 678-9908 or chat with us.

Free shipping on orders $99+ · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 17.6 lb
Box size: 17.69 × 11.25 × 6.62 in

⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Application	Plumbing
ASSE Standard	1013
Connection Size	1-1/2" x 1-1/2"
Connection Type	NPT x NPT
Finish/Color	Bronze
Height	4.625"
Length	15.6875"
Material	Bronze
Maximum Working Water Temperature	180 deg F
Mounting Type	Horizontal
Maximum Working Water Pressure	175 psi
Size	1-1/2"
Type	Reduced Pressure Principle Backflow Preventer
Valve Body Material	Bronze
Valve Style	In-line (Backflow, PRVs, TMVs, RVs, etc.)
Weight	16 lbs
Width	9.25"

The Zurn Wilkins 112-975XL3 is a 1-1/2" 975XL3 reduced pressure principle backflow preventer. It protects the potable water supply from backflow caused by backpressure or backsiphonage.

Key features

Reduced pressure principle design
Bronze body
Horizontal installation
ASSE 1013

Specifications

Brand: Zurn Wilkins
Manufacturer part number: 112-975XL3
Size: 1-1/2"
Connections: 1-1/2" NPT x NPT
Body material: Bronze
Maximum working pressure: 175 psi
Maximum water temperature: 180°F
Mounting: Horizontal
Standard: ASSE 1013
Dimensions: 15.6875" L x 9.25" W x 4.625" H
Weight: 16 lb
UPC: 612052317373

Backflow preventers and pressure reducing valves must be installed, and backflow assemblies tested, by a qualified person according to the manufacturer's instructions and local code.
