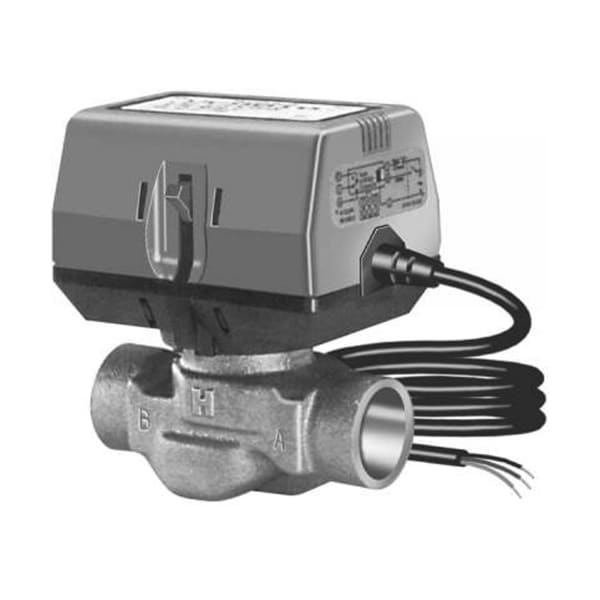

VC Actuator, 2-position, SPST, 100 -130 Vac

Roll over image to zoom in Click on image to zoom

Honeywell Home VC4011ZZ11/U VC Actuator, 2-Position, SPST, 100 -130 Vac

Name: Honeywell Home VC4011ZZ11/U VC Actuator, 2-Position, SPST, 100 -130 Vac
Brand: Honeywell Home
SKU: HONE-VC4011ZZ11/U
Price: 91.39 USD
Availability: InStock

Honeywell HomeSKU: HONE-VC4011ZZ11/U

Planning a zoning system? Our free Zone Planner picks the panel, dampers or zone valves and thermostats for every floor, with one-click cart.

Price:

$91.39

Stock:

In stock (17 units), ready to be shipped

Quantity:

Usually ships in 1–2 business days.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Free shipping on orders $99+ · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 0.86 lb
Box size: 4.55 × 3.45 × 3.45 in

Supply Voltage	100V to 130V
Frequency	50 Hz; 60 Hz
Electrical Connections	Cable
Close-off Pressure	60 psid
Fluid Temperature	203 F
Ambient Temperature	32 F to 150 F
Operating Humidity	5 to 95% RH, non-condensing
Mounting	Direct Coupled
Application	HVAC
Used With	VC Series Valve
Dimensions	2.8 in. high x 3.7 in. wide x 2.7 in. deep
UL	UL Recognized, File# MH11826
CSA	CSA Certified: LR1322-367
Weight (lb)	0.73 lb
Weight (kg)	0.33 kg
Materials	Plastic housing
Power Consumption	Driving-- 6 VA
Shipping and Storage Temperature Range (F)	-40 F to +150 F
Approvals, CE	89/336/ECC, 73/23/EEC
Environmental, Electrical or Ingress Protection Rating	IP40,Double Insulated
Internal Auxiliary Switch	0
Actuator Type	Valve
Control Signal	Two position; SPST
Fail Safe Mode	Stays in place
Stroke (in.)	0.4 in.
Cable	Molded strain relief
Timing, Nominal	Driving @ 60 Hz-- 6 sec
Shaft Adapter Type	Self-alignment
Manual operation	Lever

Installation Instructions PDF ↗

The VC4011ZZ11 is a two-position actuator for Honeywell Home VC series valve bodies. It mounts on the valve assembly and drives the cartridge open and closed on a signal from the zone control.

Two-position control is the standard arrangement for residential zoning: the actuator drives fully open on a call for heat and returns fully closed when the call ends.

What a complete VC zone valve takes: a valve body, a cartridge, and an actuator, ordered separately. This listing is the actuator.
