| Connection Type | 6-pin Molex(TM) connector |
| Supply Voltage | 24 V AC |
| Frequency | 60 Hz |
| Application | HVAC |
| Used With | VC Series Valve |
| Includes | Trane label |
| Dimensions | 2.8 in, 70 mm high x 3.7 in, 94 mm wide x 2.7 in, 68 mm deep |
| Approvals | UL Recognized, File# MH11826, CSA Certified: LR1322-367, CE Approval: 89/336/ECC, CE Approval: 73/23/EEC |
| Compatible With | Use in cold, warm, and hot water applications |
| Control Signal | SPST, Two position |
| Warranty | 1 Year |
| Fluid Temperature (Max) | 203 °F, 95 °C |
| Mounting Type | Direct Coupled |
| Ambient Temperature (Min) | 32 °F, 0 °C |
| Ambient Temperature (Max) | 150 °F, 65 °C |
| Operating Relative Humidity (Min) | 5% Non-condensing |
| Operating Relative Humidity (Max) | 95% Non-condensing |
| Protection Class | IP40,Double Insulated |
| Fail-Safe Operation Type | Stays in place |
| Drive Time | 6 sec |
| Power Consumption | 6 VA |
| Differential pressure for close-off (Max) | 60 psid, 400 kPa |
| Number of Internal Auxiliary Switches | 0 |
| Actuator Connection | Valve |
| Connection Length | 8 in., 0.2 m |
| Stroke (Max) | 0.4 in, 10 mm |
| Product Weight | 0.57 lb, 0.26 kg |
| Housing Material | Plastic |
Description

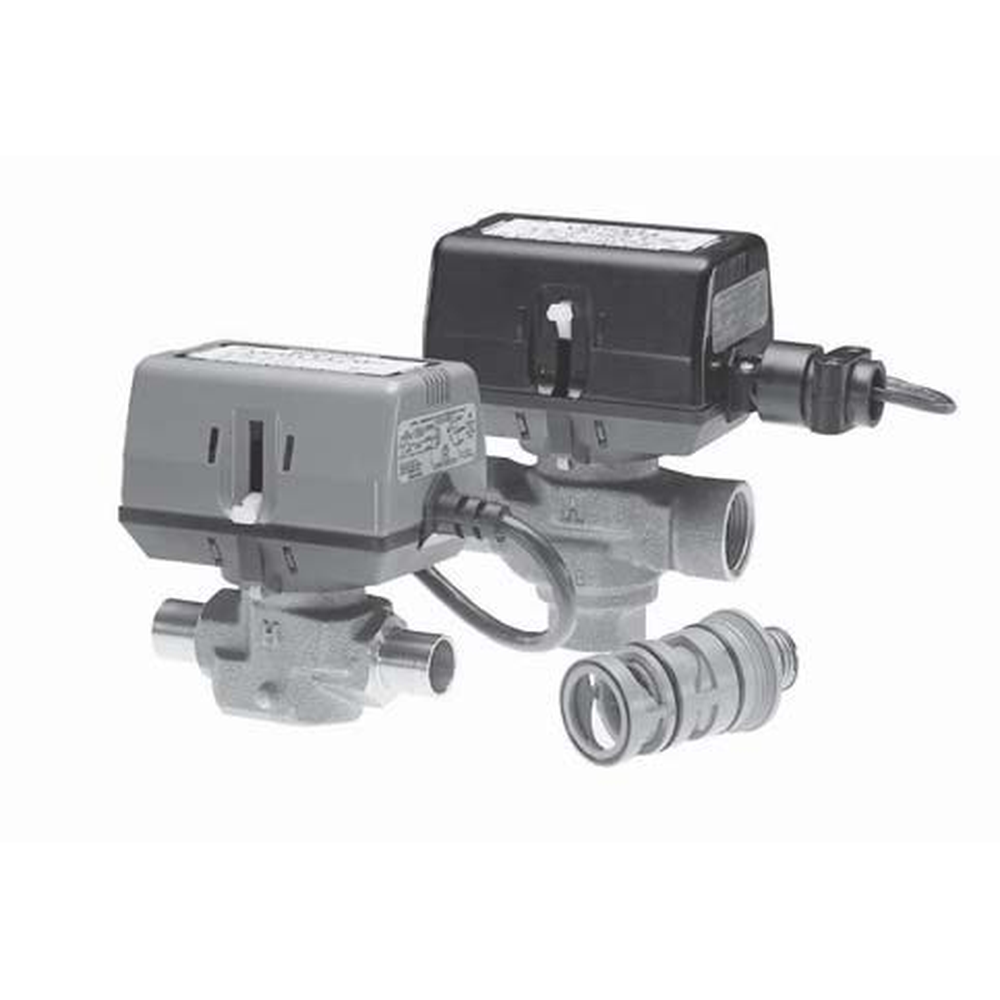

The VC8110ZZ32 is a two-position actuator for Resideo (Honeywell Home) VC series valve bodies. It mounts on the valve assembly and drives the cartridge open and closed on a signal from the zone control.
Two-position control is the standard arrangement for residential zoning: the actuator drives fully open on a call for heat and returns fully closed when the call ends.
What a complete VC zone valve takes: a valve body, a cartridge, and an actuator, ordered separately. This listing is the actuator.
VC valve bodies and cartridges this actuator works with
- Resideo VCZAA1100/E 2-way 1/2 in Sweat VC Valve Assembly 3.5 Cv and linear flow
- Resideo 2-way 3/4 in fNPT VC Valve Assy 4.7 Cv and linear flow VCZAL1100/E
- Resideo 2-way 3/4 in fNPT VC Valve Assy 4.7 Cv and linear flow VCZAL3100/U
- Resideo VCZAR1100/U 2-way 1 in fNPT VC Valve Assy 6.6 Cv and linear flow
- Resideo VCZBB1100/U 2-way 1/2 in fNPT VC Valve Assembly 3.5 Cv and linear flow
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: VC8110ZZ32/U
- Series: VC
- Control type: Two-position
- Category: Zone Valve Actuators
