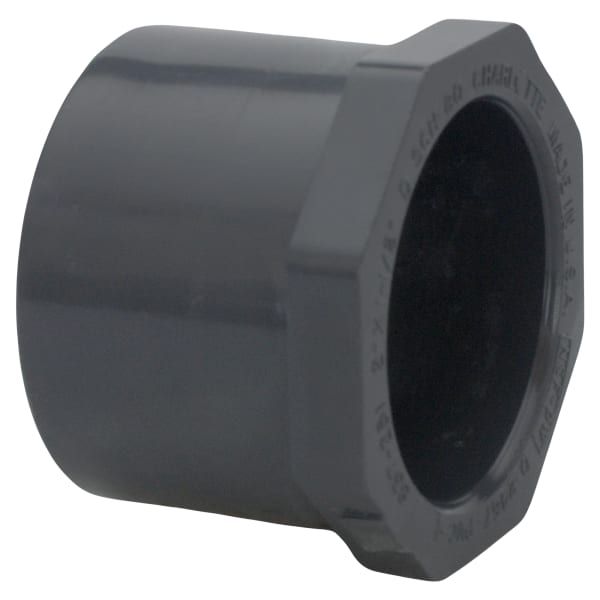

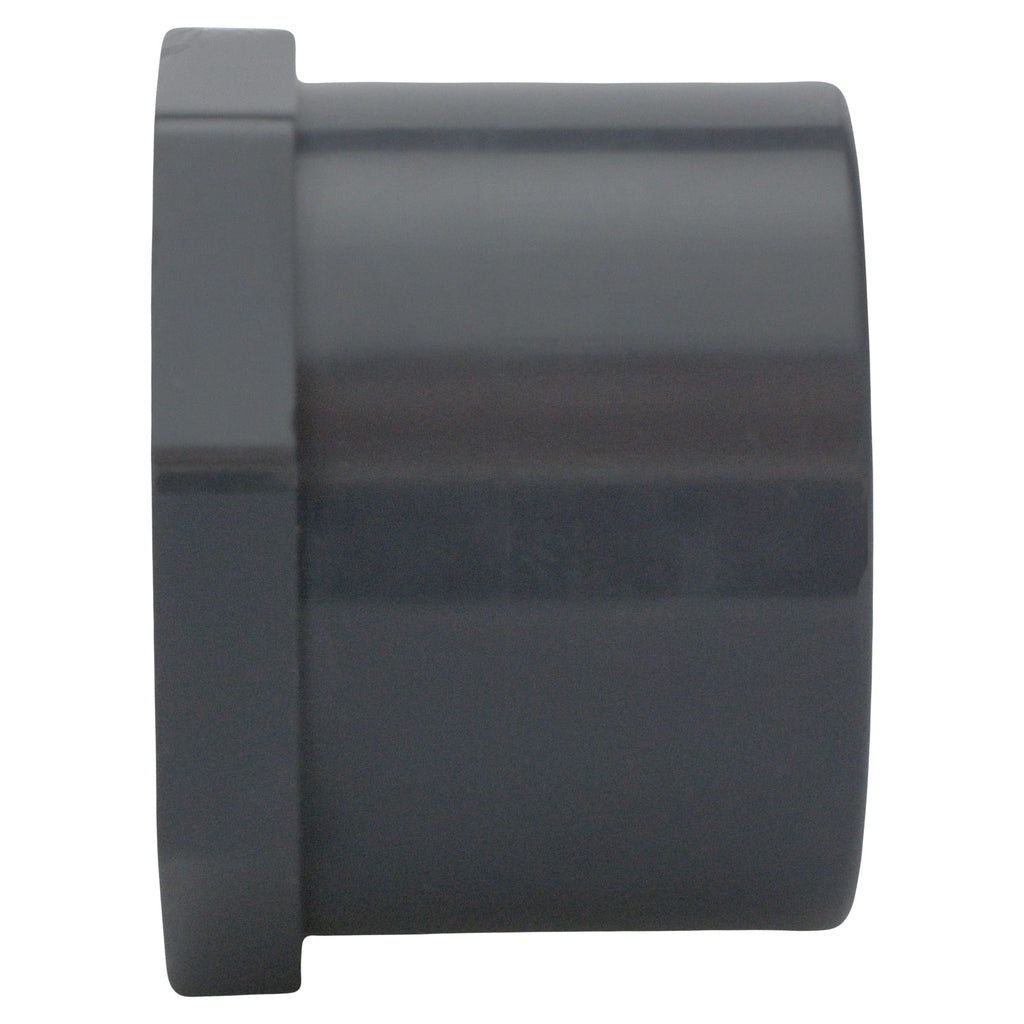

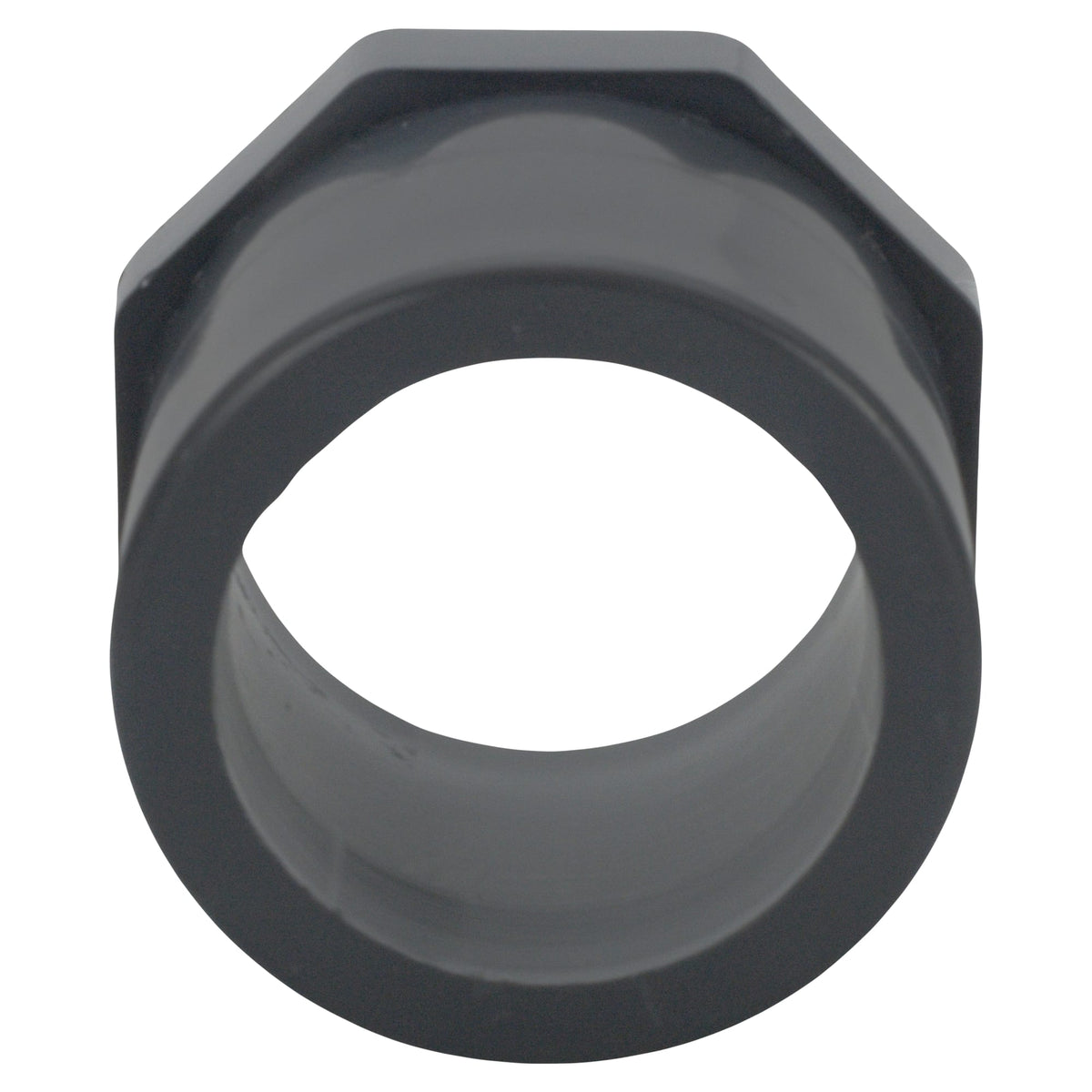

Charlotte Pipe PVC-08107-4000 2" x 1-1/2" PVC SCH80 Bushing - Spigot x Socket

Charlotte Pipe PVC-08107-4000 is a 2" x 1-1/2" PVC Schedule 80 bushing, Spigot x Socket (Spigot = spigot (pipe-size end that fits into a hub or socket); Socket = socket (takes the pipe)).

A bushing threads into a larger female fitting to reduce it: male thread outside, smaller female thread inside.

Schedule 80 PVC fittings are the heavy-wall pressure fittings, made to ASTM D2467 and grey to tell them apart from Schedule 40. The thicker wall gives a higher pressure capacity and allows threaded connections, which is why Schedule 80 is used on industrial, process and commercial pressure lines. Like all PVC, they are limited to 140°F.

Specifications

• Brand: Charlotte Pipe
• Manufacturer Part #: PVC-08107-4000
• System: PVC Schedule 80
• Size: 2" x 1-1/2"
• Type: Bushing
• Connections: Spigot x Socket
• Material: PVC, Schedule 80 (heavy wall)
• Standard: ASTM D2467
• Temperature: 140°F max
• Joining: Primer and PVC solvent cement
• Category: PVC SCH 80 Fittings
