Name: Resideo R4222D1021/U 208/240 Vac General Purpose Relay with DPDT Switching
Brand: Resideo
SKU: HONE-R4222D1021/U
Price: 32.39 USD
Availability: InStock

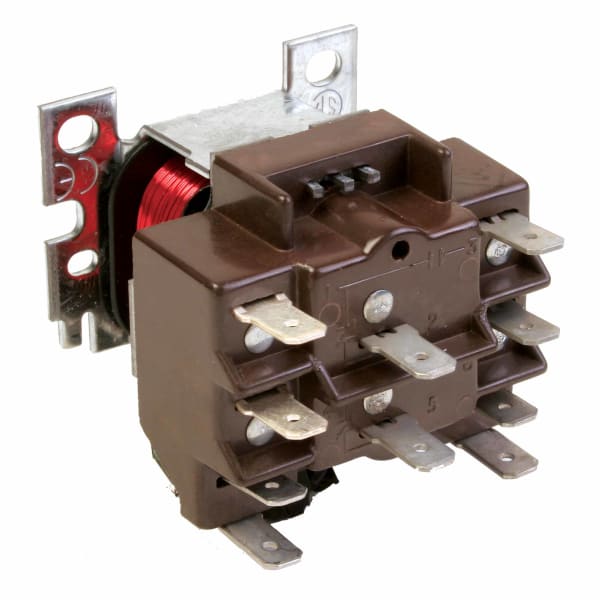

Resideo 208/240 Vac General Purpose Relay with DPDT switching

Roll over image to zoom in Click on image to zoom

Frequency	50 Hz; 60 Hz
Electrical Connections	1/4 in. quick-connect terminals
Dimensions	1 7/8 in. high x 2 5/32 in. wide x 2 3/8 in. deep
UL	UL Component Recognized
CSA	Approved
Temperature Ratings (F)	-20 F to +155 F
Switching	DPDT
Pilot Duty Ratings	Minimum: 3 VA @ 24 Vac, 120 Vac, & 480 Vac; Maximum: 25 VA @ 24 Vac, 125 VA @ 120 Vac, 240 Vac, & 480 Vac; Resistive: 3 A @ 277 Vac (0.75 power factor); PowerPile: (Normally Open Contacts Only) 0.25 A @ 0.25 to 12 Vdc
Contact Ratings (AFL)	3 A @ 480 Vac; 6 A @ 208 Vac, 240 Vac, 277 Vac; 12 A @ 120 Vac
Contact Ratings (ALR)	18 A @ 480 Vac; 35 A @ 208 Vac, 240 Vac, 277 Vac, 60 A @ 120 Vac
Contact Ratings (resistive)	10 A @ 480 Vac; 20.8 A @ 120 Vac, 208 Vac, 240 Vac, 277 Vac
Coil Ratings Voltage	208V; 240 V

Product Data for R4222, R4228, R8222, R8228 Switching Relays (English) PDF ↗

The R4222D1021 is a general purpose relay from Resideo (Honeywell Home), 208/240 V, DPDT switching.

A relay lets a small control signal switch a much larger load. The thermostat or control board energizes a coil; the coil pulls contacts closed; the contacts carry the current that runs a blower, a circulator or an electric heat element. Nothing on the thermostat side ever sees line voltage.

DPDT — double pole, double throw: two independent circuits switched together, each with a normally open and a normally closed contact. It is what you need when one call has to make one thing and break another at the same instant.

Match the coil voltage and the contact rating to what you are replacing. A relay with the right coil but an undersized contact will work on the bench and weld shut in service.

Brand: Resideo (Honeywell Home)
Manufacturer Part #: R4222D1021/U
Type: General purpose relay
Switching: DPDT
Voltage: 208/240 V
UPC: 085267075756
Category: Relays

Full Specifications

Application	Powerpile (millivoltage) applications, Pilot duty applications, Power pole applications
Product Features	Molded terminal numbers and circuit diagram on top of relay provide easy identification for wiring and checking system operation, Untaped coil assures cooler operation, Laminated magnet construction for higher efficiency, Base designed for easy replacement of competitive relays, Plug compatible with Steveco 90-340 and Mars 90340.
Approvals and Standards	UL Component Recognized, CSA Approved
Coil Rating Voltage	208 V AC, 240 V AC
Coil Connection Size	1/4 in, 6 mm
Coil Connection Type	Double Quick Connects
Pilot Duty Rating	Minimum: 3 VA @ 24 V AC, 120 V AC, 480 V AC, Maximum: 25 VA @ 24 V AC,, Maximum: 125 VA @ 120 V AC, 240 V AC, & 480 V AC, Resistive: 3 A @ 277 V AC (0.75 power factor), Resistive: 3 A @ 277 V AC (0.75 power factor)
Number of Poles	2 Poles
Operating Frequency	50 Hz, 60 Hz
Power Supply Frequency	50 Hz, 60 Hz
Switch Action	DPDT
Warranty	1 Year
Ambient Operating Temperature (Min)	-20 °F, -29°C
Ambient Operating Temperature (Max)	155 °F, 68 °C
Mounting Type	Screw Mount
Product Height	1.88 in, 48 mm
Product Length	2.38 in, 60 mm
Product Width	2.16 in, 55 mm
