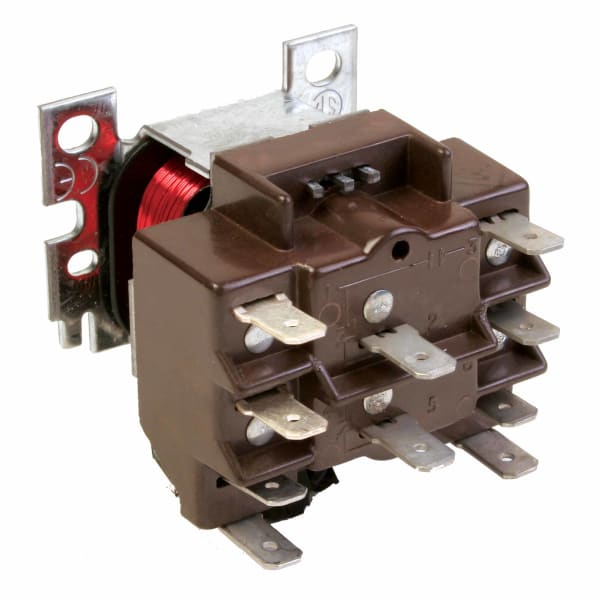

Name: Resideo R8222B1067/U General Purpose Relay with SPDT Switching
Brand: Resideo
SKU: HONE-R8222B1067/U
Price: 26.89 USD
Availability: InStock

Resideo General Purpose Relay with SPDT Switching

Roll over image to zoom in Click on image to zoom

Frequency	50 Hz; 60 Hz
Electrical Connections	1/4 in. quick-connect terminals
Dimensions	1 7/8 in. high x 2 5/32 in. wide x 2 3/8 in. deep
UL	UL Listed: File No. E59779, Guide No. NLDX2
CSA	Certified: File No. LR35066, Guide No. 184-N-13.13
Temperature Ratings (F)	-20 F to +155 F
Switching	SPDT
Pilot Duty Ratings	Minimum: 3 VA @ 24 Vac, 120 Vac, & 480 Vac; Maximum: 25 VA @ 24 Vac, 125 VA @ 120 Vac, 240 Vac, & 480 Vac; Resistive: 3 A @ 277 Vac (0.75 power factor); PowerPile: (Normally Open Contacts Only) 0.25 A @ 0.25 to 12 Vdc
Contact Ratings (AFL)	3 A @ 480 Vac; 6 A @ 208 Vac, 240 Vac, 277 Vac; 12 A @ 120 Vac
Contact Ratings (ALR)	18 A @ 480 Vac; 35 A @ 208 Vac, 240 Vac, 277 Vac, 60 A @ 120 Vac
Contact Ratings (resistive)	10 A @ 480 Vac; 20.8 A @ 120 Vac, 208 Vac, 240 Vac, 277 Vac
Coil Ratings Voltage	24 Vac

Product Data for R4222, R4228, R8222, R8228 Switching Relays (English) PDF ↗

The R8222B1067 is a general purpose relay from Resideo (Honeywell Home), SPDT switching.

A relay lets a small control signal switch a much larger load. The thermostat or control board energizes a coil; the coil pulls contacts closed; the contacts carry the current that runs a blower, a circulator or an electric heat element. Nothing on the thermostat side ever sees line voltage.

SPDT — single pole, double throw: one circuit switched between two outputs, giving a normally open and a normally closed contact from the same coil.

Match the coil voltage and the contact rating to what you are replacing. A relay with the right coil but an undersized contact will work on the bench and weld shut in service.

Brand: Resideo (Honeywell Home)
Manufacturer Part #: R8222B1067/U
Type: General purpose relay
Switching: SPDT
UPC: 085267000406
Category: Relays

Full Specifications

Application	Powerpile (millivoltage) applications, Pilot duty applications, Power pole applications
Product Features	Molded terminal numbers and circuit diagram on top of relay provide easy identification for wiring and checking system operation, Open coil assures cooler operation, Laminated magnet construction for higher efficiency, Base designed for easy replacement of competitive relays, Plug compatible with Steveco 90
Approvals and Standards	UL Listed: File No. E59779, Guide No. NLDX2, CSA Certified: File No. LR35066, Guide No. 184
Compatible With	Refrigeration, Air Conditioning
Coil Rating Voltage	24 V ac
Coil Connection Size	1/4 in, 6 mm
Coil Connection Type	Quick Connect
Pilot Duty Rating	Minimum: 3 VA @ 24 V AC, 120 V AC, 480 V AC, Maximum: 25 VA @ 24 V AC,, Maximum: 125 VA @ 120 V AC, 240 V AC, & 480 V AC, Resistive: 3 A @ 277 V AC (0.75 power factor), Resistive: 3 A @ 277 V AC (0.75 power factor)
Number of Poles	1 Pole
Operating Frequency	60 Hz
Power Supply Frequency	50 Hz, 60 Hz
Switch Action	SPDT
Warranty	1 Year
Ambient Operating Temperature (Min)	-20 °F, -29°C
Ambient Operating Temperature (Max)	155 °F, 68 °C
Mounting Type	Screw Mount
Product Height	1.87 in, 48 mm
Product Length	2.37 in, 66 mm
Product Width	2.16 in, 55 mm
