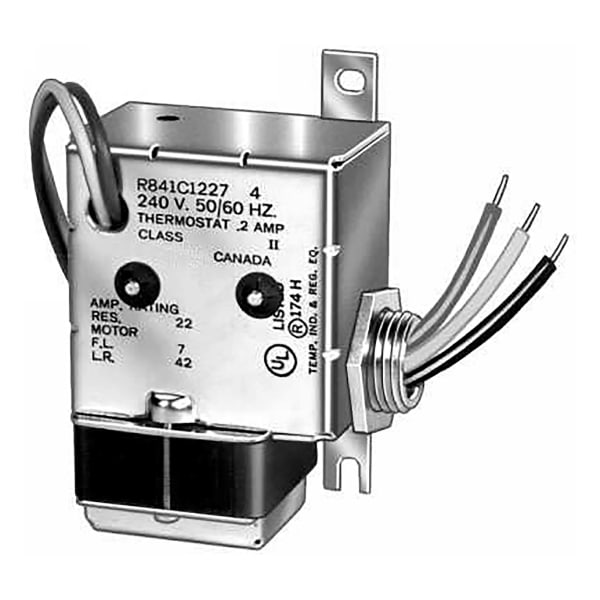

Name: Resideo R841C1227/U 24 V SPST Switching Electric Heater Relay
Brand: Resideo
SKU: HONE-R841C1227/U
Price: 125.29 USD
Availability: InStock

24 V SPST switching Electric Heater Relay

Roll over image to zoom in Click on image to zoom

Frequency	50 Hz; 60 Hz
Electrical Connections	Leadwires
Dimensions	3 7/8 in. high x 2 13/16 in. wide x 1 1/2 in. deep
UL	UL Listed
CSA	Certified
Temperature Ratings (F)	-20 F to +150 F
Switching	SPST
Contact Ratings (AFL)	7.0 A @ 208 Vac, 240 Vac, 277 Vac; 14 A @ 120 Vac
Contact Ratings (ALR)	42 A @ 208 Vac, 240 Vac, 277 Vac; 84 A @ 120 Vac
Contact Ratings (resistive)	22 A @ 120 Vac, 208 Vac, 240 Vac; 19 a @ 277 Vac
Coil Ratings Voltage	24 V

Product Data for R841C, R841D, R841E Electric Heating Relays (English) - Legacy Product Do PDF ↗

The R841C1227 is a heating relay from Resideo (Honeywell Home), 24 V, SPST switching.

A relay lets a small control signal switch a much larger load. The thermostat or control board energizes a coil; the coil pulls contacts closed; the contacts carry the current that runs a blower, a circulator or an electric heat element. Nothing on the thermostat side ever sees line voltage.

SPST — single pole, single throw: one circuit, on or off. The simplest arrangement and the one most electric heat relays use.

Match the coil voltage and the contact rating to what you are replacing. A relay with the right coil but an undersized contact will work on the bench and weld shut in service.

Brand: Resideo (Honeywell Home)
Manufacturer Part #: R841C1227/U
Type: Heating relay
Switching: SPST
Voltage: 24 V
UPC: 085267081528
Category: Relays

Full Specifications

Application	SPST switching Electric Heater Relay
Product Features	Operate with each cycle of the thermostat (4 to 6 cycles per hour), Each relay switches up to a 5,000 W load, Contacts make and break in about 75 seconds, Mount in any position, Includes 1/2 in. (13 mm) male conduit bushing
Approvals and Standards	UL Listed, CSA Certified
Coil Rating Voltage	24 V ac
Coil Connection Type	Leadwire
Number of Poles	1 Pole
Operating Frequency	50 Hz, 60 Hz
Power Supply Frequency	50 Hz, 60 Hz
Switch Action	SPST
Warranty	1 Year
Ambient Operating Temperature (Min)	-20 °F, -29°C
Ambient Operating Temperature (Max)	150 °F, 66 °C
Product Height	3.87 in, 98 mm
Product Length	1.5 in, 38 mm
Product Width	2.81 in, 71 mm
