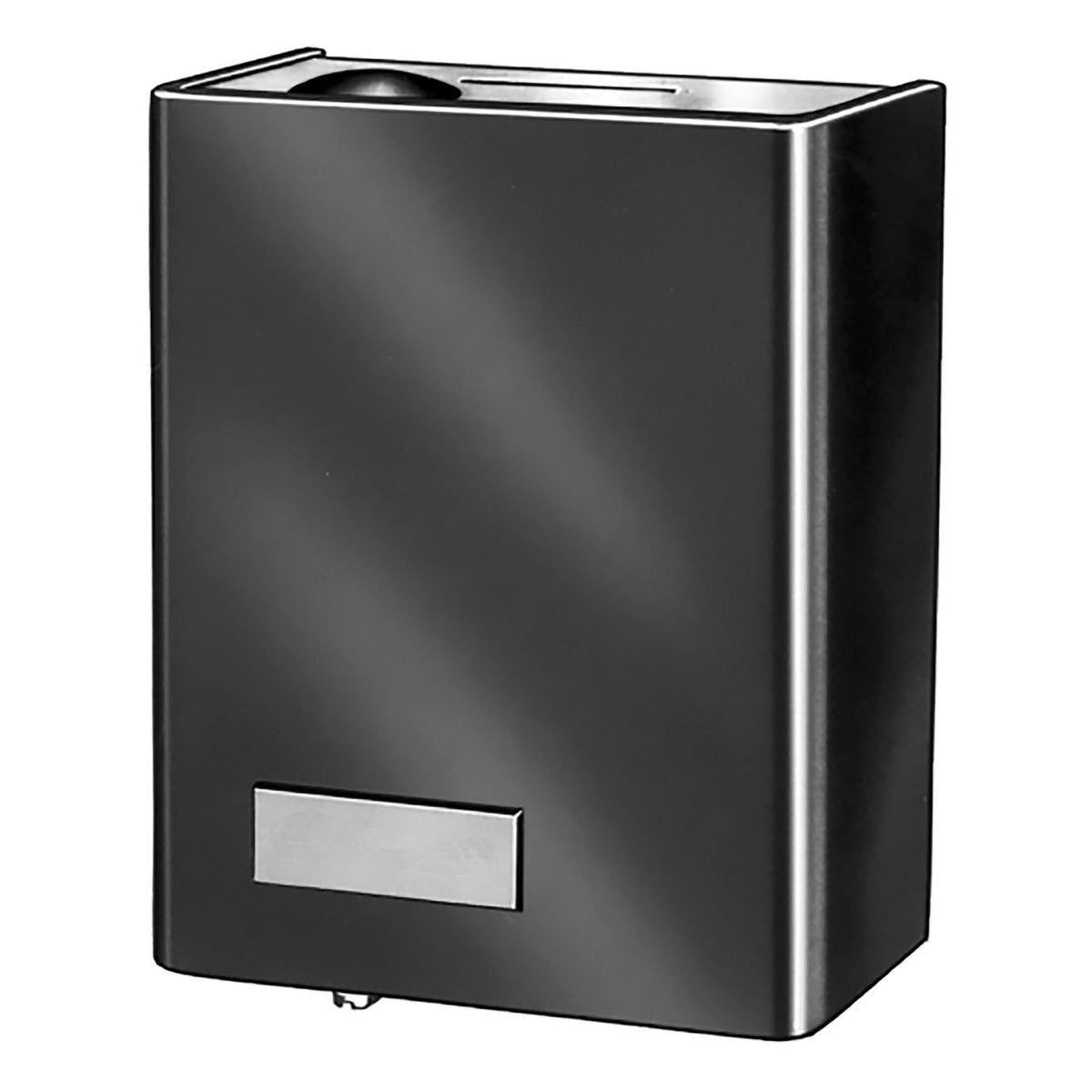

Resideo R847A1085/U Line Voltage Relay, 120 VAC 60 Hz, DPST or SPST

Item #: HONE-R847A1085/U
Mfr. part #: R847A1085/U
UPC: 085267081627

$168.46

Free shipping on orders $99+
30-day returns on unused items. Details
Secure checkout

Shipping details

Shipping weight: 2.4 lb
Box size: 6.3 × 4.5 × 3.5 in

Need help with this part?

(404) 678-9908 Chat with a product specialist Request a quote

Brand	Resideo
Manufacturer part #	R847A1085/U
UPC	085267081627

Relay for DPST or SPST switching of line voltage loads, 120 V 60 Hz.

Features

Internal, flexible leads permit SPST or DPST switching

Specifications

Brand: Resideo (Honeywell Home)
Manufacturer Part #: R847A1085/U
Application: DPST switching relay for 24 volt 2 wire thermostat control of high-curremt loads, SPST switching relay for 24 volt 2 wire thermostat control of high-curremt loads
Approvals and Standards: UL Listed: File No. SA481, Guide No. SDF4, CSA Certified: File No. LR1620
Includes: Integral transformer, Enclosure
Coil Electrical Rating: 8.4 VA (Sealed), 21.4 VA (inrush)
Coil Connection Type: Main 2 Wire, Control Circuit 2 Wire
Power Supply Frequency: 50 Hz, 60 Hz
Switch Action: DPST or SPST
Warranty: 1 Year
Product Height: 5.25 in, 133 mm
Product Length: 2.75 in, 70 mm
Product Width: 4.25 in, 108 mm
UPC: 085267081627
Country of Origin: MX
Category: Relays
