3/4" Lead Free Flow Measurement Valve, Solder Connections

Roll over image to zoom in Click on image to zoom

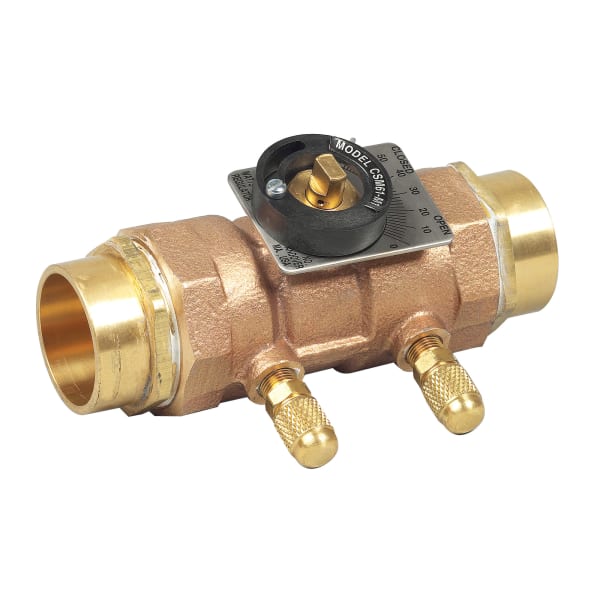

Watts 0856810 3/4" Lead Free Flow Measurement Valve, Solder Connections

Name: Watts 0856810 3/4" Lead Free Flow Measurement Valve, Solder Connections
Brand: Watts
SKU: WATT-0856810
Price: 303.64 USD
Availability: InStock

WattsSKU: WATT-0856810

Price:

$303.64

Stock:

Only 1 unit left

Quantity:

Usually ships in 1–2 business days.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Ships from Seattle, WA · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 0.96 lb
Box size: 3.25 × 2.5 × 3.75 in

⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Connection Size	3/4"
Connection Type	Socket
Material	Lead Free Brass

Brand: Watts
Manufacturer Part #: 0856810
UPC: 098268463446

Features

Watts LFCSM-61-M1-S, 3/4" solder (sweat) connections
Ball-type flow measurement and balancing valve for low to medium flow HVAC units and domestic hot water recirculation
Typical uses: fan coil units, water source heat pumps, reheat and panel coils, unit heaters and ventilators, finned radiation, convectors, small pumps and branch lines
Large position indicator plate with memory stop for repeatable balancing; bi-directional, so it cannot be installed backwards
Positive shutoff, so no separate service valve is needed; blowout-resistant stem
Brass 1/4" SAE 45° flare pressure taps for flow readings, with integral drain port opposite the taps
Lead free brass body and drain plug; Viton packing; carbon/glass-filled PTFE seats
Rated 125 psi max working pressure at up to 200°F (95-5 solder joints)
Certified to NSF/ANSI 61-G and 372; approx. 3-1/8 in long, 1.3 lb
