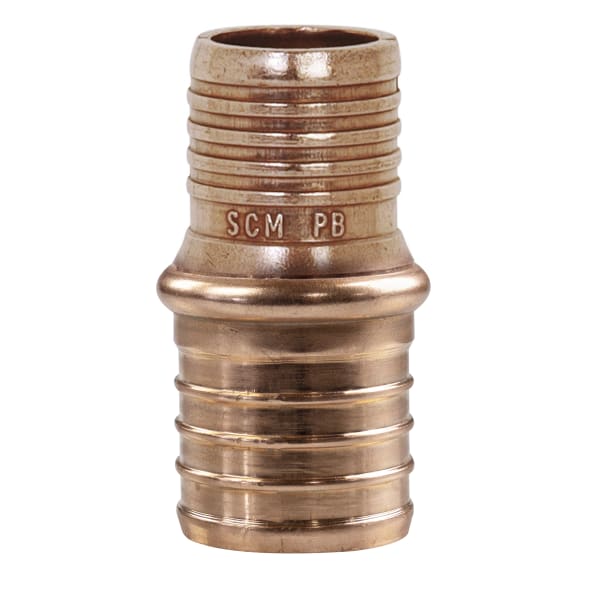

Sioux Chief 645X3G is a 3/4" F1807 crimp x 3/4" polybutylene (PB, F1380) straight adapter in copper.
It adapts an existing polybutylene (PB, ASTM F1380) line to new PEX. Each adapter is bagged with one natural copper PB crimp ring and one black copper PEX crimp ring, and is for use with PEX SDR9 tube only. F1807 joints are made on SDR9 PEX tube with a copper crimp ring or a stainless V-Sleeve compression sleeve and the matching crimp or compression tool.
Match the connection standard (F1807 crimp, F1960 expansion or F2159 poly crimp) to the PEX tube, rings and tools already on the job before ordering.
Specifications
-
Brand: Sioux Chief
-
Manufacturer Part #: 645X3G
-
Connections: 3/4" F1807 crimp x 3/4" polybutylene (PB, F1380)
-
Material: Copper
-
Standards: ASTM F1807, CSA B137.5, NSF/ANSI 14, NSF/ANSI/CAN 61
-
UPC: 739236482563
-
Category: F1807 Crimp Fittings
See also: F1807 crimp fittings, PEX fittings, all Sioux Chief.
