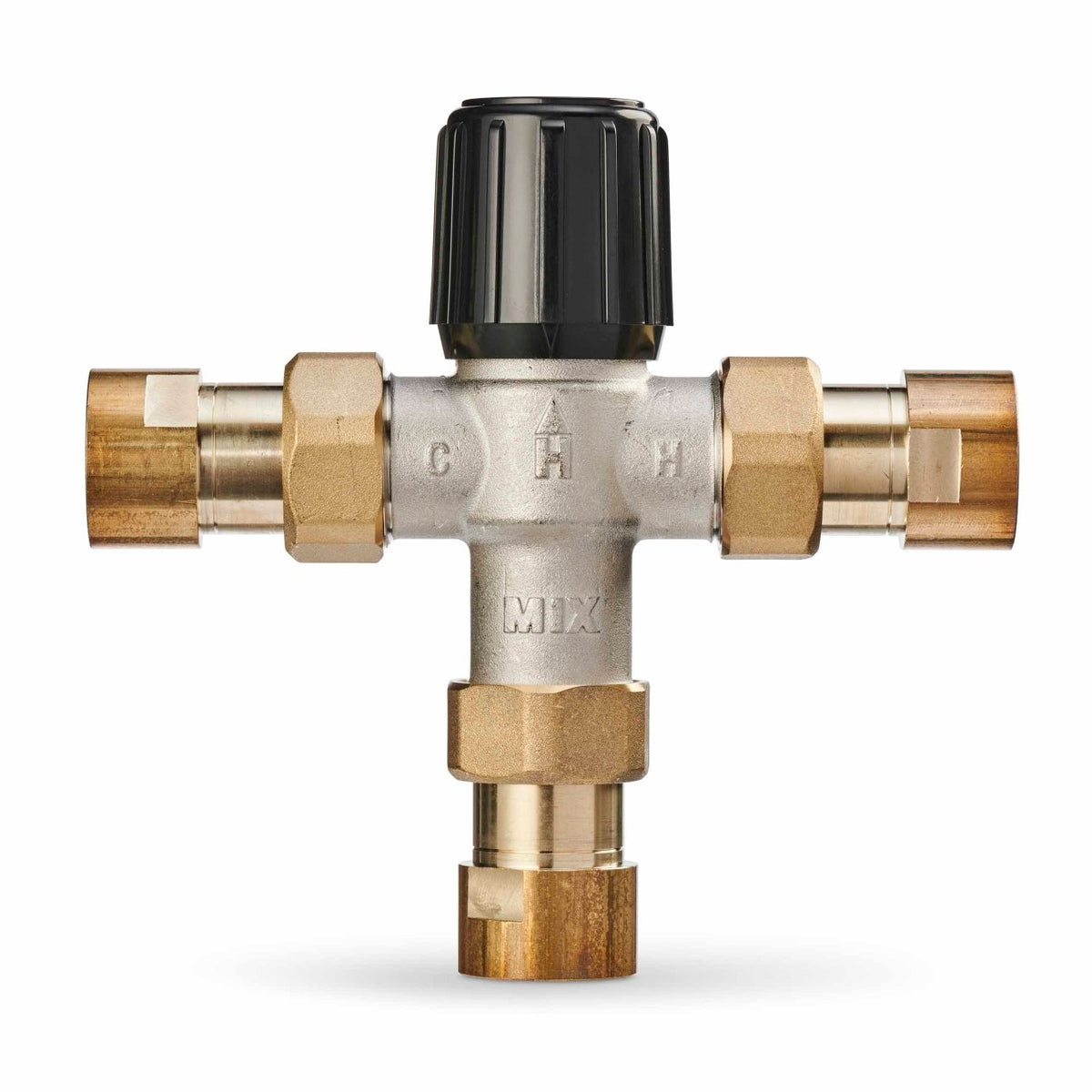

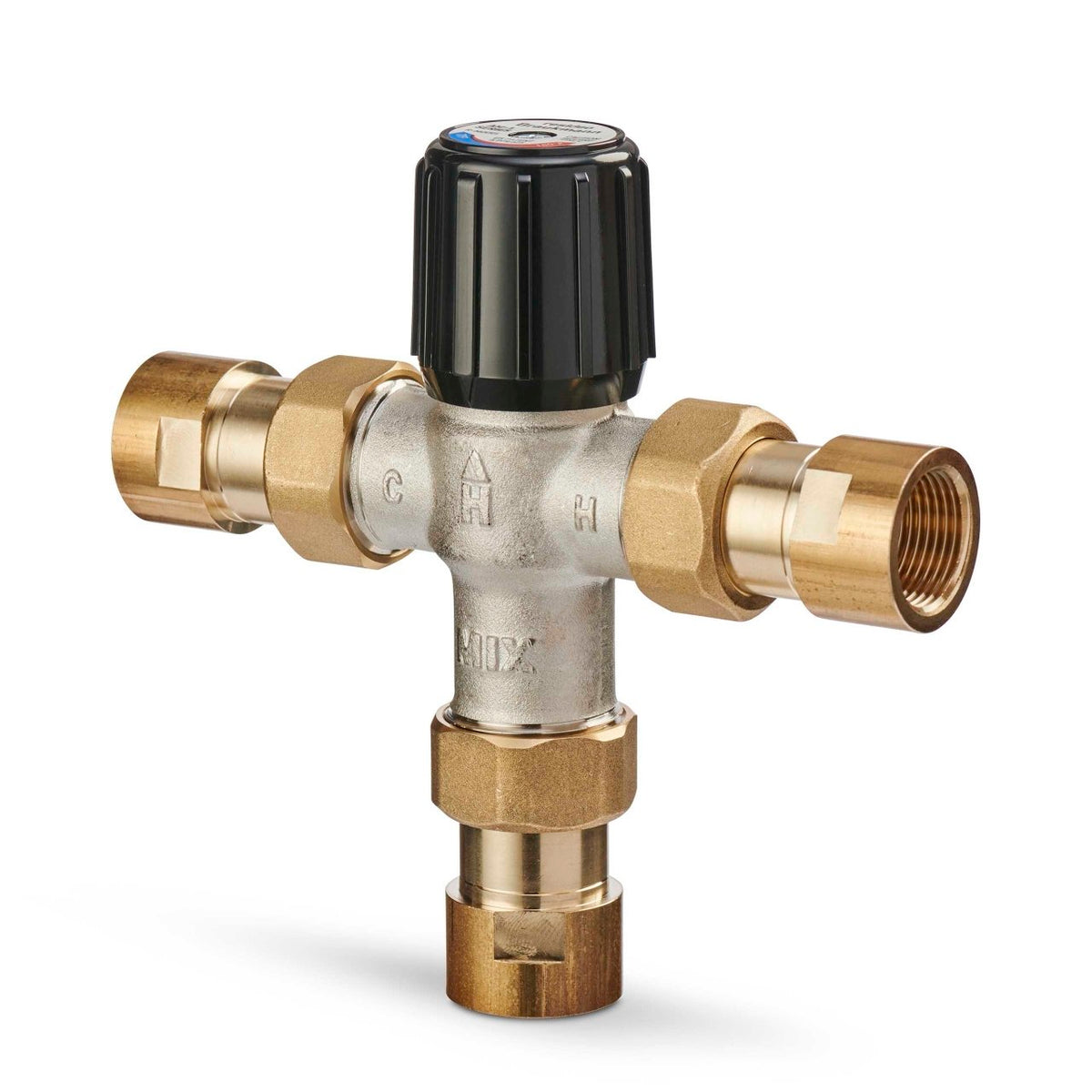

Resideo AM100R-UT-1/U AM-1 Mixing Valve, 1/2 in Threaded Union, 80–180°F, Heating Only

AM-1 series mixing valve, 1/2 in, with threaded union connections and an 80–180°F range, for heating only with no approvals.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: AM100R-UT-1/U
• Controlled Media: Non Potable Water
• Re-Circulation: No
• Color: Metallic
• Includes: Check Valves on Hot and Cold Inlets
• Product Height: 5.6 in, 143 mm
• Product Length: 4.8 in, 122 mm
• Warranty: 1 Year
• Adjustment Means: Handwheel
• Cold Inlet Temperature (Min): 39 °F, 27 °C
• Cold Inlet Temperature (Max): 80 °F, 27 °C
• Flex Connector Included: No
• Flow Coefficient: 3.9 Cv
• Flow Rate (Min): 0.50 gpm, 1.9 lpm
• Flow Rate (Max): 8 gpm, 30.1 lpm
• Hot Inlet Temperature (Min): 120 °F, 49 °C
• Hot Inlet Temperature (Max): 180 °F, 82 °C
• Lead Free: No
• Media Temperature (Max): 212 °F, 100 °C
• Number of Check Valves: 2
• Operating Mixing Temperature (Min): 70 °F, 21 °C
• Operating Mixing Temperature (Max): 180 °F, 82 °C
• Operating Pressure (Max): 150 psi, 1034 kPa
• Seal Material: EPDM Rubber
• Valve Body Material: Teflon-coated, Nickel-plated Brass
• Accessories: AM100-SB/U, AM1-TAIL100UP-LF, AM1-TAIL1003UP-LF, AM-1-025RP/U, AM1-TG100-US-LF/U
• Connection Size: 1/2 in
• Connection Type: Union NPT
• Nominal Diameter: DN15
• Number of Connections: 3
• Valve Body Pattern: Straight Through
• UPC: 085267824934
• Country of Origin: MX
• Category: Mixing Valve - Heating Only
