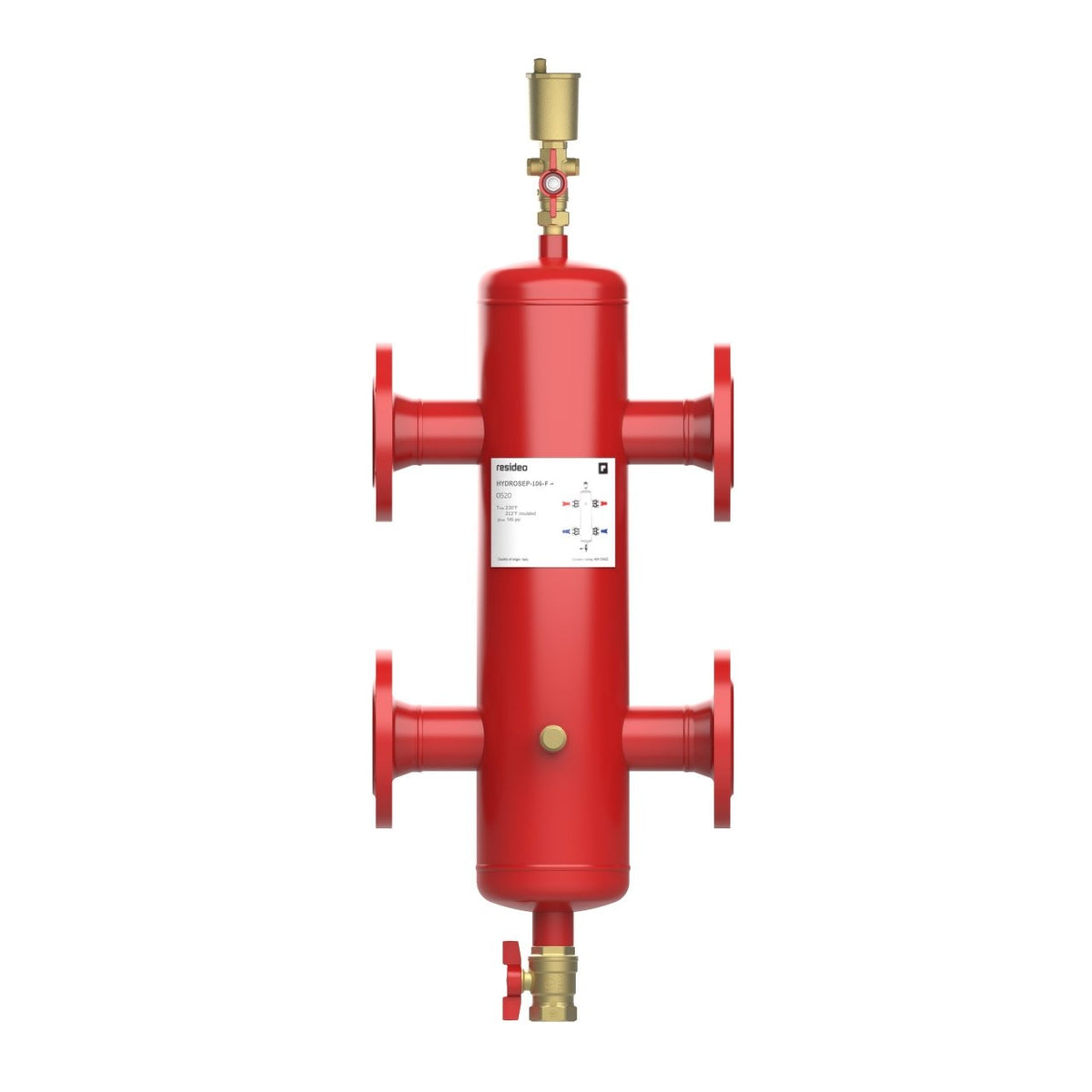

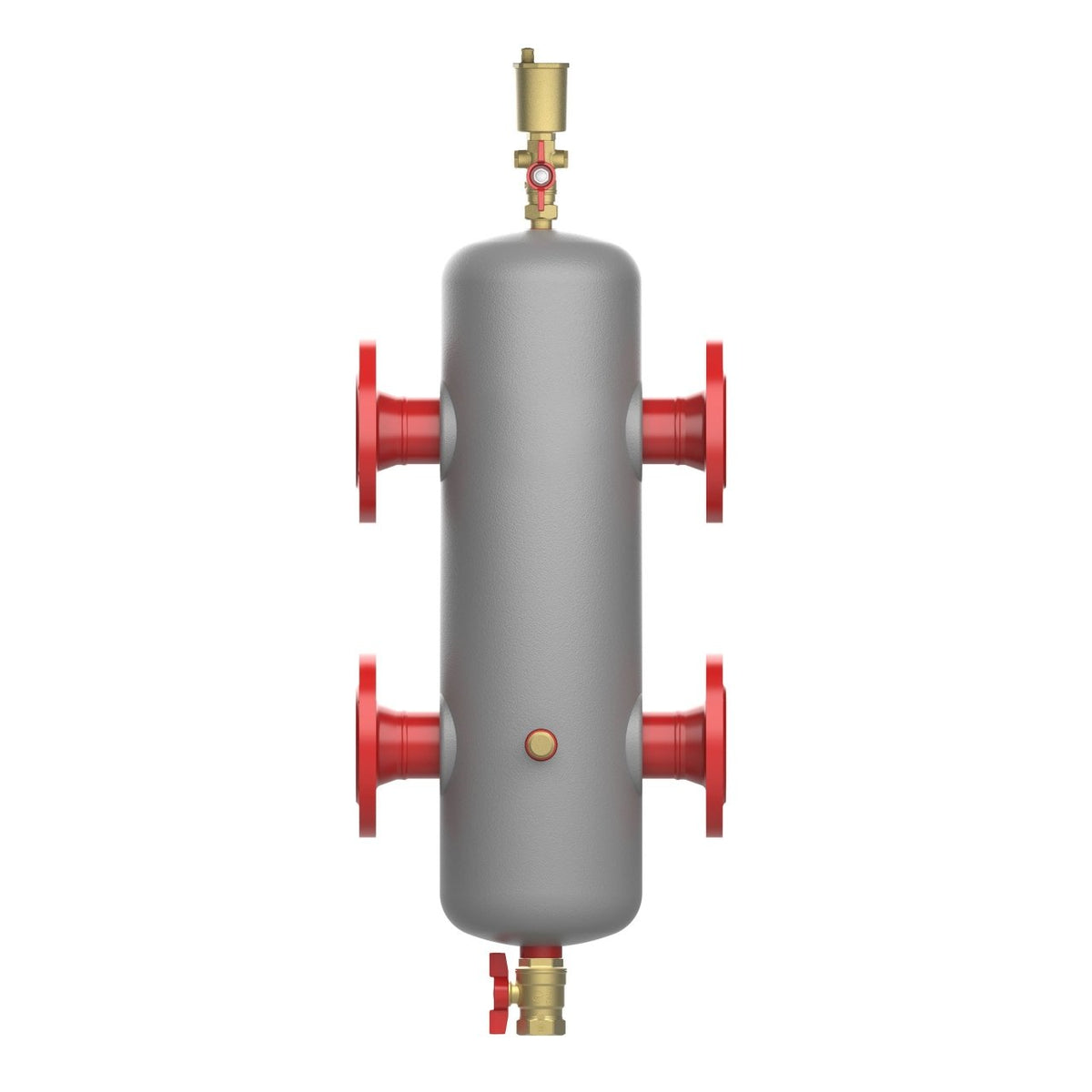

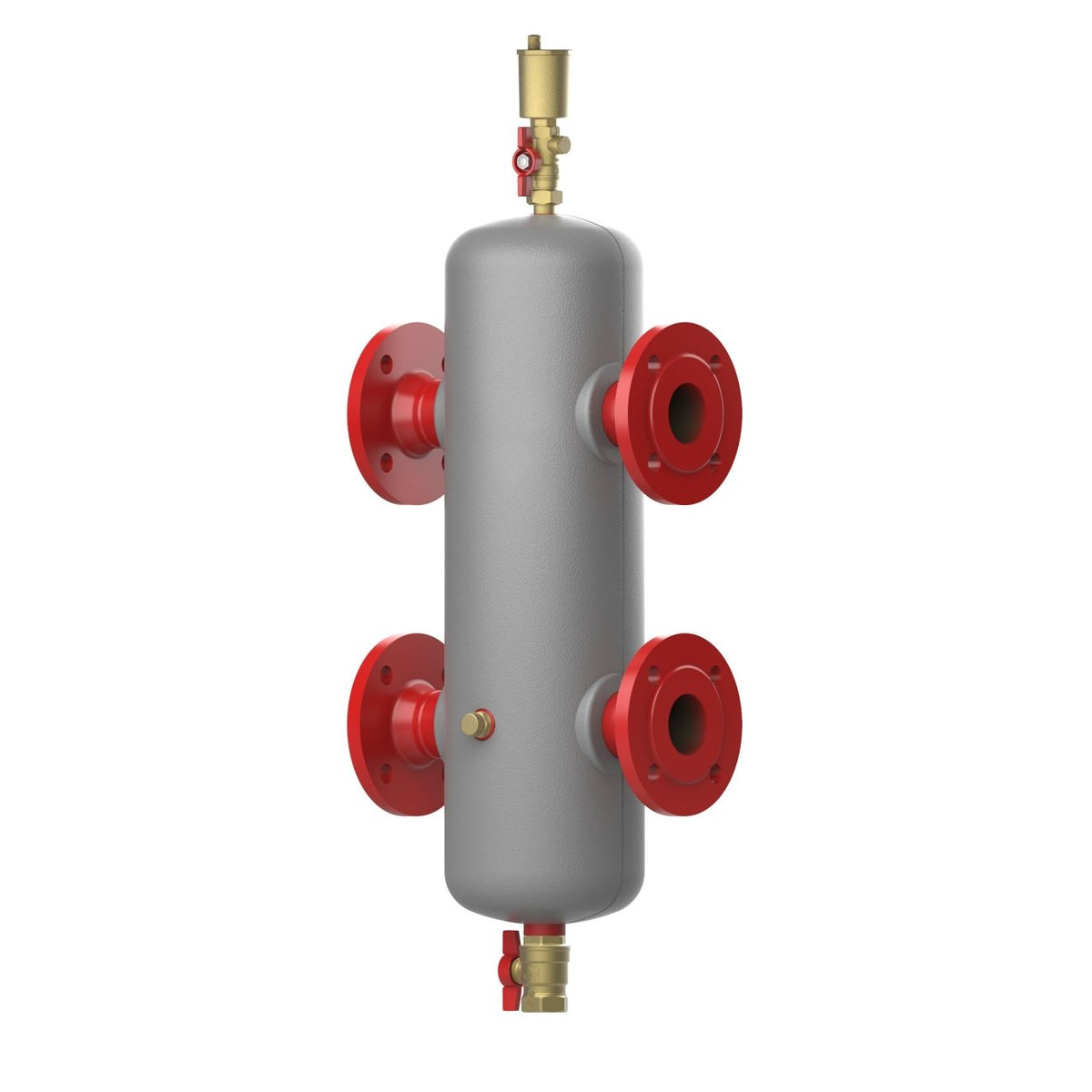

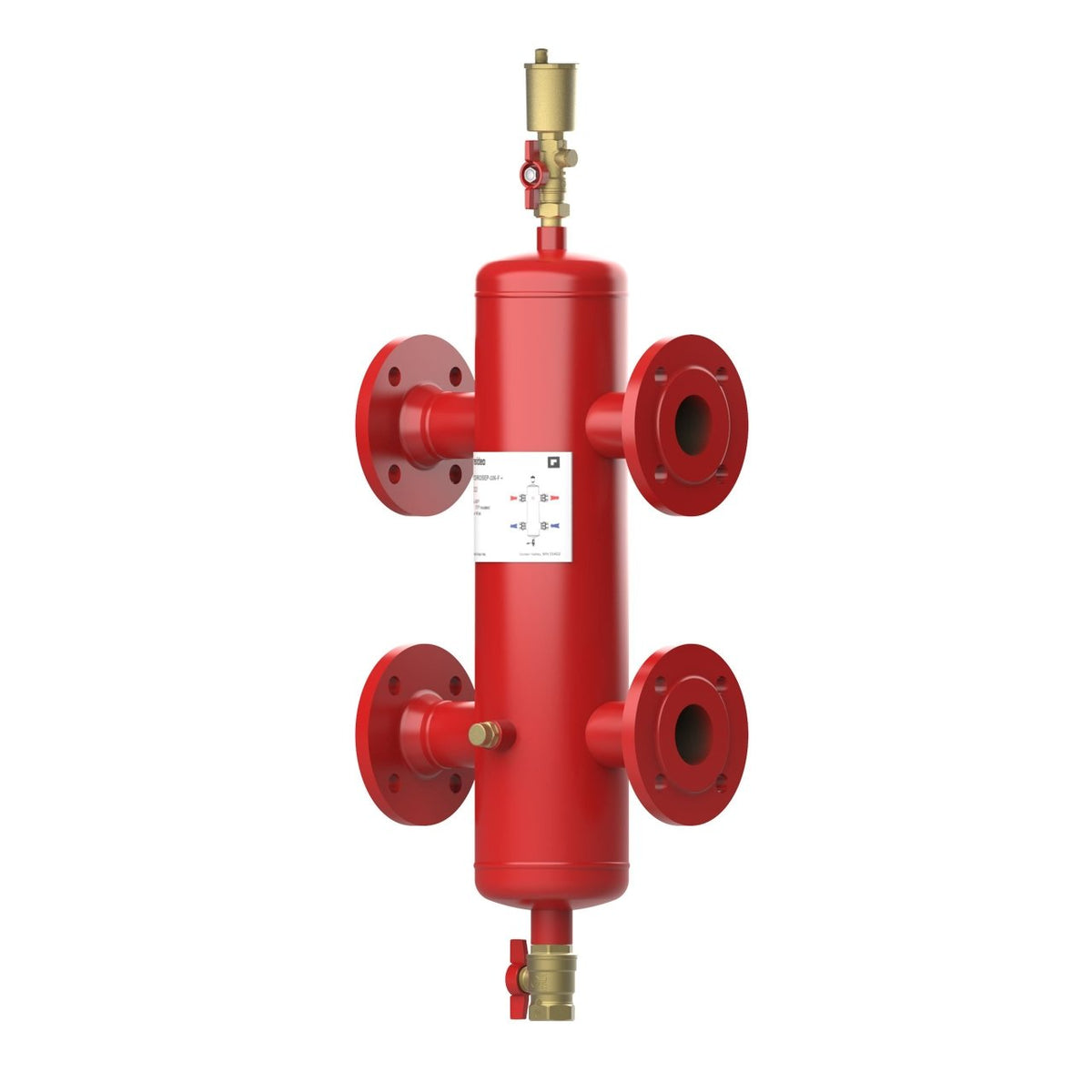

Resideo HYDROSEP-107-F/U Hydraulic Separator, Flanged, 3 in
Resideo

Resideo HYDROSEP-107-F/U Hydraulic Separator, Flanged, 3 in

Item #
HONE-HYDROSEP-107-F/U
Mfr. part #
HYDROSEP-107-F/U
UPC
194159006638
$2,722.87
Each
Backorder – ships from manufacturer
Estimated delivery: –

Special order: typically ships in 3–4 weeks. Contact us for an exact lead time.

Ships UPS Ground for a flat $189 (continental US).
Flat rate by order weight: $119 under 70 lb · $149 for 70–100 lb · $189 for 100–150 lb.

Buying for a business? Tax-exempt purchasing and Net 30 terms available. Open a trade account

Pricing a job? Get a written quote →Open a trade account

  • Ships from Seattle, WA
  • 30-day returns on unused items. Details
  • Secure checkout
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandResideo
Manufacturer part #HYDROSEP-107-F/U
UPC194159006638

3 in hydraulic separator with flanged connections.

Specifications

  • Brand: Resideo (Honeywell Home)
  • Manufacturer Part #: HYDROSEP-107-F/U
  • Controlled Media: Water, 50% (maximum) Glycol Mixture
  • Pipe Size: 3 in.
  • DN Size: DN80
  • Separator Connection: ASME 150 lb flange
  • Air Vent Valve Connection: 1/2 in
  • Connection Type: Flanged
  • Discharge Valve Connection: 1 in
  • Flow Rate (Max): 110 gpm, 25 m3/h
  • Warranty: 5 Years
  • Operating Pressure (Max): 145 psi, 10 Bar
  • Air Vent Operating Pressure (Max): 72 psi, 5 bar
  • Ambient Operating Temperature (Min): 32 °F, 0 °C
  • Ambient Operating Temperature (Max): 230 °F, 110 °C
  • Media Temperature (Min): 32 °F, 0 °C
  • Media Temperature (Max): 266 °F, 130 °C
  • Volume: 9.51 gal, 36 L
  • Insulation Shell Thickness: 0.78 in, 20 mm
  • Insulation Shell Material: Polypropylene
  • Air Vent Material: ASTM B124 UNS C37700 (CW617N EN 12165) Brass
  • Body Material: FE360 varnished Steel
  • Drain Ball Valve Material: ASTM B124 UNS C37700 (CW617N EN 12165) brass
  • UPC: 194159006638
  • Country of Origin: IT
  • Category: Hydro Separators

Questions about fit or compatibility? Ask our team. We usually reply within one business day.

$2,722.87
Backorder
