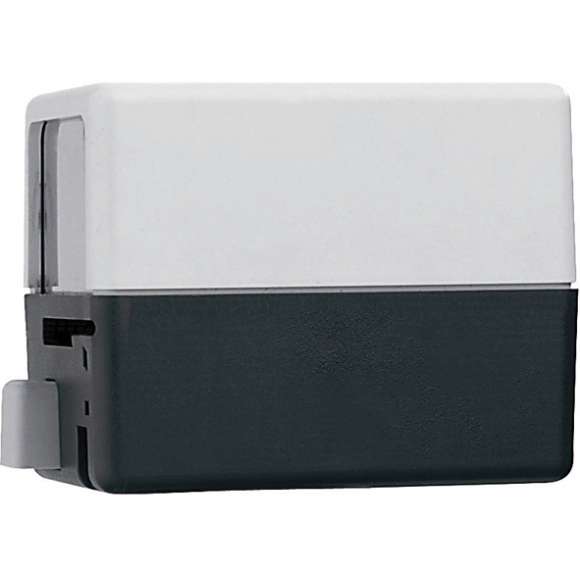

Caleffi Z116000 Z-One 120V Normally Closed Zone Valve Actuator with Auxiliary Switch, 6" Leads

The Caleffi Z116000 is a 120V normally closed actuator for Z-One zone valves, supplied with 6" wire leads.

It mounts on a Z-One valve body to open and close the zone on a thermostat call, and can be used to replace a failed actuator without draining the system. Normally closed means the valve stays closed until power is applied. The auxiliary end switch closes when the valve opens and can be used to signal a boiler, circulator or zone control. Rated for a maximum temperature of 240°F.

Before ordering, confirm your control voltage is 120V, that you need a normally closed actuator, and that the valve body is a Caleffi Z-One. The valve body is not included.

Specifications

• Brand: Caleffi
• Manufacturer Part #: Z116000
• Series: Z-One
• Type: Zone Valve Actuator (Replacement Head)
• Voltage: 120V
• Position: Normally Closed
• Auxiliary Switch: Yes
• Wiring: 6" wire leads
• Max Temperature: 240°F
• UPC: 8016615164374
• Category: Zone Valve Replacement Heads

Documents

• Technical Data Sheet (PDF)
• Installation & Operation Manual (PDF)
• Submittal Sheet (PDF)
• Technical Bulletin (PDF)
