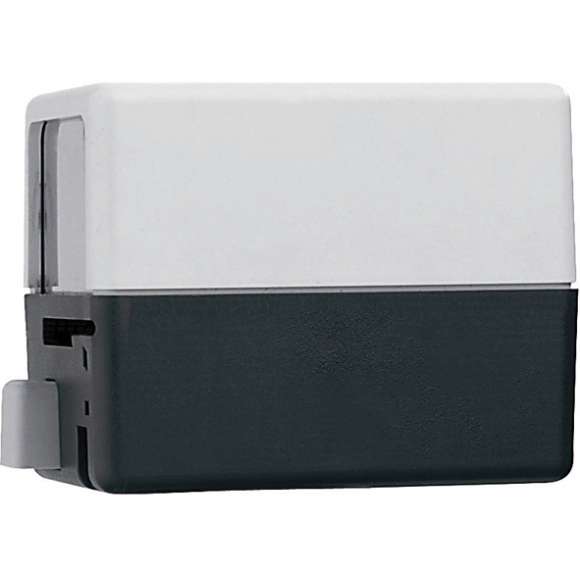

Caleffi Z111900 Z-One 24V Normally Closed Zone Valve Actuator with High-Current Auxiliary Switch, 18" Leads

The Caleffi Z111900 is a 24V normally closed actuator for Z-One zone valves, supplied with 18" wire leads.

It mounts on a Z-One valve body to open and close the zone on a thermostat call, and can be used to replace a failed actuator without draining the system. Normally closed means the valve stays closed until power is applied. The high-current auxiliary micro switch closes when the valve opens and can be used to start a circulator or boiler directly.

Before ordering, confirm your control voltage is 24V, that you need a normally closed actuator, and that the valve body is a Caleffi Z-One. The valve body is not included.

Specifications

• Brand: Caleffi
• Manufacturer Part #: Z111900
• Series: Z-One
• Type: Zone Valve Actuator (Replacement Head)
• Voltage: 24V
• Position: Normally Closed
• Auxiliary Switch: Yes, high-current micro switch
• Wiring: 18" wire leads
• UPC: 8016615575996
• Category: Zone Valve Replacement Heads
