Caleffi Z136000 Z-One 120V Normally Open Zone Valve Actuator with Auxiliary Switch, 6" Leads

Roll over image to zoom in Click on image to zoom

Caleffi Z136000 Z-One 120V Normally Open Zone Valve Actuator with Auxiliary Switch, 6" Leads

Name: Caleffi Z136000 Z-One 120V Normally Open Zone Valve Actuator with Auxiliary Switch, 6" Leads
Brand: Caleffi
SKU: CALE-Z136000
Price: 133.99 USD
Availability: InStock

CaleffiSKU: CALE-Z136000

Price:

$133.99

Stock:

Re-stocking soon

Quantity:

Special order — typically ships in 1–3 weeks.
Contact us for an exact lead time.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Free shipping on orders $99+ · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 0.2 lb
Box size: 5.5 × 3.25 × 3.25 in

Type	Actuator

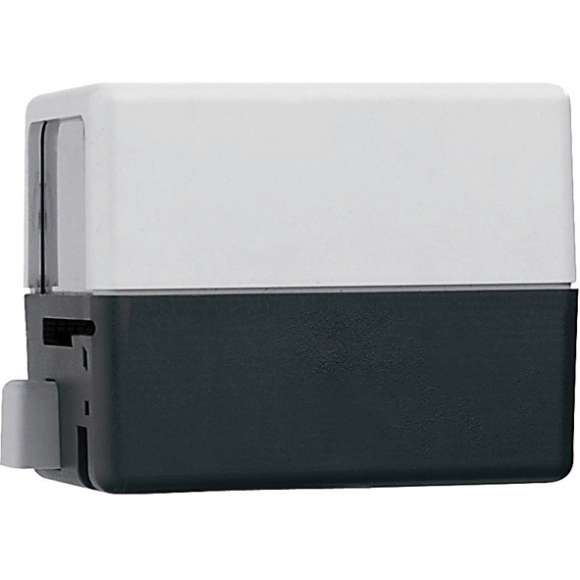

The Caleffi Z136000 is a 120V normally open actuator for Z-One zone valves, supplied with 6" wire leads.

It mounts on a Z-One valve body to open and close the zone on a thermostat call, and can be used to replace a failed actuator without draining the system. Normally open means the valve stays open until power is applied, then closes. The auxiliary end switch closes when the valve opens and can be used to signal a boiler, circulator or zone control. Rated for a maximum temperature of 240°F.

Before ordering, confirm your control voltage is 120V, that you need a normally open actuator, and that the valve body is a Caleffi Z-One. The valve body is not included.
