Two-Position Actuator for VU52 Normally Open and VU54 Valve Bodies, 24 V, 50/60 Hz, Nickel-Plated Motor

Roll over image to zoom in Click on image to zoom

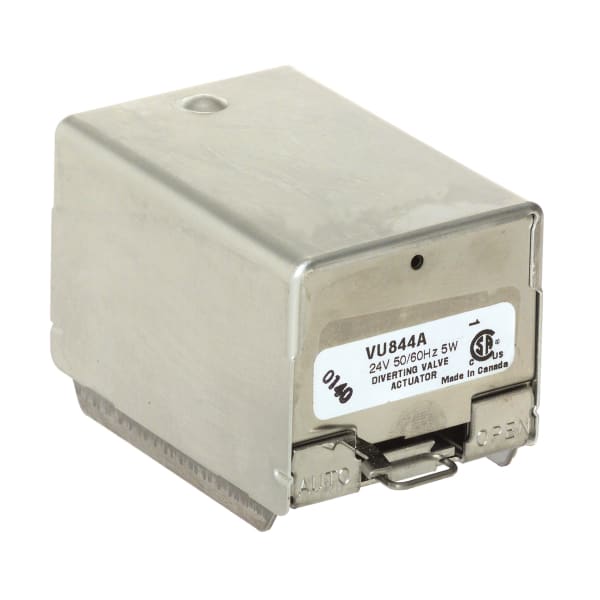

Honeywell Home VU844A1060/U Two-Position Actuator for VU52 Normally Open and VU54 Valve Bodies, 24 V, 50/60 Hz, Nickel-Plated Motor

Name: Honeywell Home VU844A1060/U Two-Position Actuator for VU52 Normally Open and VU54 Valve Bodies, 24 V, 50/60 Hz, Nickel-Plated Motor
Brand: Honeywell Home
SKU: HONE-VU844A1060/U
Price: 120.79 USD
Availability: InStock

Honeywell HomeSKU: HONE-VU844A1060/U

Planning a zoning system? Our free Zone Planner picks the panel, dampers or zone valves and thermostats for every floor, with one-click cart.

Price:

$120.79

Stock:

In stock (30 units), ready to be shipped

Quantity:

Usually ships in 1–2 business days.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Free shipping on orders $99+ · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 1.0 lb
Box size: 5.95 × 4.55 × 3.25 in

Supply Voltage	24V
Frequency	50 Hz; 60 Hz
Electrical Connections	Leads
Close-off Pressure	Depends on Cv rating of valve
Fluid Temperature	200 F
Ambient Temperature	34 F to 125 F ambient at 200 F Fluid
Application	For controlling the flow of hot or chilled water in commercial HVAC equipment such as fan coil units, terminal reheat coils and convectors
Used With	2-way NO (VU52) or 3-way VU valve body (VU54)
Dimensions	2 3/8 in. high, 3 1/2 in. wide, 2 3/8 in. wide
CSA	Certified C/US File No. LR1322
Materials	Stainless Steel case, Aluminum cover, Ni-plated motor
Power Consumption	Driving-- 6 Watts
Internal Auxiliary Switch	0
Actuator Type	Valve
Control Signal	Two position; SPST
Fail Safe Mode	Spring Return
Stroke (in.)	45 deg.
Timing, Nominal	Driving @ 60 Hz (sec)-- 15 sec maximum
Spring Return Timing	Nominal-- 6 sec
Manual operation	Lever

Specification Sheet PDF ↗

The VU844A1060 is a two-position valve actuator from Resideo, the brand that carries the Honeywell Home line of residential heating controls, built for VU series fan coil valve bodies. It drives the valve fully open on a call and returns it to the rest position when the call ends.

Fan coil valves live in ceiling plenums and closets where service access is poor, so the actuator is the part specified to be replaceable on its own. Matching the actuator to the body matters: a normally closed body and a normally open body take different heads, and fitting the wrong one reverses the zone.

Check the valve body model stamped on the unit before ordering — the title of this listing states which VU bodies this actuator is built for.

Brand: Honeywell Home
Manufacturer Part #: VU844A1060/U
Series: VU
Control type: Two-position
Voltage: 24 Vac
Category: Zone Valve Actuators

Full Specifications

Application	For controlling the flow of hot or chilled water in commercial HVAC equipment such as fan coil units, terminal reheat coils and convectors
Approvals and Standards	Certified C/US: File No. LR1322
Product Features	Compact construction for easy installation, Fits under the cover of most baseboard convectors with actuator fitted to valve body, One-button, quick release, Secure 3-point, metal latch to valve body, Spring return operation, Stainless steel case and aluminum cover Rust-proof nickel-plated motors available, Line or low voltage, rust-resistant motors, Manual opener for installation and valve operation on power failure, Valve returns to automatic position when power is restored., Actuator may be reinstalled or serviced without draining the system or disassembling the valve, Slotted conduit hole for faster wiring
For Use With	2-Way NO (VU52), 3-Way VU Valve Body (VU54)
Control Signal	Two position; SPST
Ambient Operating Temperature (Min)	34 °F at 200 °F Fluid, 1 °C at 93 °C Fluid
Ambient Operating Temperature (Max)	125 °F at 200 °F Fluid, 52 °C at 93 °C Fluid
Current Draw	0.32 A
Number of Internal Auxiliary Switches	0
Fire and Smoke Rated	No
Manual Override Included	Yes
Connection Length	6 in, 0.15 m
Connection Type	Leads
Stroke (Max)	45 °
Product Height	2.38 in, 62 mm
Product Width	3.5 in, 88 mm
