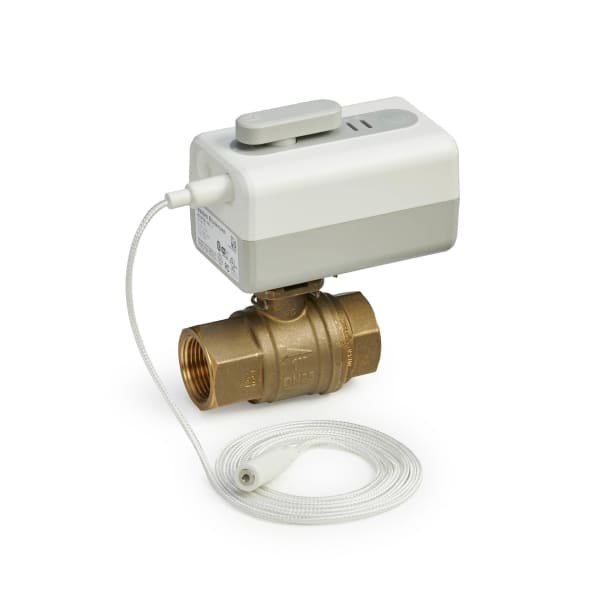

Honeywell Home VWS02Y-1 L5 WiFi Actuator with 1 in NPT Ball Valve

First Alert VWS02Y-1 L5 WiFi Actuator with 1 in NPT Ball Valve

Item #: HONE-VWS02Y-1
Mfr. part #: VWS02Y-1
UPC: 194159007925

Key specifications

Pipe Size1 in
ConnectionNPT
Voltage100 to 240 V
Valve TypeBall Valve
Body PatternTwo-way

View all specifications

$290.67

Free shipping on orders $99+
30-day returns on unused items. Details
Secure checkout

Need help with this part?

(404) 678-9908 Chat with a product specialist Request a quote

Brand	First Alert
Manufacturer part #	VWS02Y-1
Pipe Size	1 in
Connection Type	NPT
Body Pattern	Two-way
Valve Type	Ball Valve
Voltage	100 to 240 V
Frequency	50 Hz; 60 HZ
Electrical Connections	10 ft cable
Fluid Temperature	36 °F to 149 °F
Ambient Temperature	32 °F to 113 °F
Controlled Fluid	Potable Water
Mounting	Valve can be installed in any orientation
Application	Water Leak Detection and Shut off Valve
Includes	L5 Actuator, Lead-free Ball Valve, Power Supply Adapter, Actuator to Ball Valve Metal Clip, 5 ft Water Leak Detector Cable
Dimensions	5.98 in H x 5 in L x 2.67 in W
CSA	CAN/CSA C22.2
Approvals, CE	CE EMC 2014/30/EU; CE RED 2014/53/EU
Approvals, Others	RoHS 2011/65/EU, ES 50040083; REACH 1907/2006; FCC part 15, subpart C
Pressure Range (psi)	Pressure resistance min. PN10
Available Accessories	Leak Detector Cable; WiFi Water Leak and Freeze Detector, Spare Actuator, Spare Power Cable, Spare Valve
UPC	194159007925

The VWS02Y-1 is an L5 Wi-Fi shutoff valve from First Alert (by Resideo), 1 in NPT lead-free ball valve with actuator.

Water damage is the claim that does not need a flood. A supply line that weeps behind a wall, a water heater that lets go while the house is empty, a washing machine hose at the end of its life — all of it runs until somebody notices, and the cost is the drying and the rebuild rather than the water.

This is the part that ends it. The actuator drives a full-port ball valve on the main; when the sensor finds water, or when you close it from the app, the supply stops. A detector tells you there is a leak. A valve stops it while you are in another state.

Size it to the main, not to the fixture — this one is 1 in NPT. The valve is lead-free because it sits in potable supply.

In the box: L5 actuator, lead-free ball valve, power supply adapter, actuator to ball valve metal clip, 5 ft water leak detector cable.

Mount orientation is free, which matters where the main enters at an awkward angle.

Brand: First Alert (by Resideo)
Manufacturer Part #: VWS02Y-1
Type: Wi-Fi water shutoff valve
Pipe size: 1 in
Connection: NPT
Valve type: Ball Valve
Power: 100 to 240 V
Fluid temperature: 36 °F to 149 °F
Includes: L5 Actuator, Lead-free Ball Valve, Power Supply Adapter, Actuator to Ball Valve Metal Clip, 5 ft Water Leak Detector Cable
UPC: 194159007925
Category: Leak Detection Valves
