| Voltage | POwer Supply Rated:15 V |
| Frequency | 50 Hz; 60 HZ |
| Electrical Connections | 10 ft cord on Power Supply Adapter |
| Timing | Actuator Runtime: < 10s |
| Ambient Temperature | 32 °F to 113 °F |
| Controlled Fluid | Potable Water |
| Mounting | Connect ball valve to Actuator with metal clip |
| Application | Replacement Actuator for L5 WiFi Actuator with Ball Valve |
| Used With | L5 Water Leak Shut Off Valves |
| Dimensions | 5.98 in H x 5 in L x 2,67 in W |
| CSA | CAN/CSA C22.2 |
| Approvals, CE | CE EMC 2014/30/EU; CE RED 2014/53/EU |
| Approvals, Others | RoHS 2011/65/EU, ES 50040083; REACH 1907/2006; FCC part 15, subpart C |
Description

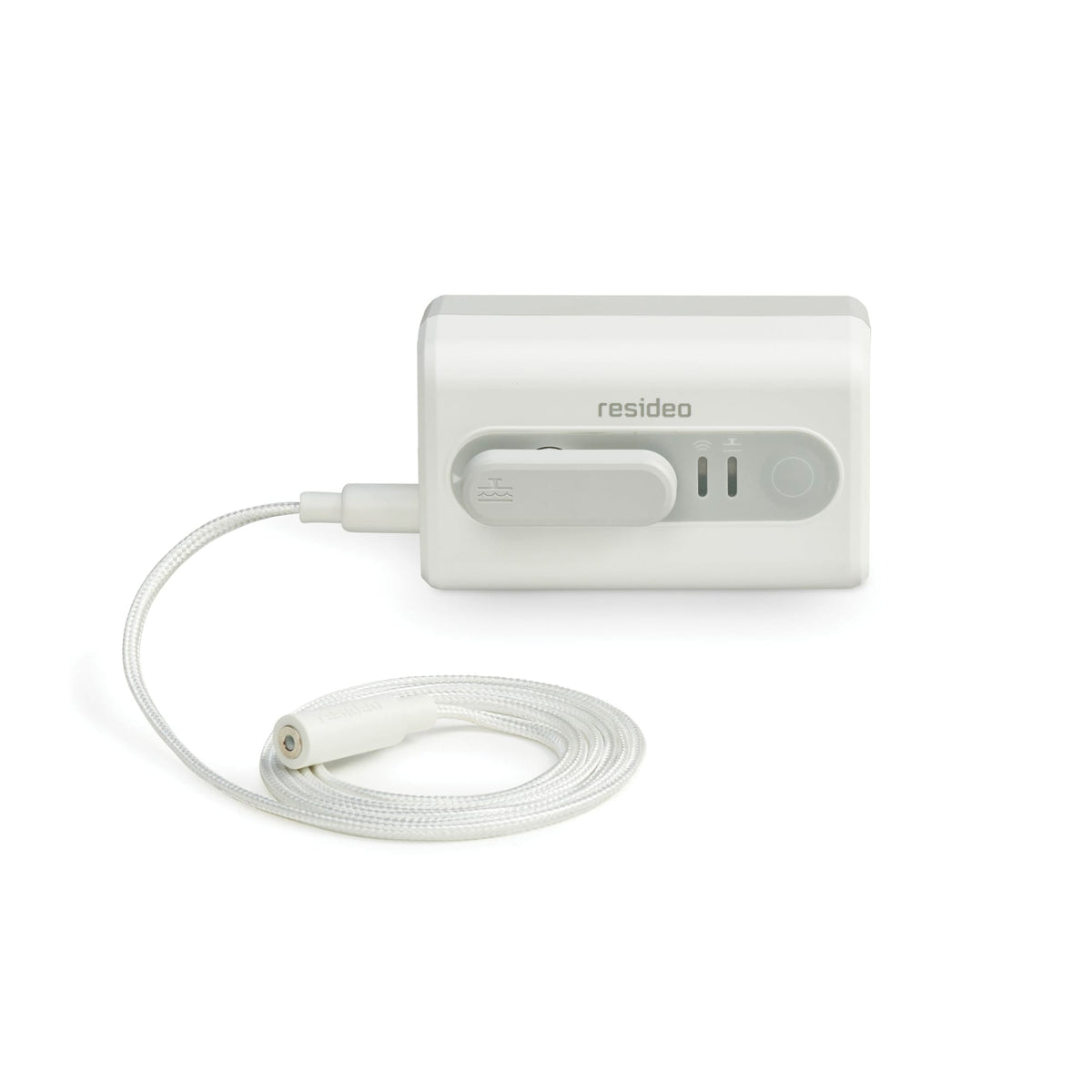

The VB-SP02Y-002 is an L5 Wi-Fi replacement actuator from Resideo (Honeywell Home).
This is a service part for an L5 system already on the main. The actuator is the motor that turns the ball valve; the valve body stays in the pipe.
The two part numbers look almost alike. VB-SP02Y-002 is the replacement actuator and VB-SP02Y-003 is the power adapter. Order by what you actually need, not by the family name.
Goes with: VB-SP02Y-003.
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: VB-SP02Y-002
- Type: L5 Wi-Fi replacement actuator
- UPC: 194159008007
- Category: Leak Detection Valves
