Description

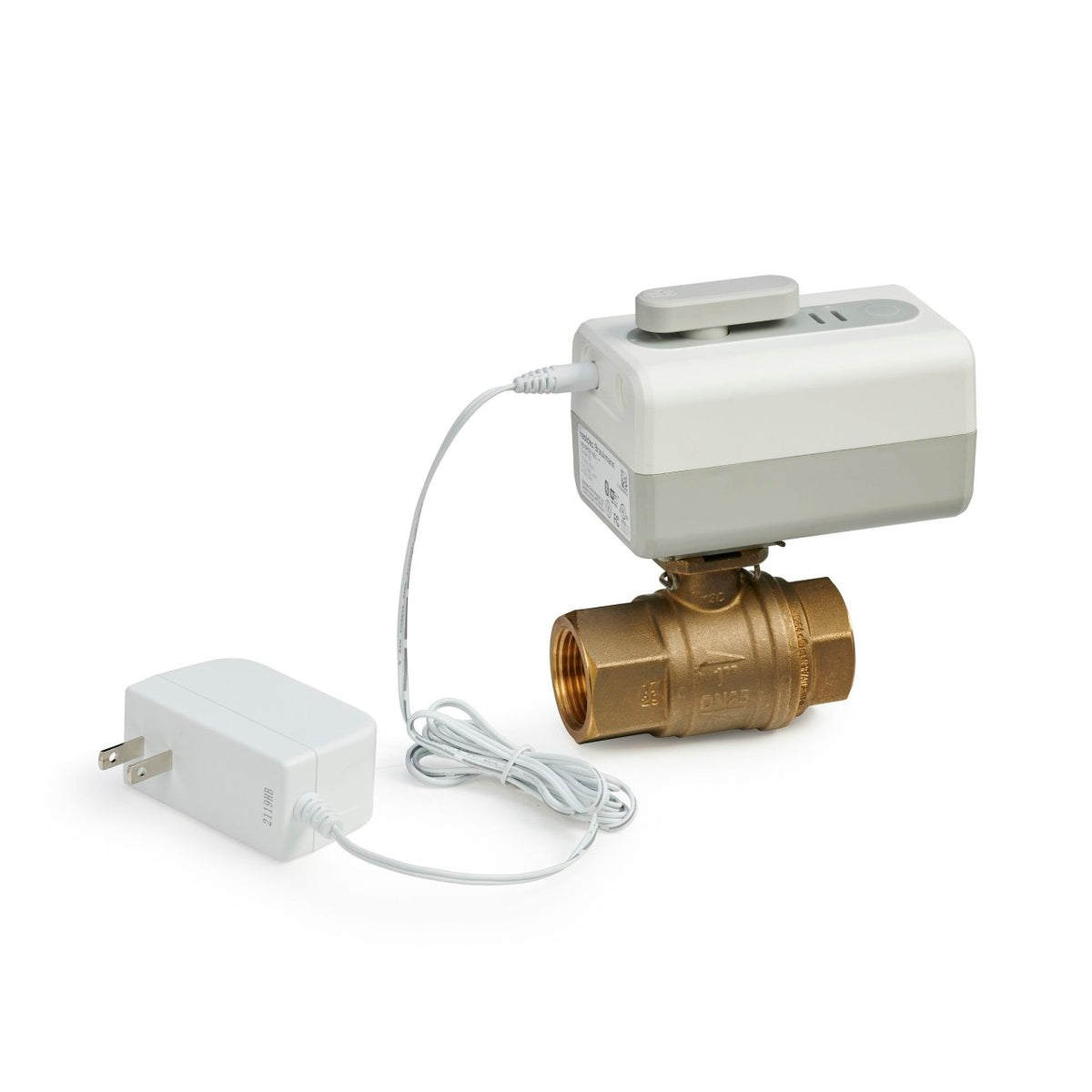

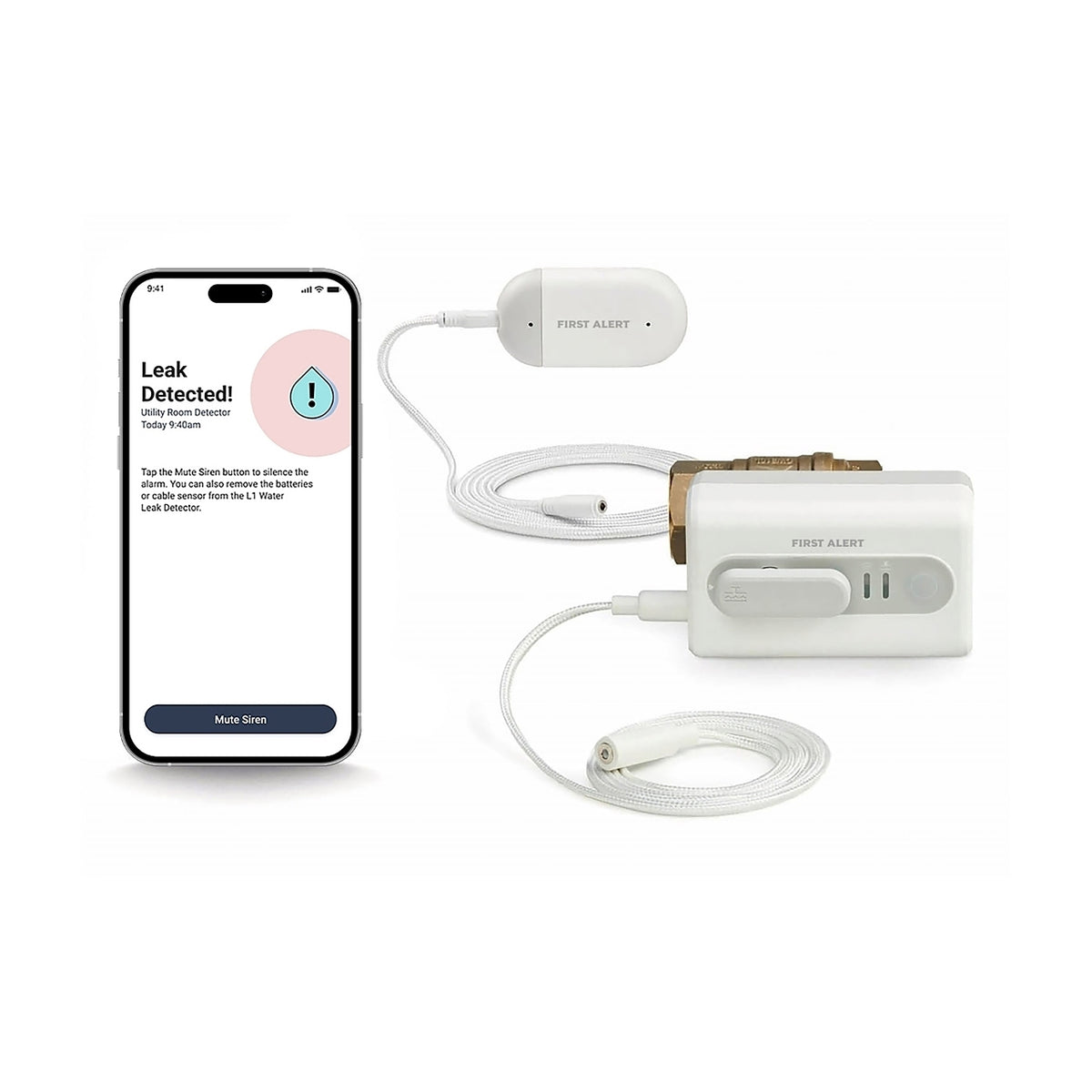

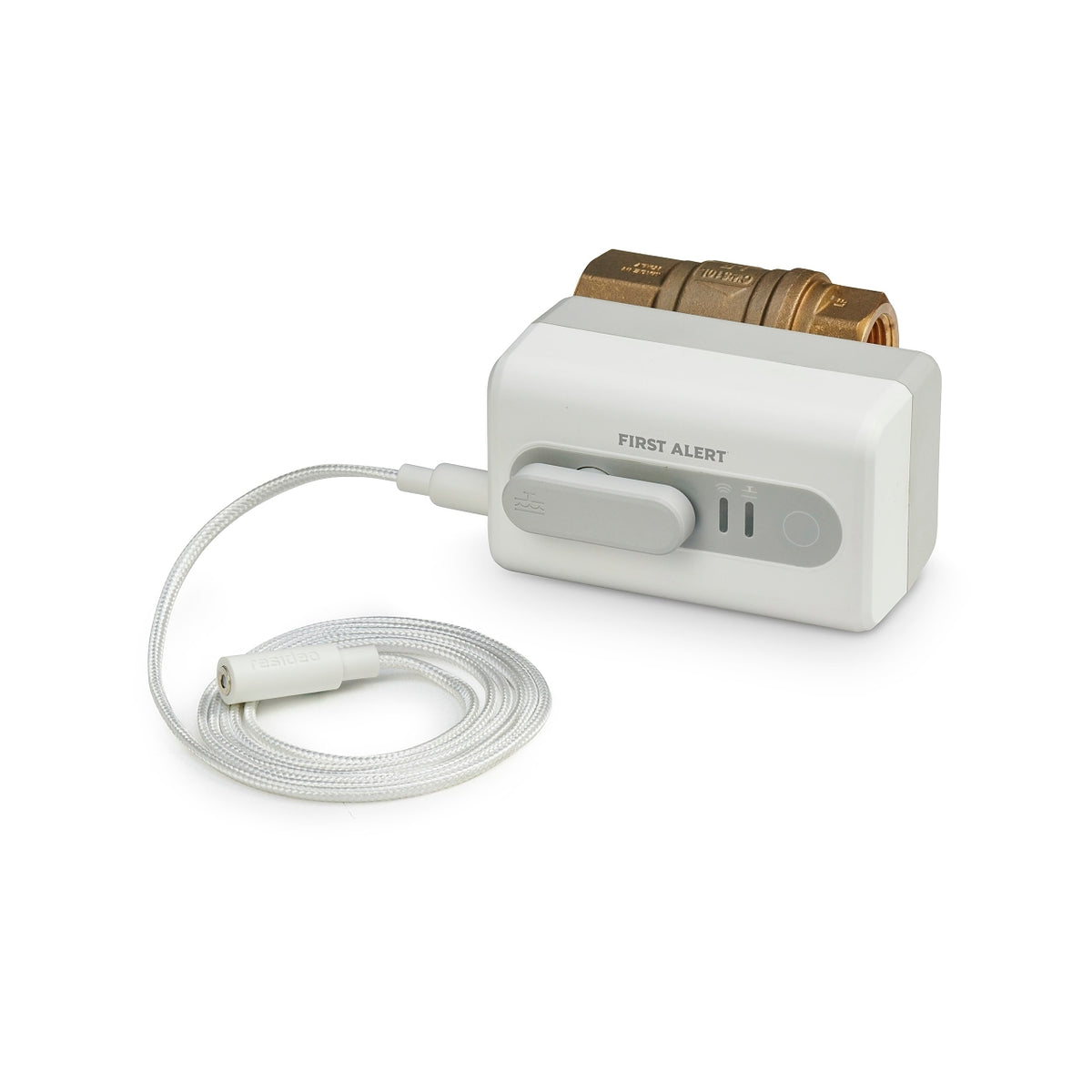

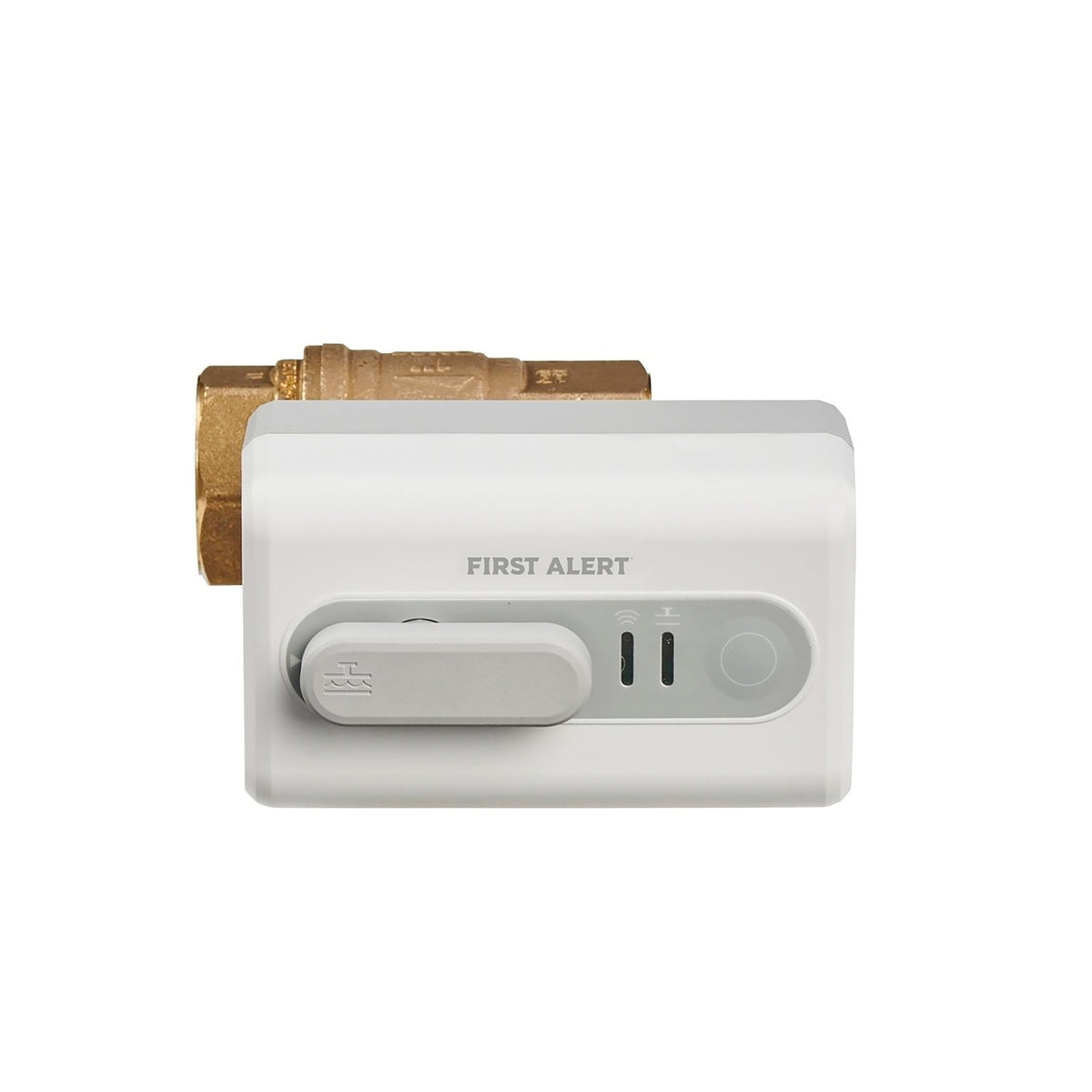

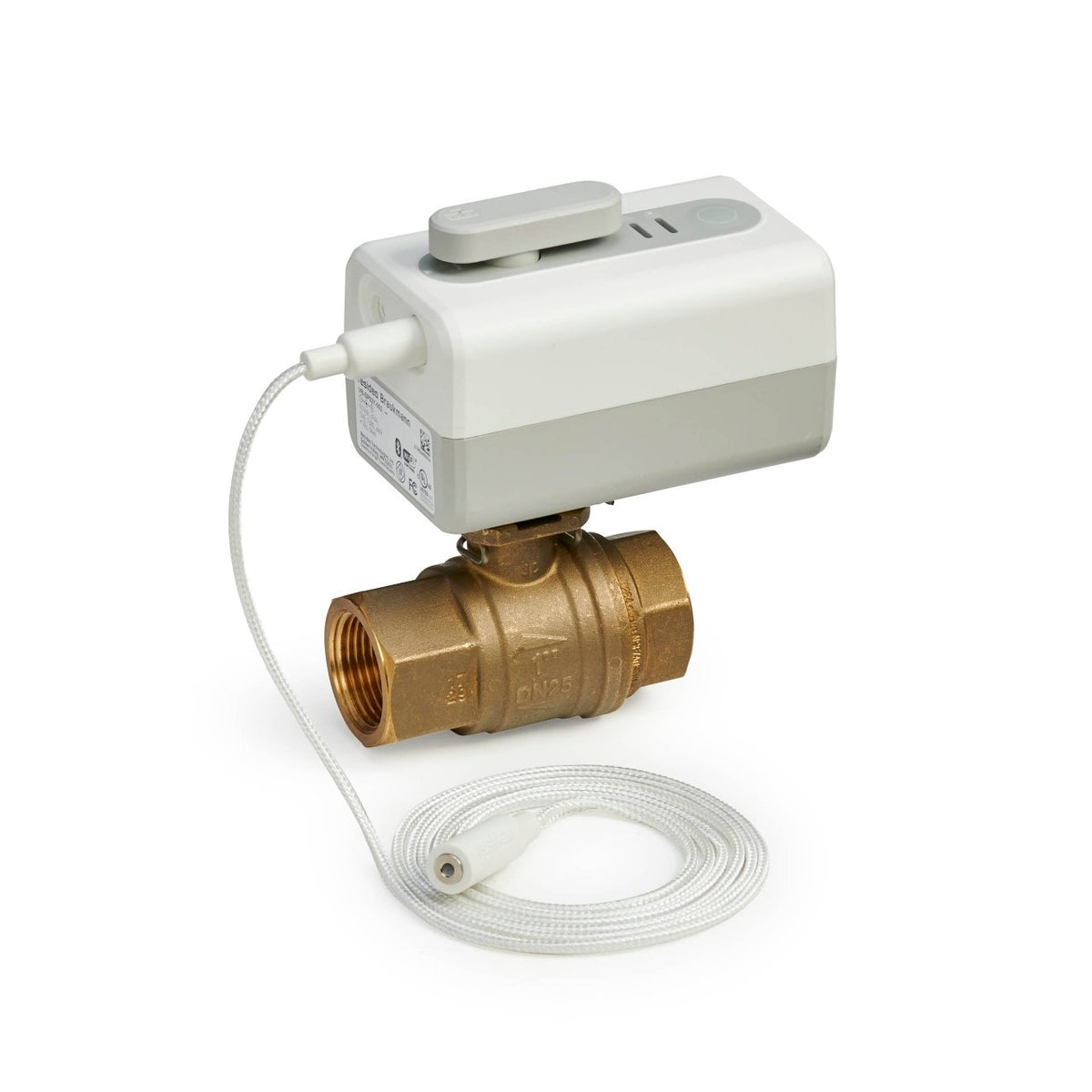

L5 Wi-Fi actuator supplied with a 1 in NPT ball valve and one leak sensor.
Features
- Auto Shutoff Through Water Leak and Freeze Sensor
- Control the L5 WiFi Water Leak Shutoff Valve Remotely Via the App
- Manual Override to Turn On or Off Water
- Easy Install
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: VWS01Y-1
- Application: Water Leak Detection, Water Shut off Valve
- Approvals and Standards: CE EMC 2014/30/EU, CE RED 2014/53/EU, EN 60730-1, EN 60730-2-14, UKCA, CAN/CSA C22.2, UL 60730-1, UL 60730-2-14, WEEE 2012/19/EU, ES 116, RoHS 2011/65/EU, ES 50040083, REACH 1907/2006, Proposition 65, FCC part 15, subpart C, RSS-247
- Pipe Size: 1 in
- DN Size: DN25
- Rated Torque: 44.25 in-lbs, 5 Nm
- Breakaway Torque: 57.53 in-lbs, 6.5 Nm
- Wireless Connectivity: WiFi frequency band of 2.4GHz, 802.11 b/g/n, Bluetooth 4.1
- Includes: L5 Actuator, Lead-free Ball Valve, Power Supply Adapter, Actuator to Ball Valve Metal Clip, Water Leak Detector Cable, Separate Water Leak Detector and Cable
- Connection Type: NPT
- Valve Type: Ball Valve
- Lead Free: Yes
- Protection Class: IPX4, Indoor, UL Type 2
- Color: White, Brass
- Mounting Location: Install the L5 Water Valve on the main water line after the main water shutoff valve and the pressure reducing valve (if applicable).
- Mounting Option: Valve can be installed in any orientation
- Actuator Connection: Ball Valve Flange size F03
- Media Temperature (Min): 36 °F, 2 °C
- Media Temperature (Max): 149 °F, 65 °C
- Ambient Operating Temperature (Min): 32 °F, 0 °C
- Ambient Operating Temperature (Max): 113 °F, 45 °C
- Compatible App: First Alert App, Resideo App
- Manual Override: Yes
- Mounting Accessories: Metal Clip
- Warranty: 5 years
- Product Height: 5.98 in, 152 mm
- Product Length: 5 in, 127 mm
- Product Width: 2.67 in, 68 mm
- Additional Dimensions Details: 10 ft cord on Power Supply Adapter
- UPC: 5059087018625
- Country of Origin: CZ
- Category: Leak Detection Valves
