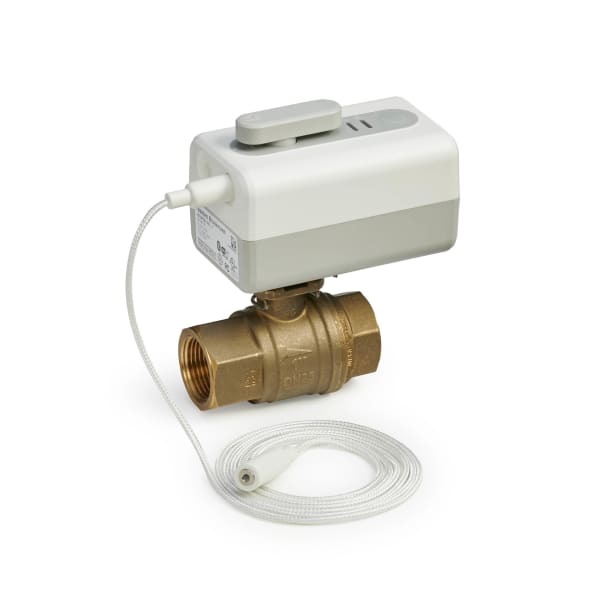

The VWS02Y-1/2 is an L5 Wi-Fi shutoff valve from First Alert (by Resideo), 1/2 in NPT lead-free ball valve with actuator.
Water damage is the claim that does not need a flood. A supply line that weeps behind a wall, a water heater that lets go while the house is empty, a washing machine hose at the end of its life — all of it runs until somebody notices, and the cost is the drying and the rebuild rather than the water.
This is the part that ends it. The actuator drives a full-port ball valve on the main; when the sensor finds water, or when you close it from the app, the supply stops. A detector tells you there is a leak. A valve stops it while you are in another state.
Size it to the main, not to the fixture — this one is 1/2 in NPT. The valve is lead-free because it sits in potable supply.
In the box: L5 actuator, lead-free ball valve, power supply adapter, actuator to ball valve metal clip, 5 ft water leak detector cable.
Mount orientation is free, which matters where the main enters at an awkward angle.
-
Brand: First Alert (by Resideo)
-
Manufacturer Part #: VWS02Y-1/2
-
Type: Wi-Fi water shutoff valve
-
Pipe size: 1/2 in
-
Connection: NPT
-
Valve type: Ball Valve
-
Power: 100 to 240 V
-
Fluid temperature: 36 °F to 149 °F
-
Includes: L5 Actuator, Lead-free Ball Valve, Power Supply Adapter, Actuator to Ball Valve Metal Clip, 5 ft Water Leak Detector Cable
-
UPC: 194159007901
-
Category: Leak Detection Valves
Full Specifications
| Application |
Water Leak Detection, Water Shut off Valve |
| Approvals and Standards |
CE EMC 2014/30/EU, CE RED 2014/53/EU, EN 60730-1, EN 60730-2-14, UKCA, CAN/CSA C22.2, UL 60730-1, UL 60730-2-14, WEEE 2012/19/EU, ES 116, RoHS 2011/65/EU, ES 50040083, REACH 1907/2006, FCC part 15, subpart C, RSS-247 |
| Pipe Size |
1/2 in |
| DN Size |
DN15 |
| Rated Torque |
44.25 in-lbs, 5 Nm |
| Breakaway Torque |
57.53 in-lbs, 6.5 Nm |
| Wireless Connectivity |
WiFi frequency band of 2.4GHz, 802.11 b/g/n, Bluetooth 4.1 |
| Product Features |
Auto Shutoff Through Water Leak and Freeze Sensor, Control the L5 WiFi Water Leak Shutoff Valve Remotely Via the App, Manual Override to Turn On or Off Water, Easy Install |
| Includes |
L5 Actuator, Lead-free Ball Valve, Power Supply Adapter, Actuator to Ball Valve Metal Clip, 5 ft Water Leak Detector Cable |
| Connection Type |
NPT |
| Valve Type |
Ball Valve |
| Lead Free |
Yes |
| Protection Class |
IPX4, Indoor, UL Type 2 |
| Color |
White, Brass |
| Mounting Location |
Install the L5 Water Valve on the main water line after the main water shutoff valve and the pressure reducing valve (if applicable). |
| Mounting Option |
Valve can be installed in any orientation |
| Actuator Connection |
Ball Valve Flange size F03 |
| Media Temperature (Min) |
36 °F, 2 °C |
| Media Temperature (Max) |
149 °F, 65 °C |
| Ambient Operating Temperature (Min) |
32 °F, 0 °C |
| Ambient Operating Temperature (Max) |
113 °F, 45 °C |
| Compatible App |
First Alert App, Resideo App |
| Manual Override |
Yes |
| Mounting Accessories |
Metal Clip |
| Warranty |
5 years |
| Product Height |
5.16 in, 131 mm |
| Product Length |
4.61 in, 117 mm |
| Product Width |
2.67 in, 68 mm |
| Additional Dimensions Details |
10 ft cord on Power Supply Adapter |
