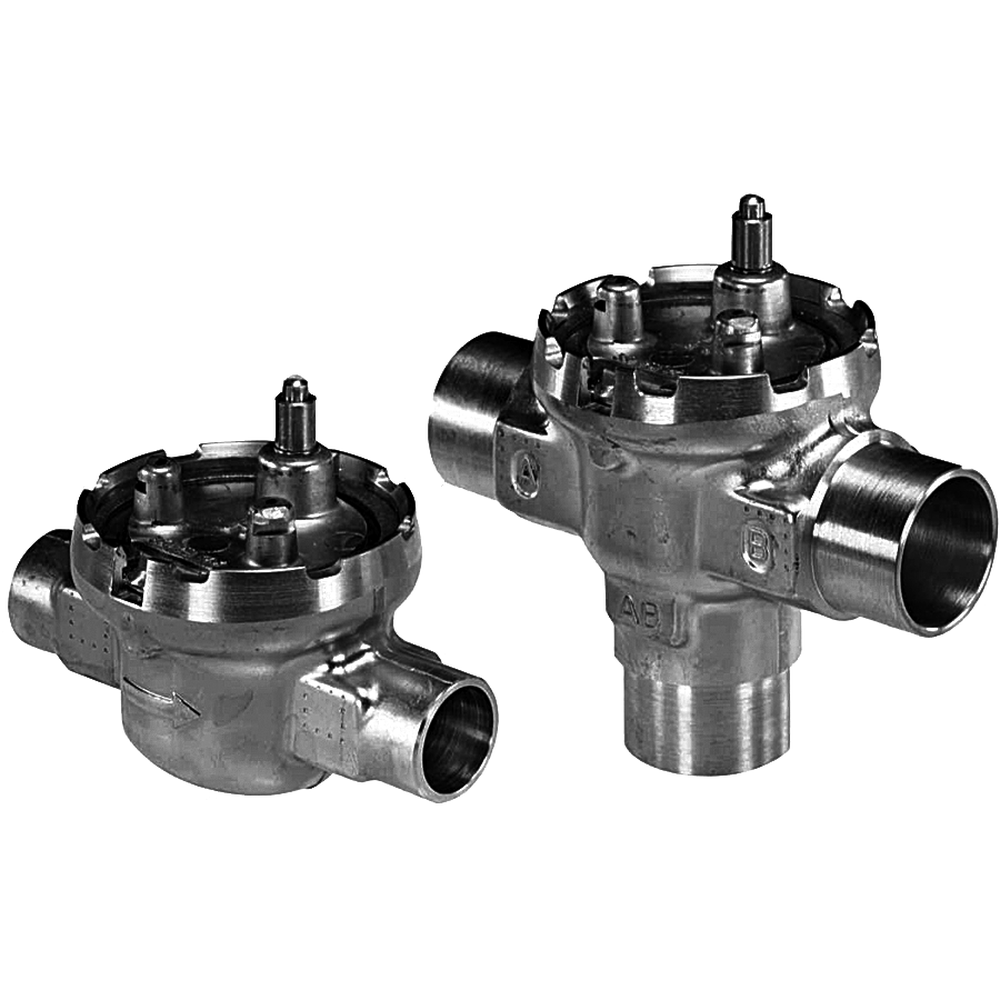

Resideo QVU8142A3231/U NO Rebuild Kit for 1/2 to 1 in VU52 Fan Coil Valve

Honeywell Home QVU8142A3231/U NO Rebuild Kit for 1/2 to 1 in VU52 Fan Coil Valve

Item #: HONE-QVU8142A3231/U
Mfr. part #: QVU8142A3231/U
UPC: 085267881296

Planning a zoning system? Our free Zone Planner picks the panel, dampers or zone valves and thermostats for every floor, with one-click cart.

Key specifications

Body materialBrass
Valve TypeFan Coil Valve
Body PatternTwo-way, Straight-through
ActuationTwo position
Flow CharacteristiQuick Opening

View all specifications

$134.34

Free shipping on orders $99+
30-day returns on unused items. Details
Secure checkout

Shipping details

Shipping weight: 1.2 lb
Box size: 6 × 4.6 × 3.3 in

Need help with this part?

(404) 678-9908 Chat with a product specialist Request a quote

Brand	Honeywell Home
Manufacturer part #	QVU8142A3231/U
Body Pattern	Two-way, Straight-through
Valve Type	Fan Coil Valve
Actuation	Two position
Flow Characteristic	Quick Opening
Voltage	24 Vac; Power Consumption--7.7 VA
Frequency	50 Hz; 60 Hz
Fluid Temperature	200F Maximum
Ambient Temperature	34F to 104 F
Controlled Fluid	Chilled or hot water with up to 60% Glycol
Materials (Body)	Brass
Materials (Seat)	Brass
Materials (Packing)	EPDM rubber
Materials (Plug/Ball/Disc)	Buna-N rubber
Application	N.O. Rebuild Kit for 1/2 to 1 in. VU52 Fan Coil Valve
Used With	VU52, 2-way Normally Open
Maximum Safe Operating Pressure (psi)	300 psig
Shipping and Storage Temperature Range (F)	-40°F to 150°F
UPC	085267881296

NO Rebuild Kit for 1/2 to 1 in VU52 Fan Coil Valve from Honeywell Home, part number QVU8142A3231/U. Honeywell Home carries the Honeywell Home line of residential heating controls, and the V-series and VC-series zone valves this part serves are the reference hydronic controls in North American heating.

Rebuilding a zone valve from parts keeps the body in the piping and the actuator in service. On a heating system that is already charged and balanced, replacing a seal or a cartridge is a far smaller job than cutting a valve out of the line and soldering a new one in.

Match the part to the model stamped on your valve before ordering. Zone valve bodies from the same series differ by action and by port arrangement, and the rebuild parts are not interchangeable across them.
