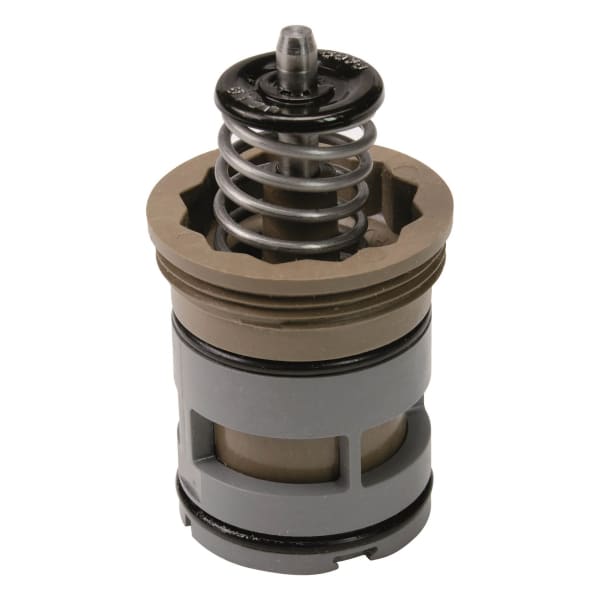

VC Series Replacement Cartridge for 2-port zone valves

Roll over image to zoom in Click on image to zoom

Honeywell Home VCZZ1000/U VC Series Replacement Cartridge for 2-port Zone Valves

Name: Honeywell Home VCZZ1000/U VC Series Replacement Cartridge for 2-port Zone Valves
Brand: Honeywell Home
SKU: HONE-VCZZ1000/U
Price: 33.44 USD
Availability: InStock

Honeywell HomeSKU: HONE-VCZZ1000/U

Planning a zoning system? Our free Zone Planner picks the panel, dampers or zone valves and thermostats for every floor, with one-click cart.

Price:

$33.44

Stock:

In stock (31 units), ready to be shipped

Quantity:

Usually ships in 1–2 business days.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Ships from Seattle, WA · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 0.2 lb
Box size: 4.45 × 4.35 × 1.55 in

Valve Type	Replacement cartridge for VC series
Flow Characteristic	Quick Opening
Controlled Fluid	Water w/max of 60% Glycol. Not for use with Steam
Materials (Stem)	Stainless Steel
Used With	Two-way VC Cartridge Valves with 14 lbf
Dimensions	1 1/2 in. diameter x 2 9/16 in. high
CSA	CSA Certified
Materials (Cartridge)	EPDM, Ryton & Noryl plastic
Stem Travel (in.)	0.4 in.

Installation Instructions PDF ↗

Replacement cartridge for Honeywell Home VC series 2-way zone valves.

The VC design puts the seat, plug and seal inside a removable cartridge. A valve that no longer shuts off tight is rebuilt from the top, with the body left soldered or threaded in the line and the actuator reused.

What a complete VC zone valve takes: a valve body, a cartridge, and an actuator, ordered separately. This listing is the cartridge.

VC valve bodies and actuators this cartridge fits

Brand: Honeywell Home
Manufacturer Part #: VCZZ1000/U
Series: VC
Configuration: 2-way
Category: Zone Valve Parts

Full Specifications

Application	Valve Cartridge
Compatible With	Use in cold, warm, and hot water applications.
For Use With	Two-way VC Cartridge Valves with 14 lbf
Valve Type	Cartridge Valve
Valve Flow Characteristic	Quick Opening
Valve Stem Travel	0.4 in, 10 mm
Valve Stem Material	Stainless Steel
Controlled Media	60% Glycol Mixture
Product Diameter	1.5 in, 37 mm
Product Height	2.56 in, 65 mm
