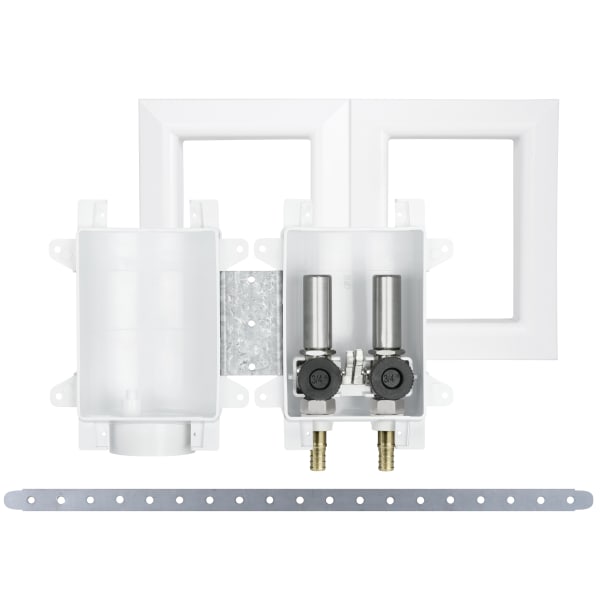

Sioux Chief 696-2313XF OxBox Washing Machine with Mini Rester F1807

Sioux Chief 696-2313XF is an OxBox washing machine box with 1/2" PEX F1807 inlets, 3/4" male hose outlets and water hammer arresters.

It rough-ins the washing machine supply and drain in recessed ABS boxes with quarter-turn ball valves. Supply and drainage are separate boxes for a flexible layout, and the test cap in the drain box removes easily with pliers. Built-in arresters absorb the water hammer caused by the washer's fast-closing valves.

It ships with a frame. Match the inlet to the piping: F1960 PEX, F1807 PEX or MIP/FSWT for copper. Sioux Chief lists this model with a leaded valve.

Specifications

• Brand: Sioux Chief
• Manufacturer Part #: 696-2313XF
• Outlets: 3/4" male hose thread
• Arrester: Yes
• Inlet: 1/2" PEX F1807
• Fire-rated: No
• Frame: Included
• Standards: IAPMO PS 54, ASME A112.18.1, CSA B125.1, NSF/ANSI 14, NSF/ANSI/CAN 372, NSF/ANSI/CAN 61
• UPC: 739236109569
• Category: Washing Machine
• Shipping Weight: 2.79 lb

See also: washing machine boxes, supply outlet boxes, all Sioux Chief.
