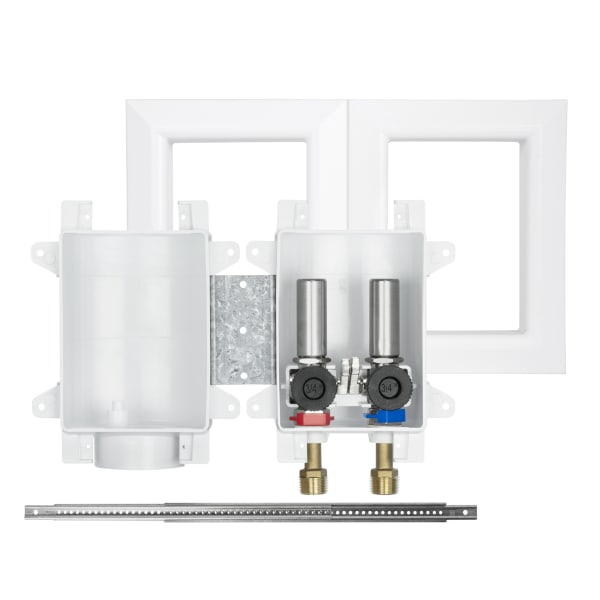

Sioux Chief 696-2313MF is an OxBox washing machine box with 1/2" MIP/FSWT (sweat) inlets, 3/4" male hose outlets and water hammer arresters.
It rough-ins the washing machine supply and drain in recessed ABS boxes with quarter-turn ball valves. Supply and drainage are separate boxes for a flexible layout, and the test cap in the drain box removes easily with pliers. Built-in arresters absorb the water hammer caused by the washer's fast-closing valves.
It ships with a frame. Match the inlet to the piping: F1960 PEX, F1807 PEX or MIP/FSWT for copper. Sioux Chief lists this model with a leaded valve.
Specifications
-
Brand: Sioux Chief
-
Manufacturer Part #: 696-2313MF
-
Outlets: 3/4" male hose thread
-
Arrester: Yes
-
Inlet: 1/2" MIP/FSWT (sweat)
-
Fire-rated: No
-
Frame: Included
-
Standards: ASME A112.18.1, CSA B125.1, NSF/ANSI 14, NSF/ANSI/CAN 372, NSF/ANSI/CAN 61
-
UPC: 739236109521
-
Category: Washing Machine
-
Shipping Weight: 2.784 lb
