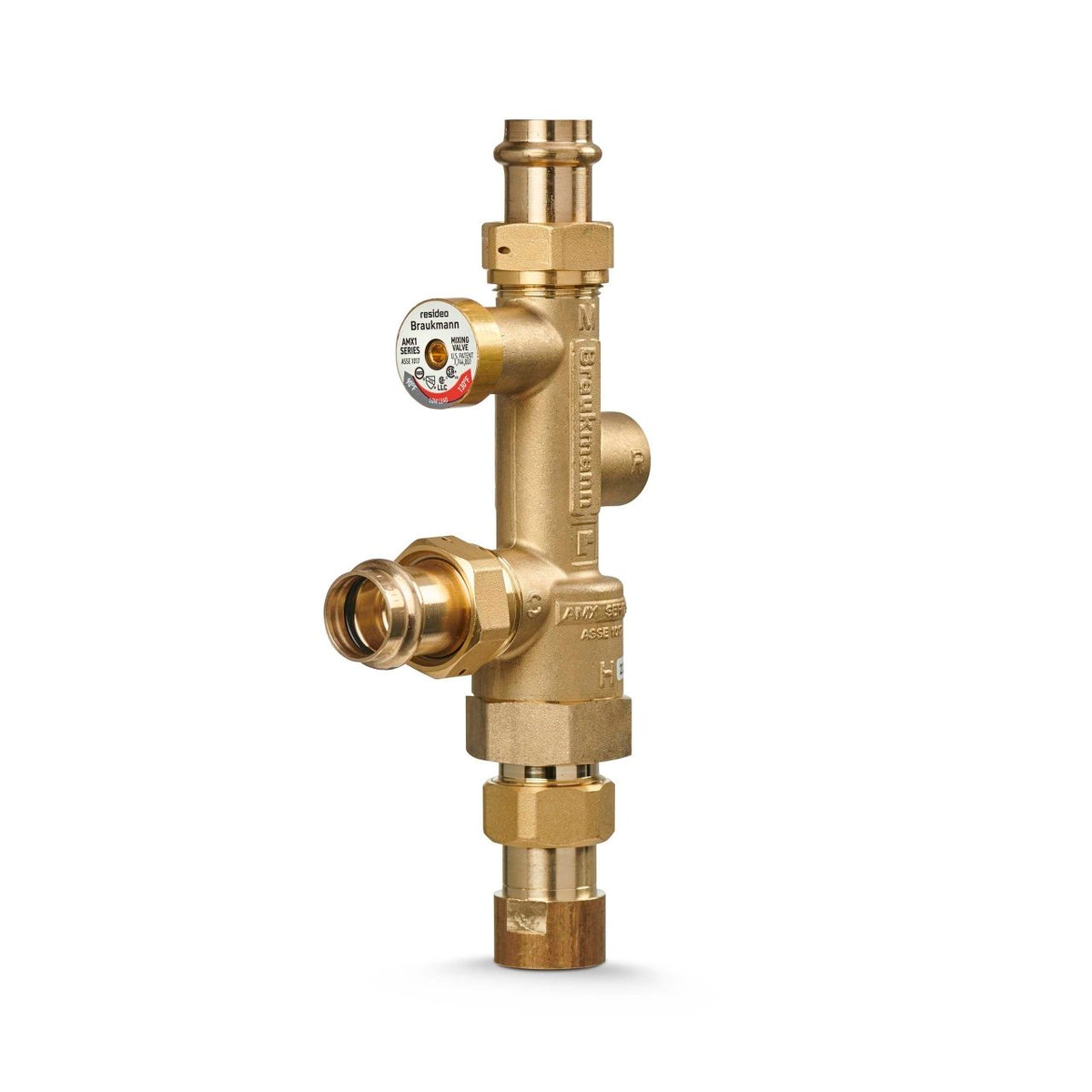

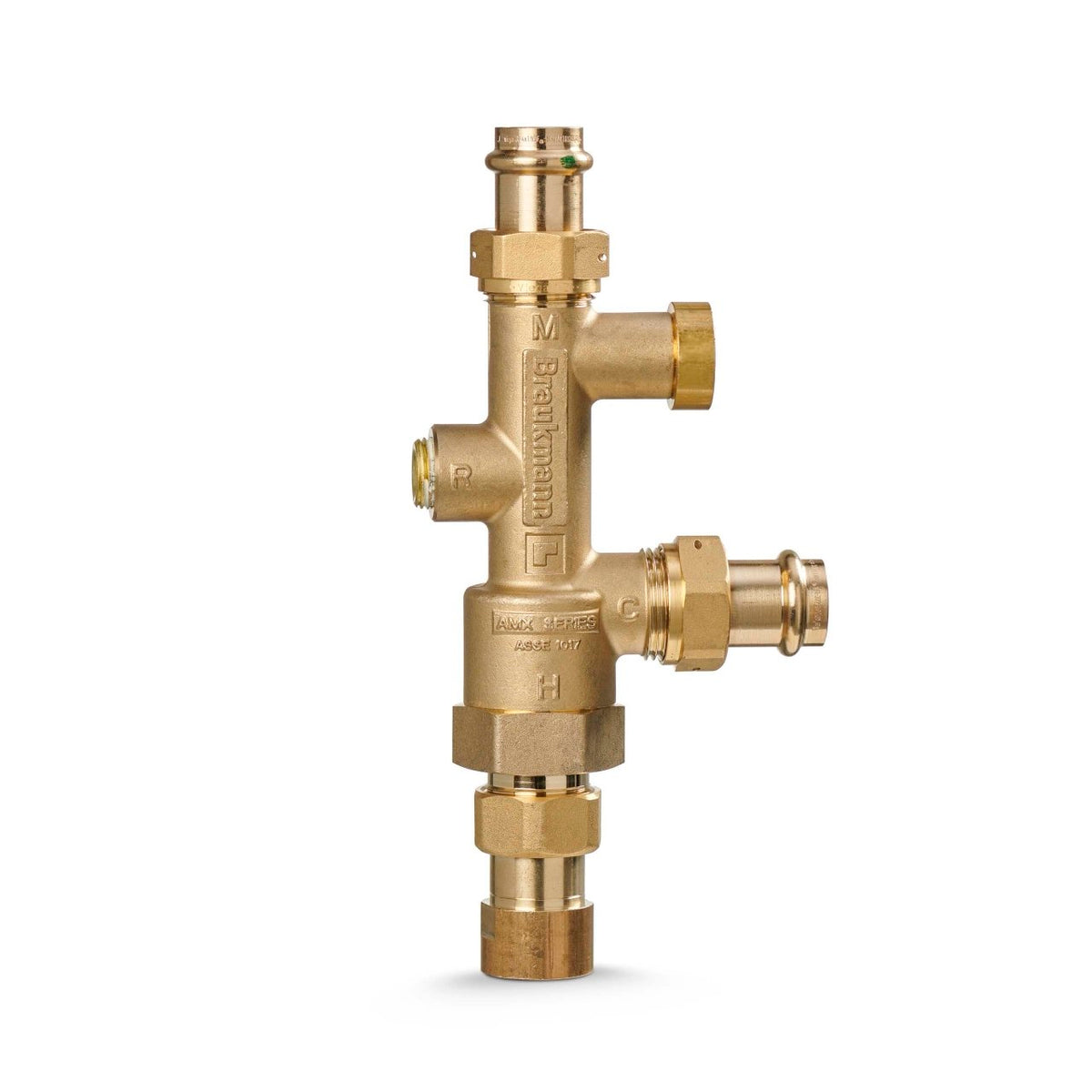

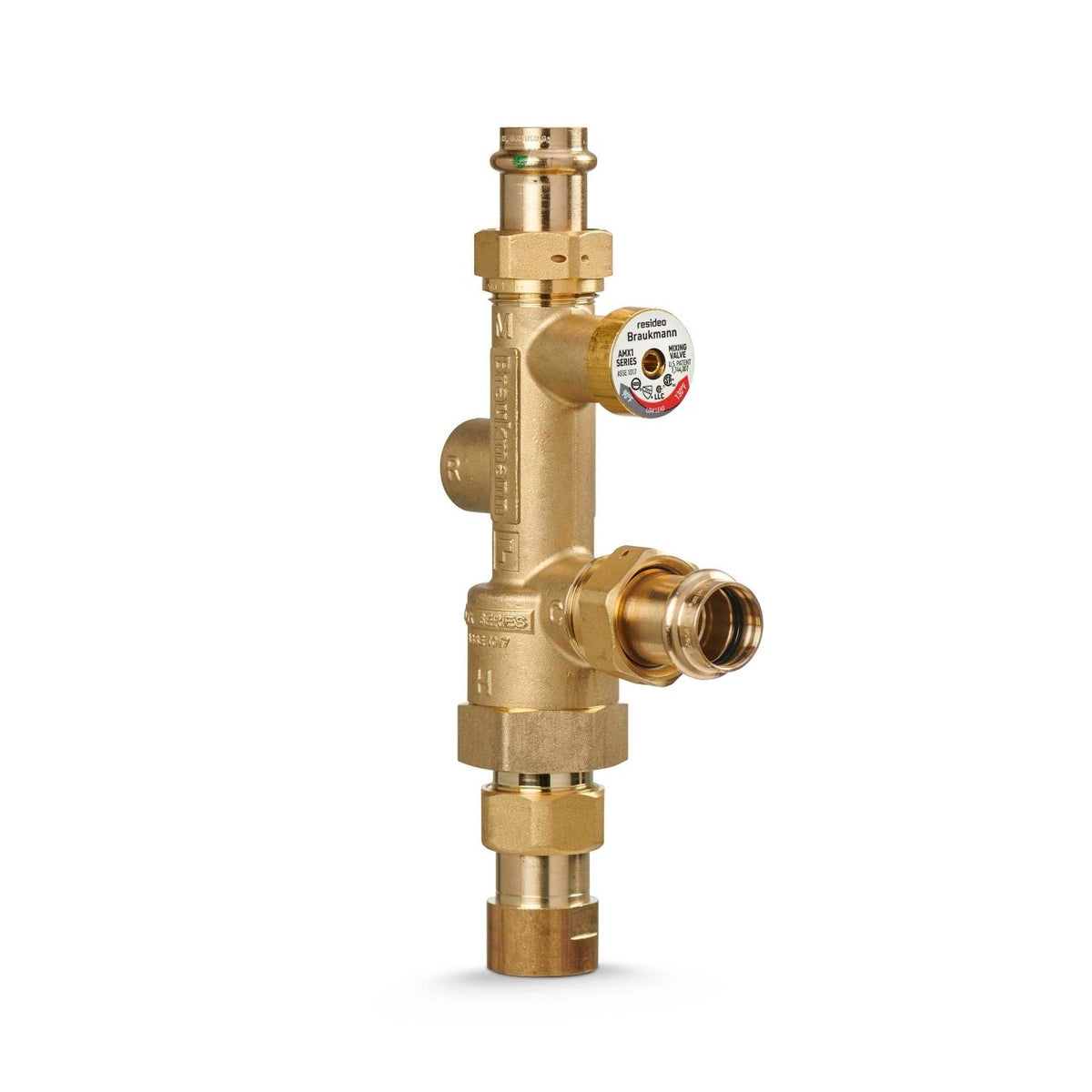

Resideo AMX101-UP-1LF/U AMX Lead Free Mixing Valve, 3/4 in Press

AMX lead free mixing valve, 3/4 in, with press connections.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: AMX101-UP-1LF/U
• Controlled Media: Potable Water, Non Potable Water
• Re-Circulation: Yes
• Approvals and Standards: ASSE 1017 Certified, CSA Certified, IAPMO Listed, NSF/ANSI Listed, The wettable surface of lead-free models contain less than 0.25% of lead by weighted average
• Includes: 3/4 in FNPT Inlet, 2 3/4 in Union Pro Press fittings
• Warranty: 1 Year
• Cold Inlet Temperature (Min): 39 °F, 4 °C
• Cold Inlet Temperature (Max): 80 °F, 27 °C
• Flow Coefficient: 4 Cv
• Flow Rate (Min): 0.50 gpm, 1.9 lpm
• Hot Inlet Temperature (Min): 120 °F, 49 °C
• Hot Inlet Temperature (Max): 180 °F, 82 °C
• Mixed Outlet Temperature (Min): 70 °F, 21 °C
• Mixed Outlet Temperature (Max): 145 °F, 63 C
• Lead Free: Yes
• Operating Pressure (Max): 150 psi, 1034 kPa
• Connection Size: 3/4 in
• Connection Type: Union ProPress
• Nominal Diameter: DN20
• UPC: 194159014480
• Country of Origin: MX
• Category: Water Heater Tank Mixers
