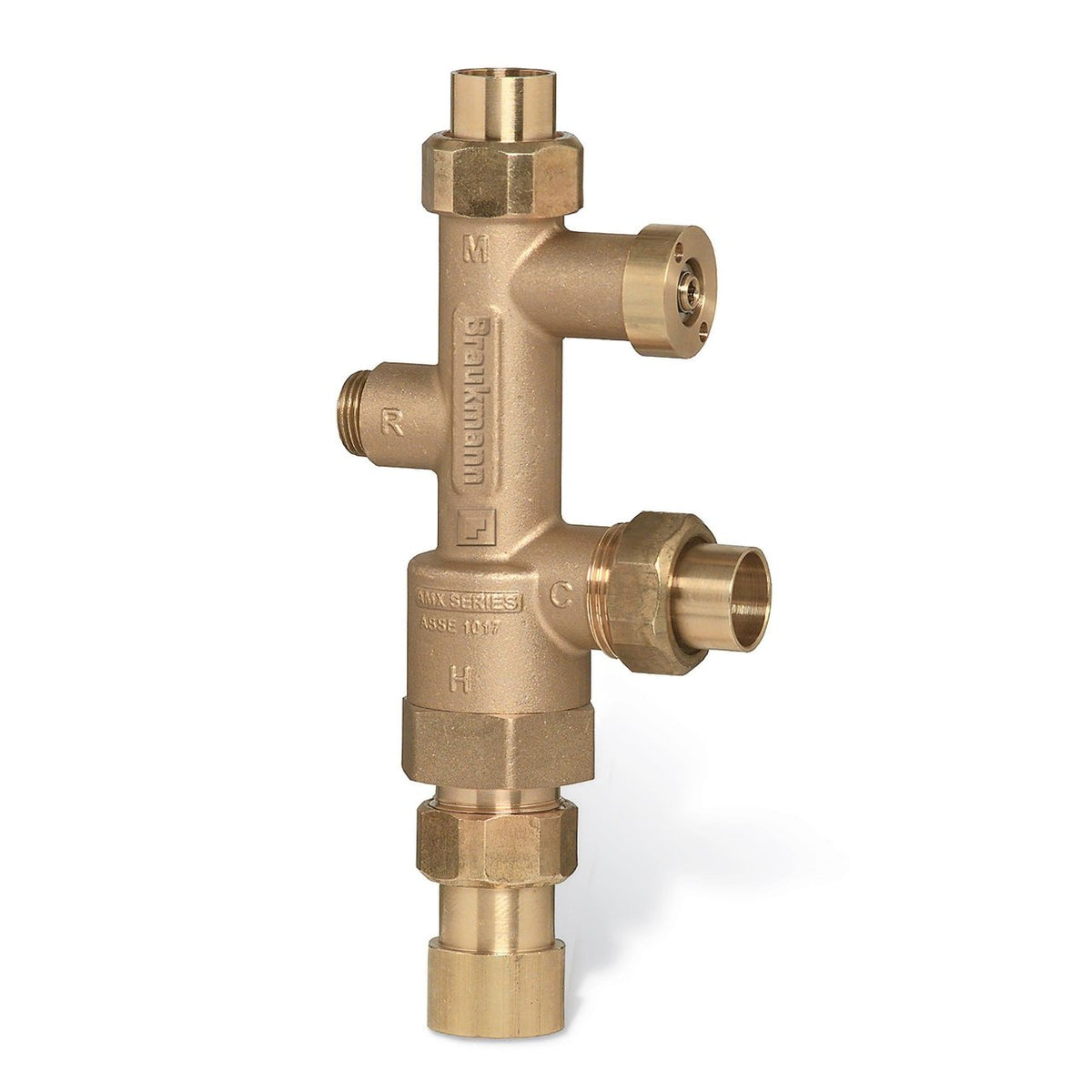

Resideo AMX101-US-1LF/U AMX Lead Free Mixing Valve, 3/4 in Sweat Union, 90–130°F

AMX lead free mixing valve, 3/4 in, with sweat union connections and a 90–130°F range.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: AMX101-US-1LF/U
• Controlled Media: Potable Water, Non Potable Water
• Re-Circulation: Yes
• Approvals and Standards: ASSE 1017 Certified, CSA Listed, IAPMO Listed, The wettable surface of lead-free models contain less than 0.25% of lead by weighted average
• Color: Bronze
• Includes: Check Valves cold water port, 3/4 in FNPT Inlet, (2) 1/2 in Union Threaded Fittings
• Product Height: 9 in, 228.6 mm
• Product Length: 4 in, 101.6 mm
• Product Width: 4 in
• Warranty: 1 Year
• Adjustment Means: Handwheel
• Check Valve: Yes
• Cold Inlet Temperature (Min): 33 °F, 0.5 °C
• Cold Inlet Temperature (Max): 80 °F, 27 °C
• Differential Pressure (Max): 7 psi, 48.3 kPa
• Flex Connector Included: No
• Flow Coefficient: 4 Cv
• Flow Rate (Min): 0.50 gpm, 1.9 lpm
• Hot Inlet Temperature (Min): 100 °F, 38 °C
• Hot Inlet Temperature (Max): 180 °F, 82 °C
• Lead Free: Yes
• Media Temperature (Max): 200 °F, 93 °C
• Number of Check Valves: 2
• Operating Mixing Temperature (Min): 90 °F, 32 °C
• Operating Mixing Temperature (Max): 130 °F, 54 °C
• Operating Pressure (Max): 150 psi, 1034 kPa
• Seal Material: EPDM Rubber
• Valve Body Material: Nickel-plated Brass, Bronze
• Connection Size: 3/4 in
• Connection Type: Union Sweat
• Nominal Diameter: DN20
• Number of Connections: 4
• UPC: 085267338097
• Country of Origin: MX
• Category: Water Heater Tank Mixers
