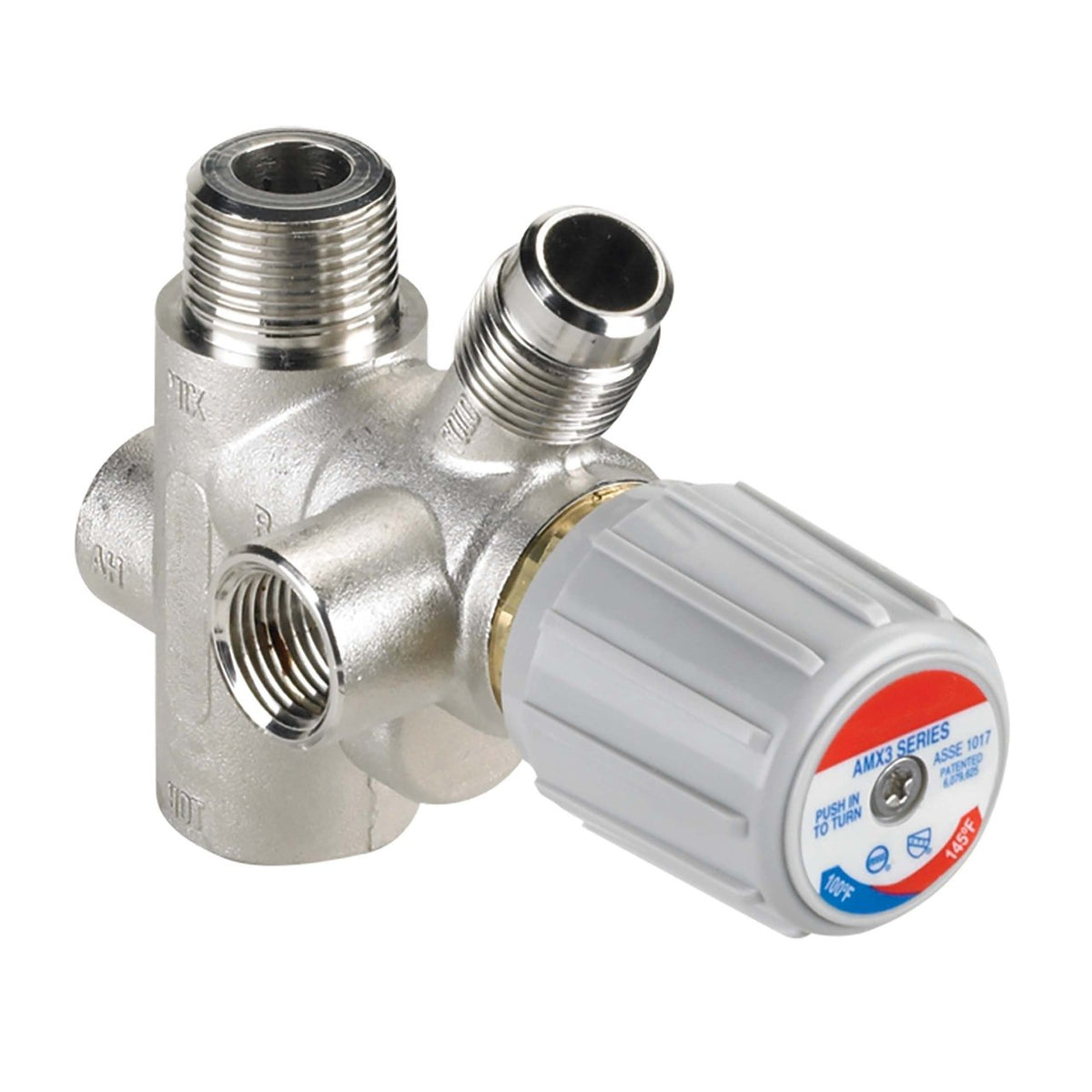

Resideo AMX300LF/U AMX300 Lead Free Replacement Mixing Valve, 3/4 in, for AMX300T and AMX302T Kits

Lead free AMX300 3/4 in replacement mixing valve for use with AMX300T and AMX302T kits.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: AMX300LF/U
• Controlled Media: Potable Water, Non Potable Water
• Re-Circulation: Yes
• Approvals and Standards: ASSE 1017 Certified, CSA Listed
• Color: Metallic
• Includes: Replacement 3/4 in Valve for AMX300T and AMX302T DirectConnect Mixing Valve Kits, Check Valves on Hot and Cold Inlets
• Product Height: 3.47 in, 89 mm
• Product Length: 5.31 in, 135 mm
• Product Width: 2.37 in, 60 mm
• Warranty: 1 Year
• Adjustment Means: Handwheel
• Cold Inlet Temperature (Min): 33 °F, 0.5 °C
• Cold Inlet Temperature (Max): 80 °F, 27 °C
• Differential Pressure (Max): 7 psi, 48.3 kPa
• Flex Connector Included: No
• Flow Coefficient: 2.1 Cv
• Flow Rate (Min): 0.25 gpm, 0.95 lpm
• Hot Inlet Temperature (Min): 100 °F, 38 °C
• Hot Inlet Temperature (Max): 180 °F, 100 °C
• Lead Free: Yes
• Media Temperature (Max): 200 °F, 93 °C
• Number of Check Valves: 2
• Operating Mixing Temperature (Min): 100 °F, 38 °C
• Operating Mixing Temperature (Max): 145 °F, 63 °C
• Operating Pressure (Max): 150 psi, 1034 kPa
• Seal Material: EPDM Rubber
• Valve Body Material: Teflon-coated, Nickel-plated Brass, Brass
• Accessories: AM-1-025RP/U
• Connection Size: 3/4 in
• Connection Type: NPT
• Nominal Diameter: DN20
• Number of Connections: 4
• UPC: 085267973182
• Country of Origin: MX
• Category: Water Heater Tank Mixers
